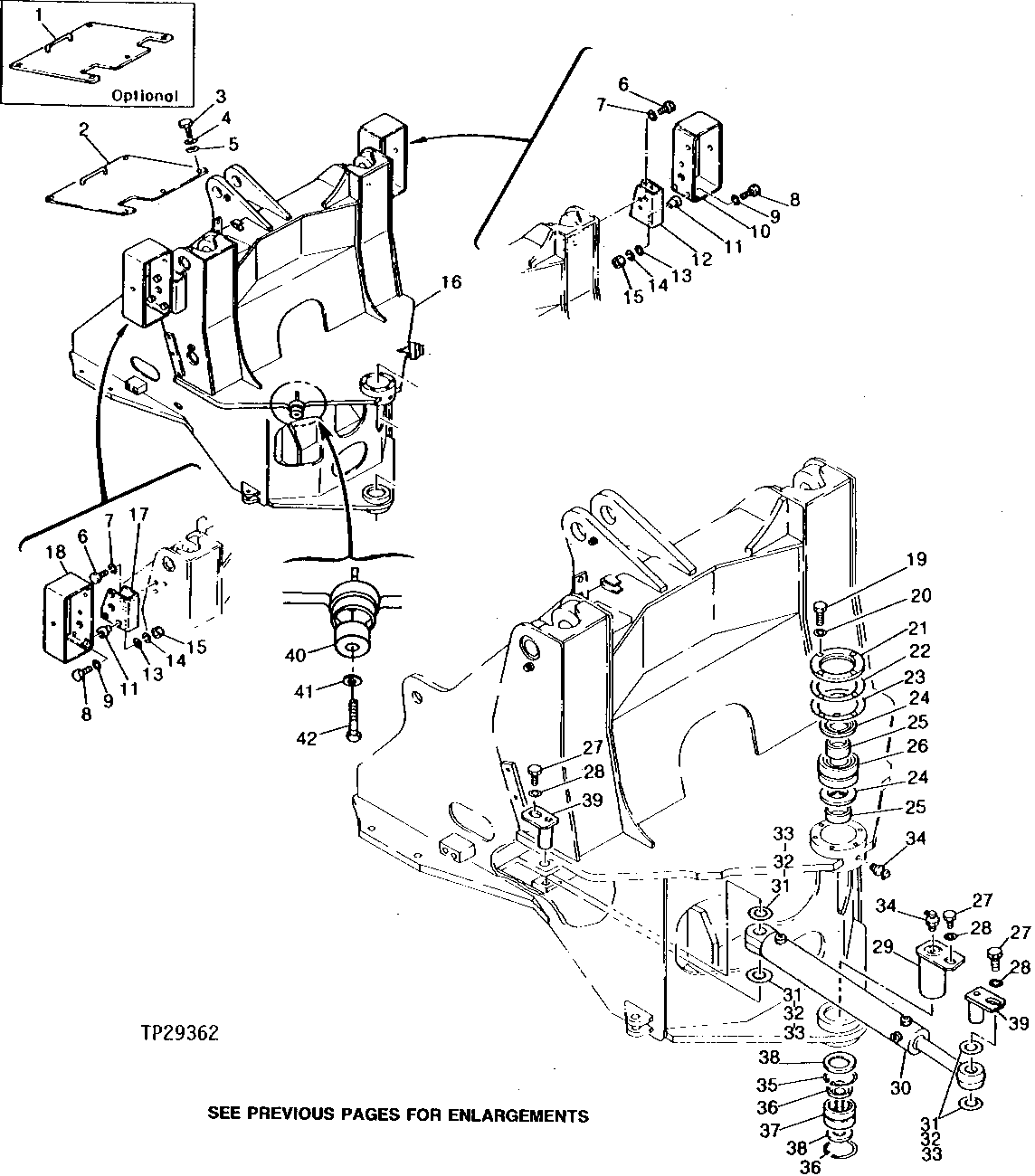

LOADER FRAME, ACCESS COVER AND FRONT LIGHT BRACKETS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T108210	1	Cover	ACCESS
2	AT121696	1	Cover	ACCESS
3	19M7402	5	Cap Screw	M10 X 25
4	12M7066	5	Lock Washer	10 mm
5	24M7028	5	Washer	10.500 X 20 X 2 mm
6	19M7872	6	Cap Screw	M12 X 25
7	12H301	6	Lock Washer	1/2"
8	19M8008	6	Cap Screw	M8 X 35
9	24M7055	6	Washer	8.400 X 16 X 1.600 mm
10	AT121748	1	Bracket	-
11	AT121636	6	Isolator	-
12	AT121750	1	Bracket	-
13	T15940	6	WASHER	(USE IF AVAILABLE), (SUB FOR AT121637)
13	24H1657	1	Washer	21/64" X 1-1/4" X 7/64", (SUB FOR T15940 AND AT121637)
14	12M7065	6	Lock Washer	8 mm
15	14M7273	6	Nut	M8
16	-	1	Part 17	(AT121667 - NO LONGER AVAILABLE)
17	AT121749	1	Bracket	-
18	AT121747	1	Bracket	-
19	19M7403	10	Cap Screw	M12 X 35
20	TH104166	14	Washer	-
21	AT121199	1	Retainer	-
22	AT121411	2	Shim	-
23	AT121410	3	Shim	-
24	AT121276	2	Seal	-
25	AT121283	2	Sleeve	-
26	AT121272	1	TAPERED ROLLER BEARING	-
27	19M8017	5	Cap Screw	M12 X 20
28	AT121286	5	Washer	-
29	AT121694	1	Pin	-
30	AT121335	2	Cylinder	-
31	AT121292	8	Washer	-
32	N100129	4	Washer	(SUB FOR AT121293)
33	AT121299	4	Washer	-
34	TH100075	2	LUBRICATION FITTING	(USE IF AVAILABLE)
34	T116334	2	Lubrication Fitting	(SUB FOR TH100075)
35	40M1873	2	Snap Ring	(SUB FOR AT121761)
36	AT121275	2	Seal	-
37	AT121273	1	Needle Bearing	-
38	AT121284	1	Plate	-
39	AT121695	4	Pin	STEERING CYLINDER
40	AT146219	2	Bumper	-
41	24M7028	2	Washer	10.500 X 20 X 2 mm
42	19M8761	2	Screw	M10 X 22
