Открытый узел

HYDROSTATIC PUMP ROTARY GROUP

HYDROSTATIC PUMP ROTARY GROUP

HYDROSTATIC PUMP ROTARY GROUP

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

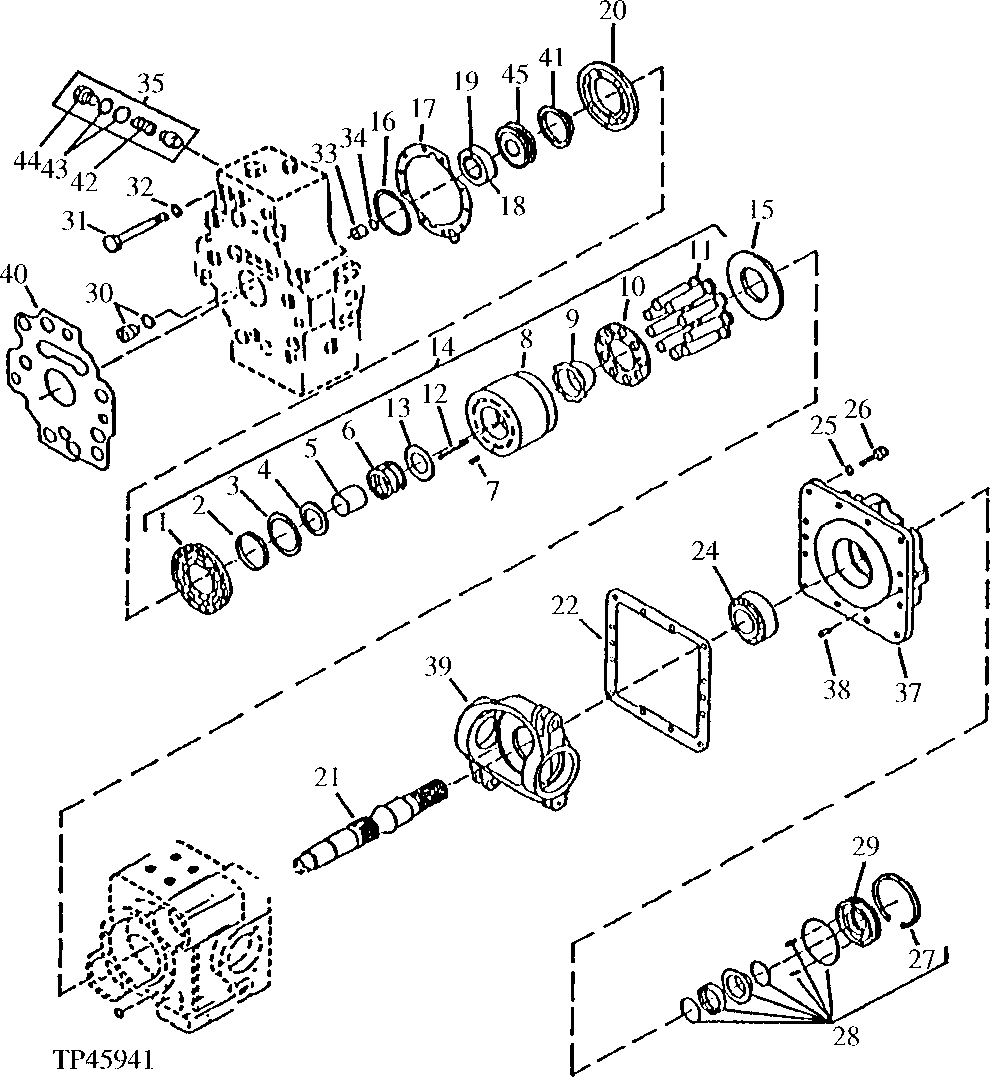

HYDROSTATIC PUMP ROTARY GROUP

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	N195749	1	PLATE	-
2	H63277	1	RING	(<service-part>AT123220</service-part> KIT INCLUDES ALL (B) PARTS) NLA
3	H63276	1	SNAP RING	(<service-part>AT123220</service-part> KIT INCLUDES ALL (B) PARTS)
4	H63275	1	WASHER	(<service-part>AT123220</service-part> KIT INCLUDES ALL (B) PARTS)
5	H63274	1	BUSHING	(<service-part>AT123220</service-part> KIT INCLUDES ALL (B) PARTS)
6	T54934	1	COMPRESSION SPRING	(<service-part>AT123220</service-part> KIT INCLUDES ALL (B) PARTS)
7	H63270	1	PIN	(<service-part>AT123220</service-part> KIT INCLUDES ALL (B) PARTS)
8	AT52189	1	CYLINDER BLOCK	-
9	H63268	1	GUIDE	-
10	H63266	1	RETAINER	-
11	AT52820	9	PISTON	-
12	T54193	6	COMPRESSION SPRING	(<service-part>AT123220</service-part> KIT INCLUDES ALL (B) PARTS)
13	H63272	1	WASHER	(<service-part>AT123220</service-part> KIT INCLUDES ALL (B) PARTS)
14	AT123199	1	Kit	-
15	H63251	1	THRUST WASHER	-
16	40M1829	2	Snap Ring	-
17	T54911	1	GASKET	-
18	-	1	Part 18	(<service-part>AT123198</service-part> KIT NLA ORDER <service-part >4260802</service-part>, <service-part>4260803</service-part>, AND <service-part >4260837</service-part>)
19	-	1	Part 19	(<service-part>AT123198</service-part> KIT NLA ORDER <service-part >4260802</service-part>, <service-part>4260803</service-part>, AND <service-part >4260837</service-part>)
20	T54917	1	PLATE	-
21	AT123149	1	Shaft	-
22	T140794	1	GASKET	(SUB FOR T54916)
24	AT52823	1	TAPERED ROLLER BEARING	(SUB FOR JD7224 AND JD7270)
25	R63845	14	Washer	-
26	19H3239	12	Cap Screw	3/8" X 1-1/4"
27	H63242	1	SNAP RING	-
28	AT52822	1	SEAL KIT	-
29	AH63279	1	RETAINER	-
30	AH63288	2	CHECK VALVE	(SUB FOR AT123167)
31	AT123162	8	Bolt	-
32	R63845	9	Washer	-
33	AT121042	1	Coupling	-
34	T40308	1	O-Ring	-
35	AT123201	1	Kit	-
37	H63244	1	COVER	-
38	H63245	1	PIN	-
39	H63247	1	SWASH PLATE	-
40	3107277	1	Gasket	(SUB FOR AT123170 THIS APPLICATION)
41	AT123151	1	Plate	-
42	T54932	1	SPRING	-
43	AT54407	1	Shim Kit	-
44	T64769	1	Drain Plug	-
45	AT123150	1	Spacer	(<service-part>AT123220</service-part> KIT INCLUDES ALL (B) PARTS)
