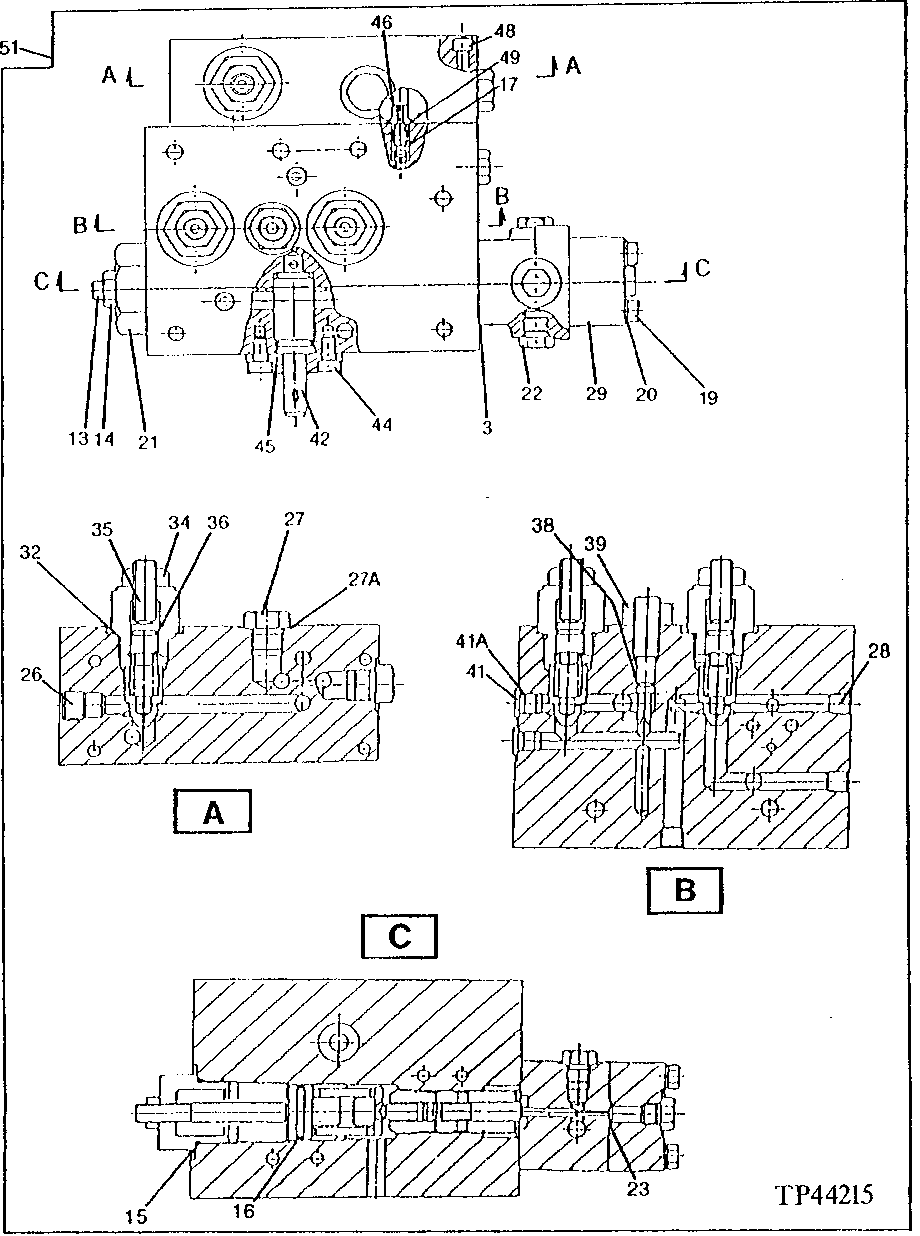

HYDROSTATIC PUMP PRESSURE OVERRIDE VALVE (000637 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
3	-	1	Part 1	(<service-part>AT315245</service-part> SEAL KIT INCLUDES ALL (A) PARTS (SUB FOR <service-part>AT123195</service-part >))
13	AT123052	1	Screw	-
14	14H774	1	Nut	3/8"
15	U17409	1	O-Ring	(SUB FOR AT121227)
16	-	1	Part 5	(<service-part>AT315245</service-part> SEAL KIT INCLUDES ALL (A) PARTS (SUB FOR <service-part>AT123195</service-part >))
17	-	1	Part 6	(<service-part>AT123194</service-part> CHECK VALVE KIT INCLUDES ALL (B) PARTS)
18	-	1	Part 7	(<service-part>AT123194</service-part> CHECK VALVE KIT INCLUDES ALL (B) PARTS)
19	19H2151	4	Cap Screw	1/4" X 3"
20	AT121051	4	Washer	-
21	AT123135	1	Fitting Plug	-
22	R51031	4	Fitting	-
23	-	1	Part 12	(<service-part>AT315245</service-part> SEAL KIT INCLUDES ALL (A) PARTS (SUB FOR <service-part>AT123195</service-part >))
26	94-2011	1	FITTING PLUG	(SUB FOR TH100434)
27	R27218	2	Fitting Plug	-
32	R26906	3	O-Ring	-
34	TH104196	3	Nut	-
35	22M7120	3	Set Screw	M10 X 30
36	A3917R	3	O-Ring	-
38	TH102655	1	O-Ring	-
39	14M7357	1	Nut	M12
41	R27216	2	DRAIN PLUG	-
42	AT123138	1	Spool	-
44	TH100738	2	Bolt	M6 X 12
45	CH11570	1	O-Ring	13.800 X 2.400 mm (0.543" X 3/32"), (SUB FOR AT123487)
46	-	1	Part 27	-
48	-	4	Part 28	( PT4766 NO LONGER AVAILABLE)
49	-	5	Part 29	(<service-part>AT123194</service-part> CHECK VALVE KIT INCLUDES ALL (B) PARTS)
51	AT123271	1	Valve	(SUB FOR AT123205)
27A	R26906	2	O-Ring	-
41A	T19963	2	O-Ring	-

HYDROSTATIC PUMP PRESSURE OVERRIDE VALVE (000637 - )
