Открытый узел

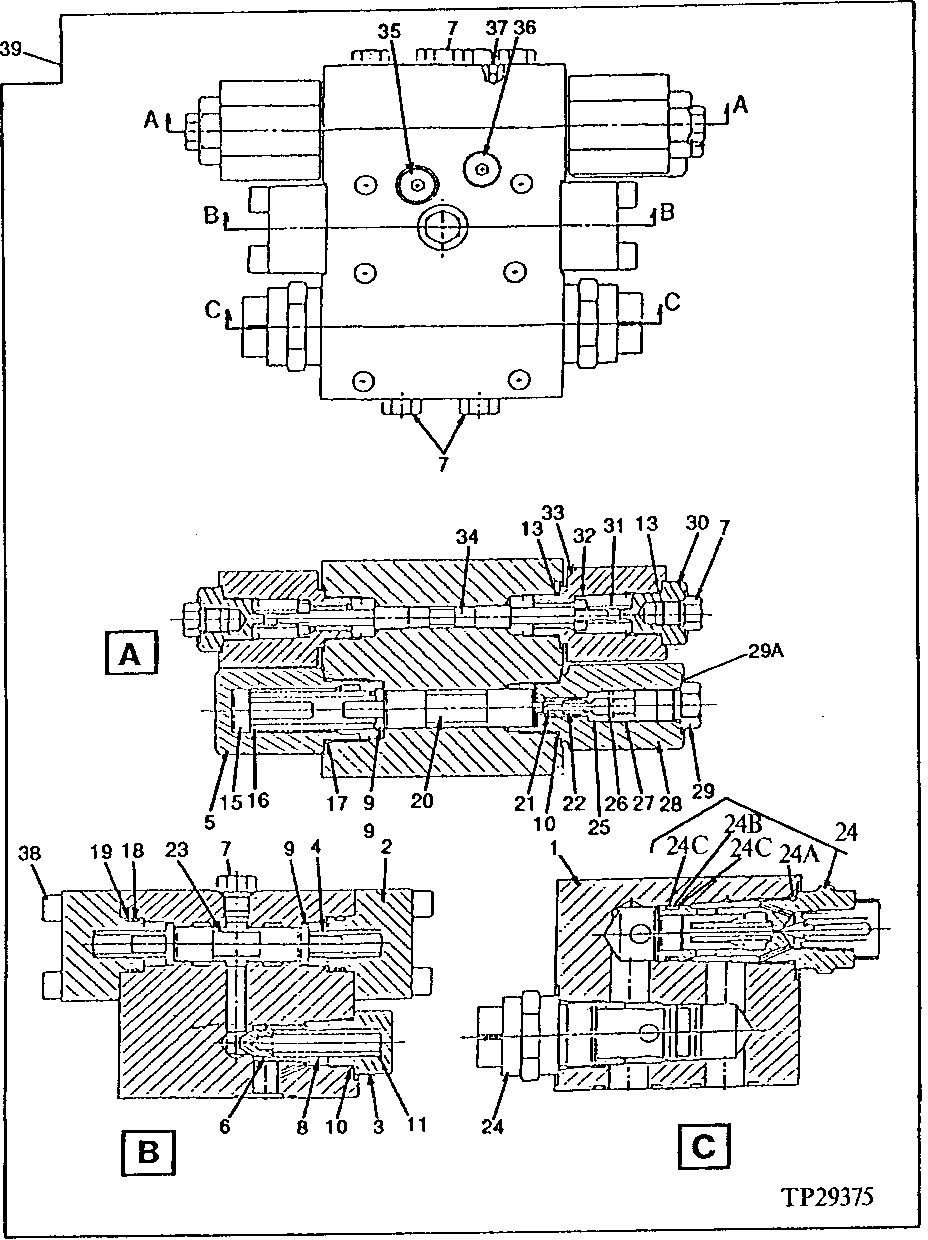

HYDROSTATIC PUMP HIGH PRESSURE MANIFOLD ASSEMBLY

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
3	H63221	1	FITTING	(<service-part>AT123196</service-part> CHARGE RELIEF KIT INCLUDES ALL (B) PARTS)
6	AT123273	1	Valve Spool	(<service-part>AT123196</service-part> CHARGE RELIEF KIT INCLUDES ALL (B) PARTS)
7	R51031	10	Fitting	ALSO ORDER (10) R28782
7	R28782	10	O-Ring	-
8	H89241	1	Spring	(<service-part>AT123196</service-part> CHARGE RELIEF KIT INCLUDES ALL (B) PARTS)
10	R26906	2	O-Ring	(<service-part>AT123197</service-part> SEAL KIT INCLUDES ALL (A) PARTS) (<service-part>AT123196</service-part> CHARGE RELIEF KIT INCLUDES ALL (B) PARTS)
11	AT123145	1	Disk	(<service-part>AT123196</service-part> CHARGE RELIEF KIT INCLUDES ALL (B) PARTS)
13	R26375	4	O-Ring	(<service-part>AT123197</service-part> SEAL KIT INCLUDES ALL (A) PARTS) (SUB FOR U10778)
17	U12547	1	O-Ring	(<service-part>AT123197</service-part> SEAL KIT INCLUDES ALL (A) PARTS)
18	H63289	2	O-Ring	(<service-part>AT123197</service-part> SEAL KIT INCLUDES ALL (A) PARTS)
19	H63288	2	Ring	(<service-part>AT123197</service-part> SEAL KIT INCLUDES ALL (A) PARTS)
24	AT125671	2	KIT	(SUB FOR AT74522)HIGH PRESSURE RELIEF
29	R27218	1	Fitting Plug	-
35	AT49216	1	Fitting Plug	-
35	T70177	1	O-Ring	-
36	R28782	1	O-Ring	-
36	X4HP5ON-S	1	Fitting Plug	(SUB FOR X05HP-4, AN122518)
37	15H560	3	Pipe Plug	1/16"
38	19M8274	8	Screw	M8 X 35
39	AT123270	1	Relief Valve	(SUB FOR AT121037)
24A	U17409	1	O-Ring	(<service-part>AH63292</service-part> SEAL KIT INCLUDES ALL (C) PARTS)
24B	H63289	1	O-Ring	(<service-part>AH63292</service-part> SEAL KIT INCLUDES ALL (C) PARTS)
24C	H63288	2	Ring	(<service-part>AH63292</service-part> SEAL KIT INCLUDES ALL (C) PARTS)
29A	R26906	1	O-Ring	-

HYDROSTATIC PUMP HIGH PRESSURE MANIFOLD ASSEMBLY

Нет текстового описания
