Hydrostatic Control Hydraulic Hoses (Manifold to Pump) (000877 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
41	38H1022	1	Tee Fitting	-
42	AT121656	1	Pipe Bushing	-
43	38H1022	1	Tee Fitting	-
44	-	2	Part 6	(WHEN AT121304 IS NO LONGER AVAILABLE, SUB 38H1159 AND R76729)
45	38H1425	1	Tee Fitting	-
46	T77814	5	O-Ring	(SUB FOR AT121261)
48	AT122598	1	Manifold	-
51	AT121502	1	Solenoid Valve	(SUB AT187497)
51	AT187497	1	Solenoid Valve	-
53	AT121480	1	Regulator	PRESSURE
54	AT123410	1	Pressure Switch	(SUB FOR AT121459)(HYDROSTATIC CHARGE PRESSURE)
55	R76729	1	O-Ring	-
56	U44115	1	Fitting Plug	-
57	-	4	Part 19	(WHEN AT121304 IS NO LONGER AVAILABLE, SUB 38H1159 AND R76729)
58	T77814	4	O-Ring	(SUB FOR AT121261)
59	-	1	Part 22	4187189 NO LONGER AVAILABLE, (SUB 38H1003 AND R28782)
61	AT121640	1	Hydraulic Hose	-
91	AT122599	1	Hydraulic Hose	-
92	AT122599	1	Hydraulic Hose	(SUB FOR AT122600)
93	AT122601	1	Hydraulic Hose	-
94	AT122602	1	Hydraulic Hose	-
41A	R76729	1	O-Ring	-
42A	R26906	1	O-Ring	-
44A	R76729	1	O-Ring	-
45A	R26448	1	O-Ring	-
56A	R76729	1	O-Ring	-
57A	R76729	1	O-Ring	-
59A	R76729	1	O-Ring	-

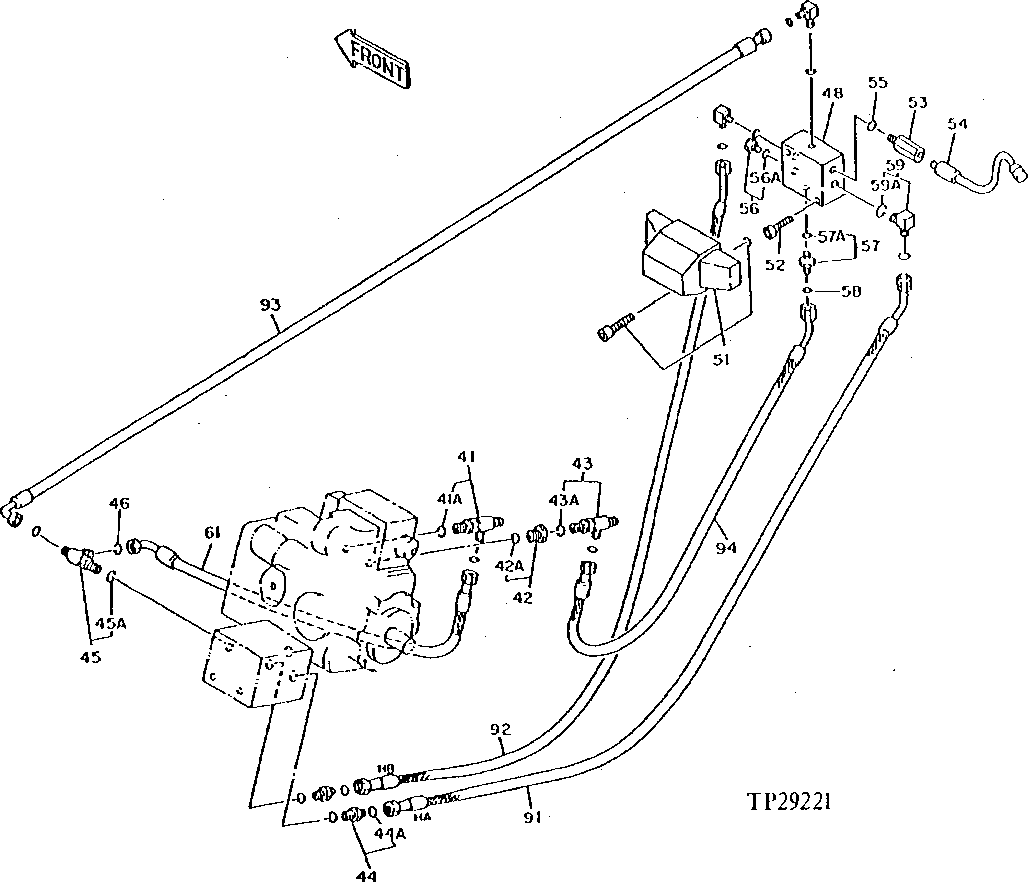

Hydrostatic Control Hydraulic Hoses (Manifold to Pump) (000877 - )

Нет текстового описания
