Hydrostatic Control Hydraulic Hoses (Manifold to Pump) ( - 000876)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
41	38H1425	1	Tee Fitting	(SUB FOR AT121655)
42	38H1022	1	Tee Fitting	(SUB FOR AT121426)
44	-	2	Part 5	(WHEN AT121304 IS NO LONGER AVAILABLE, SUB 38H1159 AND R76729)
46	T77814	6	O-Ring	(SUB FOR AT121261)
47	AT121656	1	Pipe Bushing	-
48	38H1022	1	Tee Fitting	(SUB FOR AT121426)
49	AT121196	1	Manifold	-
50	19M8507	2	Screw	M8 X 90
51	AT121502	1	Solenoid Valve	(SUB AT187497)(NEUTRAL DUMP)
51	AT187497	1	Solenoid Valve	(NEUTRAL DUMP)
53	AT121480	1	Regulator	PRESSURE
54	AT123410	1	Pressure Switch	(SUB FOR AT121459)(HYDROSTATIC CHARGE PRESSURE)
55	R76729	1	O-Ring	-
56	AT121267	1	Plug	-
57	-	4	Part 21	((WHEN AT121304 IS NO LONGER AVAILABLE, SUB 38H1159 AND R76729)
58	T77814	4	O-Ring	(SUB FOR AT121261)
59	AT121646	1	Hydraulic Hose	-
60	AT121640	1	Hydraulic Hose	-
65	AT121647	1	Hose	9/16" X 1200 mm (47-1/4") X 9/16"
66	AT102427	1	Hydraulic Hose	9/16" X 1074 mm (42-1/4") X 9/16", (SUB FOR AT121645)
67	XCL-19	1	Hose Clamp	(SUB FOR TH108459 OR 4192035)
68	19M8451	1	Cap Screw	M10 X 14
69	12M7066	1	Lock Washer	10 mm
70	AT102427	2	Hydraulic Hose	9/16" X 1074 mm (42-1/4") X 9/16", (SUB FOR AT121651)
86	H77698	2	Tie Band	-
41A	R26448	1	O-Ring	-
42A	R76729	1	O-Ring	-
44A	R76729	1	O-Ring	-
47A	R26906	1	O-Ring	-
48A	R76729	1	O-Ring	-
56A	R76729	1	O-Ring	-
57A	R76729	1	O-Ring	-

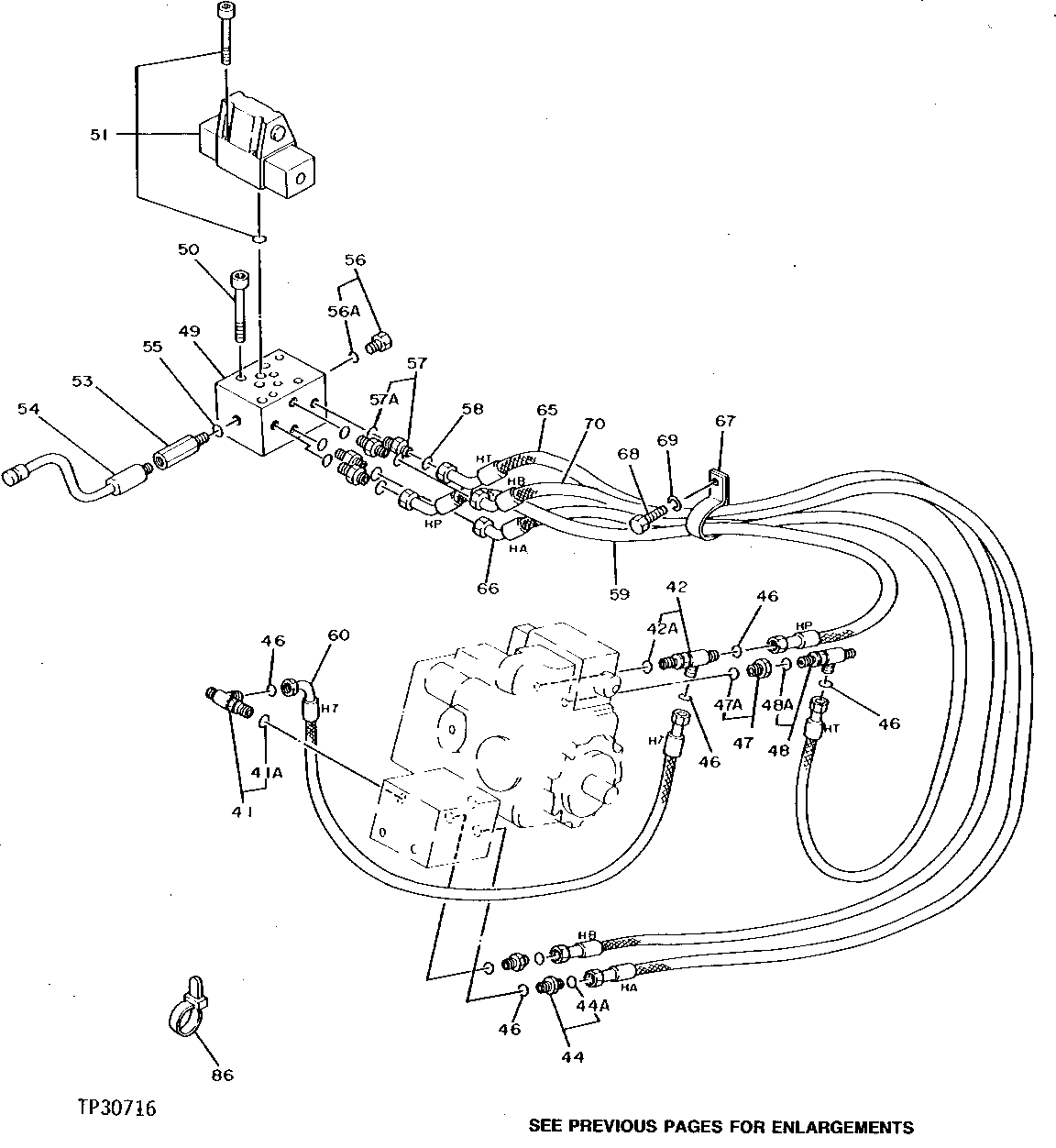

Hydrostatic Control Hydraulic Hoses (Manifold to Pump) ( - 000876)
