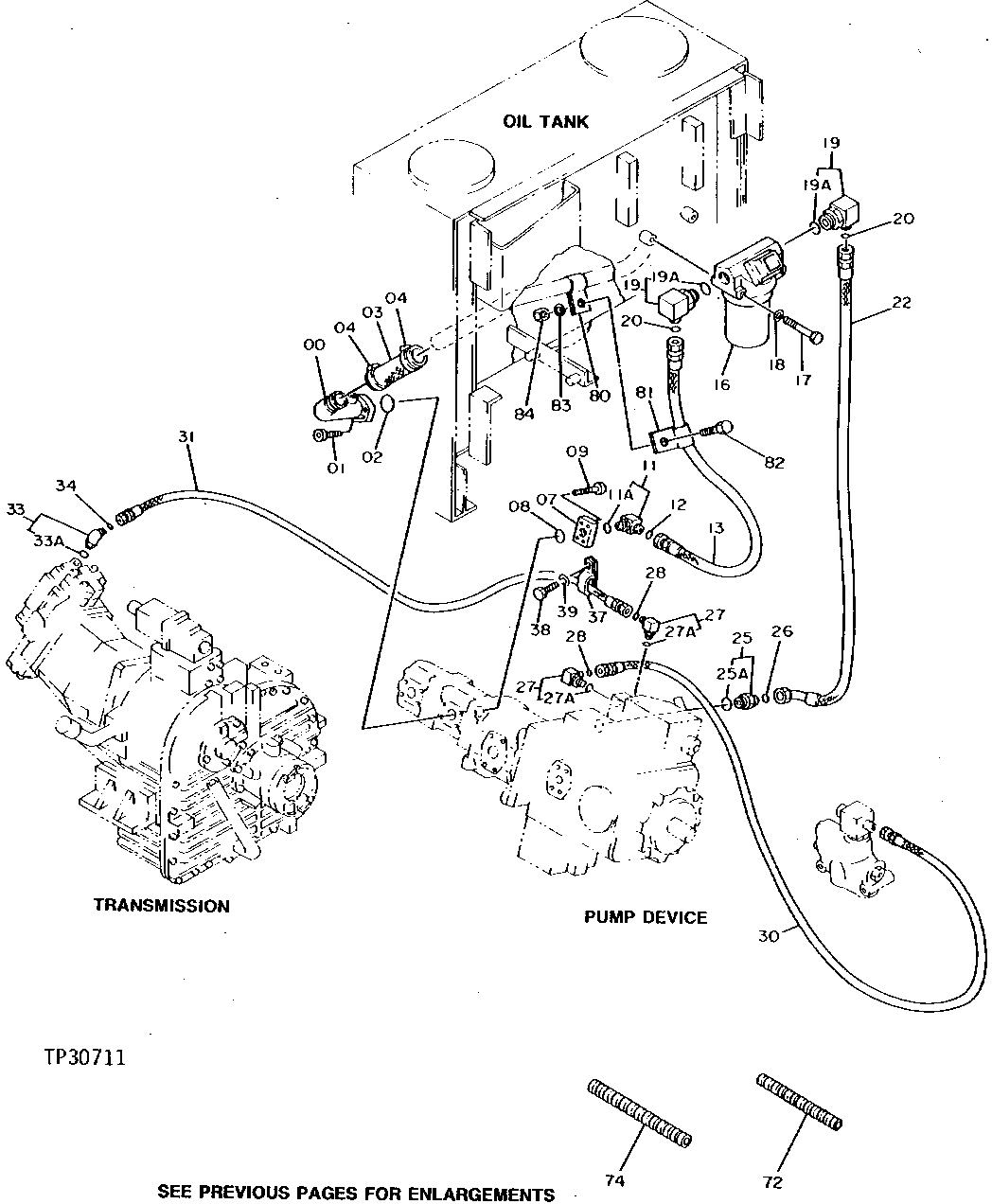

HYDROSTATIC CONTROL HYDRAULIC HOSES AND OIL FILTER ( - 000876)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	AT121704	1	Pipe	-
1	19M8334	4	Screw	M6 X 30
2	AT264324	1	O-Ring	(SUB FOR TH100044)(USE IF AVAILABLE)
2	AT264324	1	O-Ring	(SUB FOR T32587, TH100044)
3	AT122226	1	Hose	(CUT TO LENGTH), (SUB FOR TH102959)
4	AT121266	2	Clamp	-
7	AT121437	1	Junction Block	-
8	TH103950	1	O-Ring	-
9	19M8627	4	Screw	M6 X 20, (SUB FOR TH105693)
11	38H1005	1	Elbow Fitting	(SUB FOR AT121309)
12	T77857	1	O-Ring	(SUB FOR TH108323)
13	AT121384	1	Hydraulic Hose	13/16" X 850 mm (33-1/2") X 13/16"
16	AT121463	1	Filter	-
17	J901095	2	Bolt	(SUB FOR AT121865)
18	12M7066	2	Lock Washer	10 mm
19	AT121319	1	Elbow Fitting	-
20	T77857	2	O-Ring	(SUB FOR TH108323)
22	AT72030	1	HYDRAULIC HOSE - FABRICATE	13/16" X 694 mm (27-1/4") X 13/16", (SUB FOR AT121435)
25	38H1175	1	Adapter Fitting	(SUB FOR AT121464)
26	T77857	1	O-Ring	(SUB FOR TH108323)
27	-	1	Part 24	4187189 NO LONGER AVAILABLE, (SUB 38H1003 AND R28782)
28	T77814	2	O-Ring	(SUB FOR AT121261)
30	AT121491	1	Hydraulic Hose	-
31	AT121604	1	Hydraulic Hose	-
33	38H1168	1	Adapter Fitting	(SUB FOR AT121467 AND AT122597)
34	T77814	1	O-Ring	(SUB FOR AT121261)
37	T28949	1	Clamp	(SUB FOR TH108460 OR 4190273)
38	19M8451	1	Cap Screw	M10 X 14
39	12M7066	1	Lock Washer	10 mm
72	E90991	5	Hose Guard	(SUB FOR TH106022, 4133527 OR 4327293)(CUT TO 600MM LENGTH)
74	-	5	Part 36	(MAKE FROM XHG-075 BULK MATERIAL, CUT TO LENGTH), (SUB FOR TH100996 OR AT138222)
80	AT121321	1	Hose Clamp	-
81	T24432	1	Clamp	(SUB FOR TH108595)
82	19M7938	1	Cap Screw	M10 X 20
83	12M7066	1	Lock Washer	10 mm
84	14M7274	1	Nut	M10
11A	R26375	1	O-Ring	(SUB FOR U10778)(USE WITH AT121309 ELBOW)
19A	R29936	1	O-Ring	-
25A	U12547	1	O-Ring	-
27A	R76729	1	O-Ring	-
33A	R26448	1	O-Ring	-

HYDROSTATIC CONTROL HYDRAULIC HOSES AND OIL FILTER ( - 000876)
