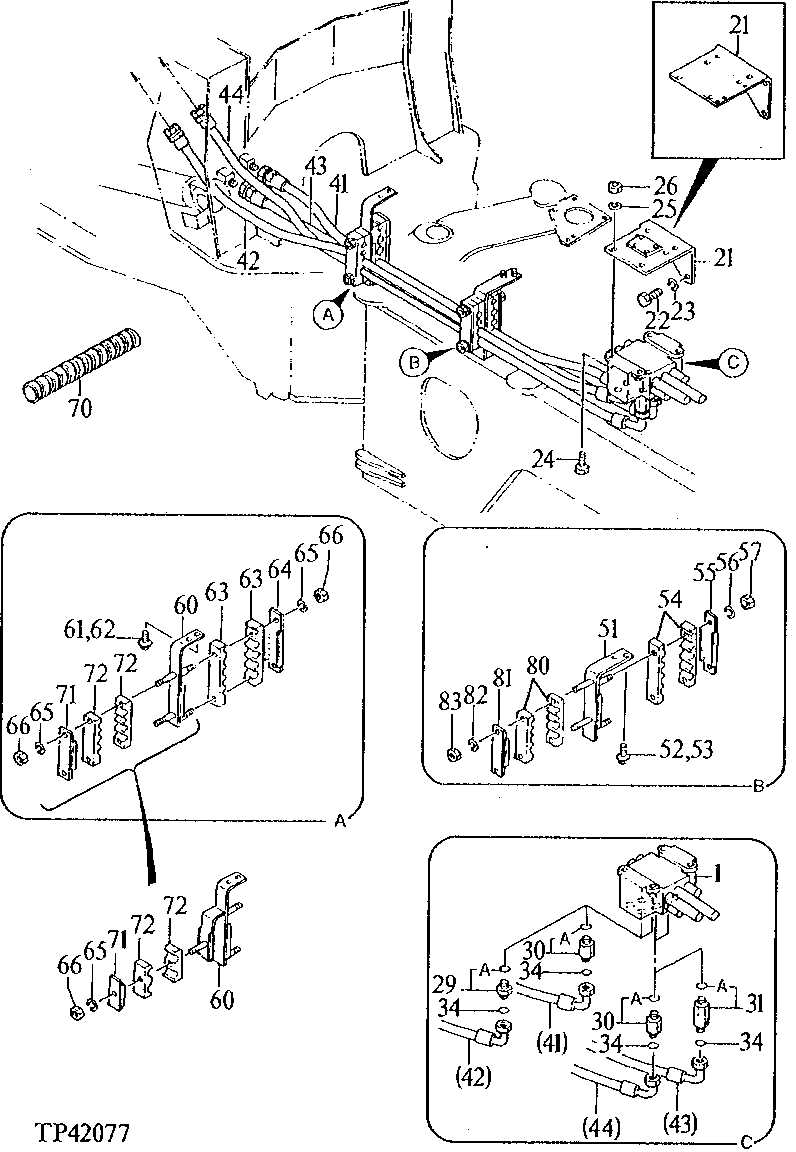

HYDRAULIC VALVE TO FRONT FRAME PLUMBING (000477 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT121428	1	Control Valve	(2-SPOOL)
1	AT121336	1	Control Valve	(3-SPOOL)
21	AT122615	1	Bracket	-
21	AT121203	1	Bracket	-
22	19M7872	3	Cap Screw	M12 X 25
23	12H301	3	Lock Washer	1/2"
24	19M7496	4	Cap Screw	M12 X 45
25	12H301	4	Lock Washer	1/2"
26	14M7275	4	Nut	M12
29	AT121315	1	Adapter Fitting	-
30	AT121391	1	Adapter Fitting	-
31	AT121392	1	Adapter Fitting	-
34	T77858	4	O-Ring	-
41	AT122942	1	Hydraulic Hose	-
42	AT122951	1	Hydraulic Hose	-
43	AT122942	1	Hydraulic Hose	-
44	AT122939	1	Hydraulic Hose	-
51	AT122943	1	Bracket	-
52	19M7872	2	Cap Screw	M12 X 25
53	12H301	2	Lock Washer	1/2"
54	AT121644	2	Clamp	-
55	9730788	1	Bracket	(SUB FOR AT121796 OR 9730754)
56	12M7066	2	Lock Washer	10 mm
57	14M7274	2	Nut	M10
60	AT122953	1	Bracket	-
60	AT123111	1	Bracket	-
61	19M7872	2	Cap Screw	M12 X 25
62	12H301	2	Lock Washer	1/2"
63	AT121644	2	Clamp	-
64	9730788	1	Bracket	(SUB FOR AT121796 OR 9730754)
65	12M7066	3	Lock Washer	10 mm
65	12M7066	4	Lock Washer	10 mm
66	14M7274	3	Nut	M10
66	14M7274	4	Nut	M10
70	-	5	Part 38	(MAKE FROM XHG-075 BULK MATERIAL, CUT TO LENGTH), (SUB FOR TH100996 OR AT138222)
71	AT122937	1	Plate	-
71	AT122945	1	Plate	-
72	AT122946	2	Clamp	-
72	AT123112	2	Clamp	-
80	AT122938	2	Clamp	-
81	AT122937	1	Plate	-
82	12M7066	2	Lock Washer	10 mm
83	14M7274	2	Nut	M10
29A	U17409	1	O-Ring	-
30A	U17409	1	O-Ring	-
31A	U17409	1	O-Ring	-

HYDRAULIC VALVE TO FRONT FRAME PLUMBING (000477 - )
