Heater Core and Lines (Heater Only) ( - 000916)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	AT56442	1	HEATER	-
1	AT59216	1	CONTROL	-
2	AT69645	1	HAND OPERATED VALVE	-
3	AL58295	2	Knob	(SUB FOR AR69370 ) (SUB FOR AR49969, THIS APPLICATION)
4	E46066	2	Nut	-
5	R44165	2	Lock Nut	-
6	AH84588	1	SWITCH	-
10	AR90771	1	Resistor	-
12	R72659	1	Clamp	(SUB FOR TH108594 OR 4235654)
13	R50454	1	Clamp	(SUB FOR TH109445 OR 4192034)
14	TH101079	2	Adapter Fitting	-
15	AT121979	2	Spacer	-
16	T60811	1	Bulk Hose	-
17	R45847	1	Hose	-
21	AT121718	1	Bracket	-
22	AT121368	1	Strap	-
23	AT121369	1	Strap	-
45	AT122006	1	Radiator Hose	-
45	T60811	1	Bulk Hose	-
46	R45847	1	Hose	-
47	AT122045	1	Radiator Hose	-
48	T60811	1	Bulk Hose	-
48	-	1	Part 22	( AT122005 NO LONGER AVAILABLE)
49	AT121979	1	Spacer	-
50	AA34965	8	Hose Clamp	-
50	AA34965	12	Hose Clamp	-
51	R72659	1	Clamp	(SUB FOR TH108594 OR 4235654)
57	-	4	Part 28	(MAKE FROM XHG-075 BULK MATERIAL, CUT TO LENGTH), (SUB FOR AT138222)
67	TH106275	2	Grommet	-
68	AT121399	1	Bushing	-
78	21M7265	2	Screw	M5 X 12
79	12M7064	2	Lock Washer	5 mm
83	J900614	7	Bolt	(SUB FOR TH104056)
87	19M7162	1	Cap Screw	M8 X 16
90	19M8402	4	Cap Screw	M8 X 65
92	12M7065	5	Lock Washer	8 mm
93	14M7273	4	Nut	M8
94	24M7055	1	Washer	8.400 X 16 X 1.600 mm
96	AT35831	2	Drain Valve	-
97	15H590	1	Pipe Bushing	1/2"

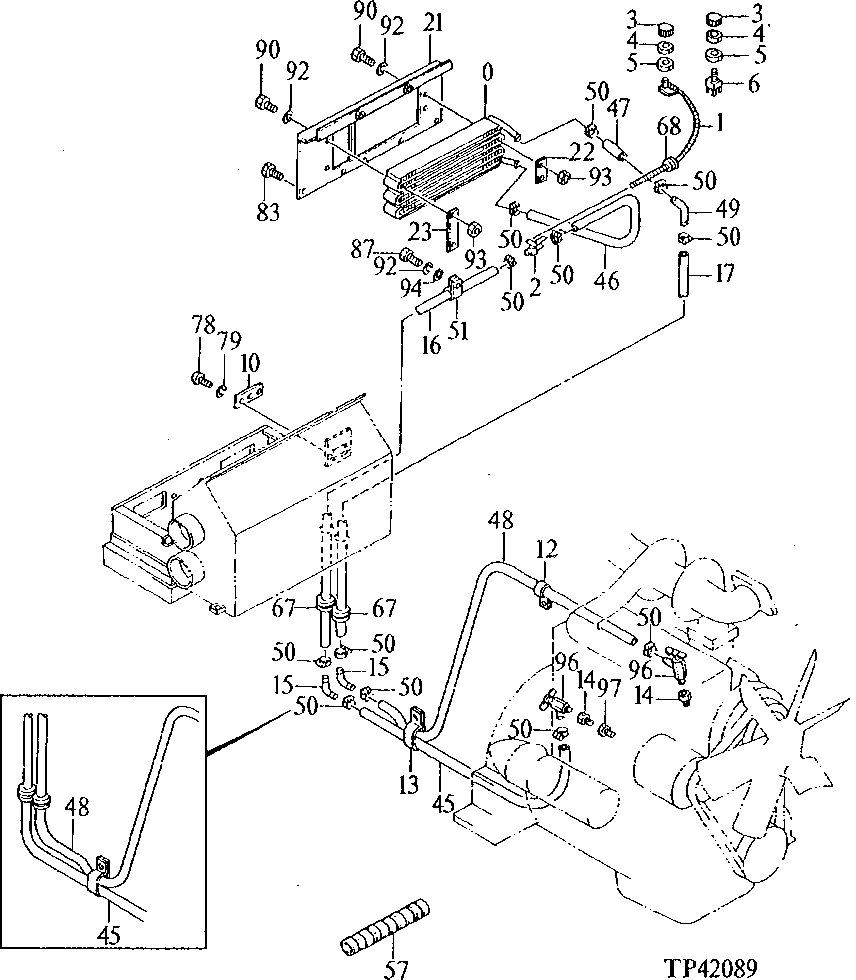

Heater Core and Lines (Heater Only) ( - 000916)

Нет текстового описания
