Front Lights, Tail Lights, and Turn Signals (Single Battery)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	AT135486	1	Floodlamp	(L.H.), (SUB FOR AT79038)
1	AT135486	1	Floodlamp	(R.H.), (SUB FOR AT79038)
1	AT130104	1	Bulb	(SUB FOR Z26998)
2	AT85786	2	TAIL LAMP	-
3	AT103250	2	Tail Lamp	(TURN SIGNAL)
3	AD2062R	1	Bulb	-
3	T108398	2	Lens	-
4	AT85785	2	LAMP	(INCLUDES AD2062R BULB, AT75345 LENS HARDWARE KIT AND T104010 LENS)
5	14H856	2	Nut	1/2"
7	AT78534	1	Travel Warning Alarm	(BACKUP)
17	TY6127	1	DRY CHARGED BATTERY	(SUB FOR TY6095, THIS APPLICATION)( TY6127 USE IF AVAILABLE) ( SUB TY21767)
17	TY21767	1	DRY CHARGED BATTERY	(12 VOLT, BCI 31, 750 CCA)
18	T121288	1	Angle	(SUB FOR T79470 OR AT121771)
19	T79471	2	Hook Bolt	(SUB FOR AT121357, THIS APPLICATION)
20	14M7273	2	Nut	M8
21	12M7065	2	Lock Washer	8 mm
23	AT123409	2	Washer	-
24	AT121446	1	Bracket	-
25	19M8451	2	Cap Screw	M10 X 14
26	12M7066	2	Lock Washer	10 mm
29	19M7296	2	Cap Screw	M8 X 100
30	12M7065	2	Lock Washer	8 mm
31	24M7055	2	Washer	8.400 X 16 X 1.600 mm
34	14M7272	8	Nut	M6
35	12M7006	8	Lock Washer	6 mm
38	14M7275	2	Nut	M12
39	12H301	2	Lock Washer	1/2"
40	AT123408	2	Nut	-
41	AT121287	1	Switch	(RETURN-TO-DIG)
41	AT121287	1	Switch	(BOOM-KICK-OUT)

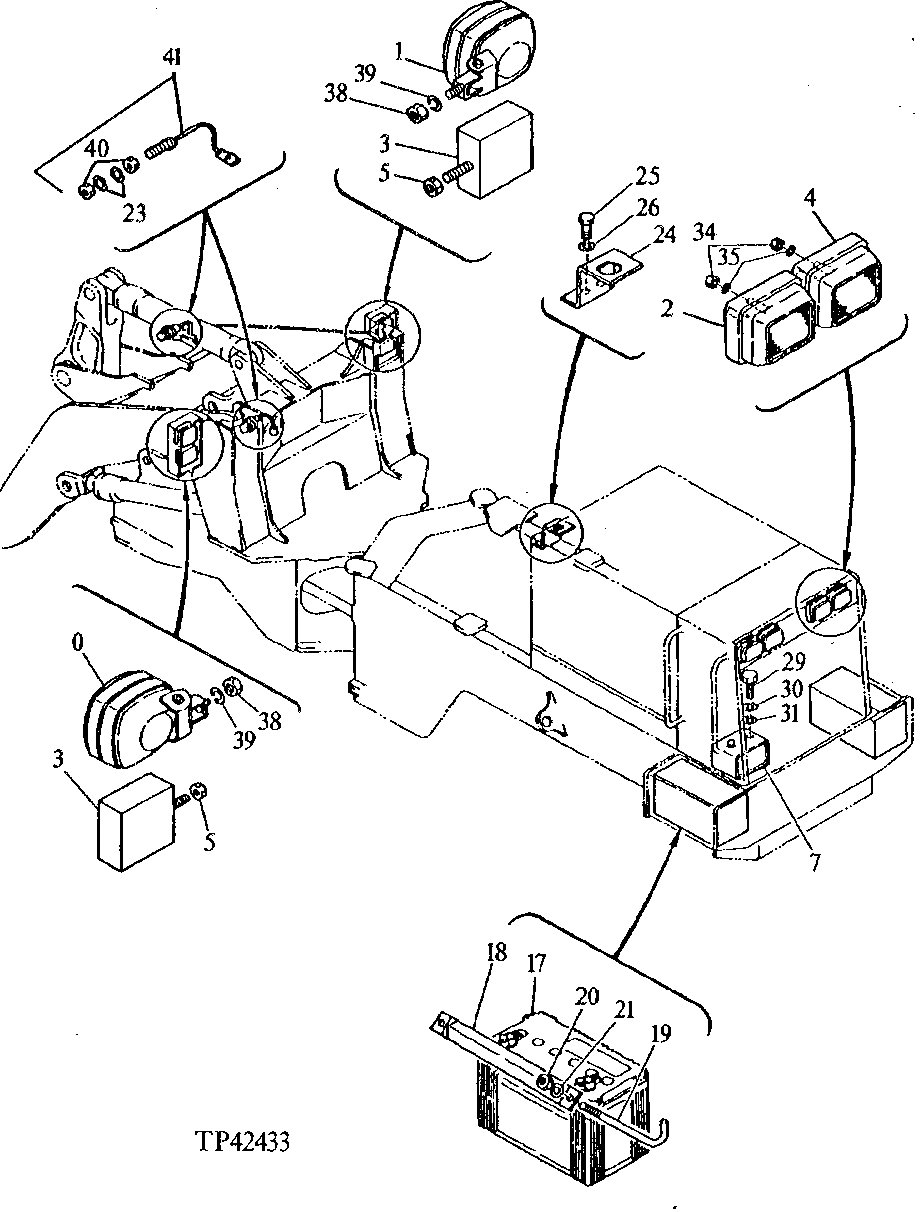

Front Lights, Tail Lights, and Turn Signals (Single Battery)

Нет текстового описания
