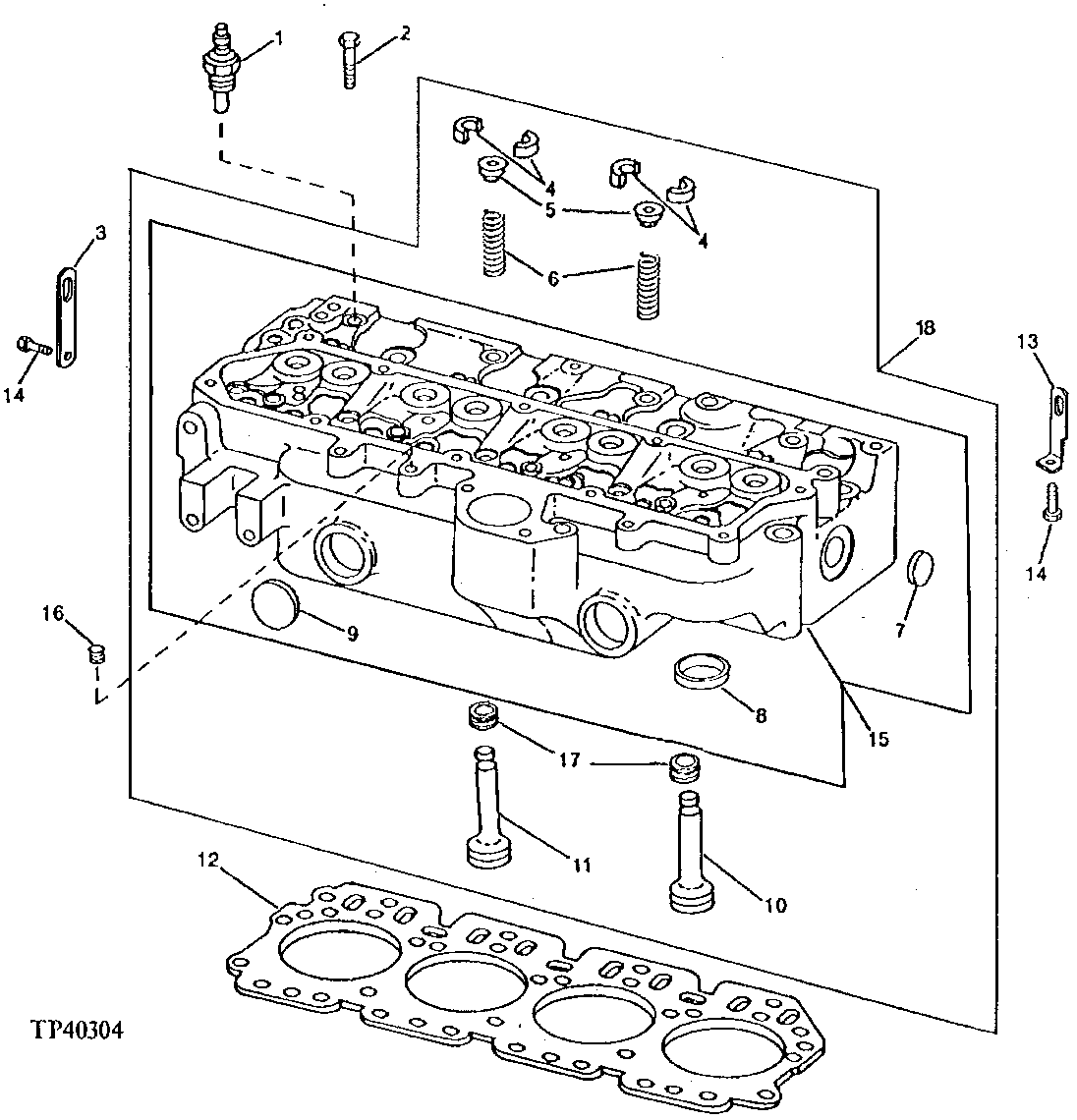

Cylinder Head, Head Gasket And Valves (300000 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT105546	1	Switch	(ENGINE WATER TEMPERATURE STOP WARNING)
2	R85363	18	Cap Screw	(SUB FOR R78558)
3	T26509	1	STRAP	-
4	R91889	16	Retainer	-
5	RE60005	8	Rotator	(SUB FOR RE31323)
6	R26125	8	Spring	-
7	A3910R	2	PLUG	-
8	R98063	4	Valve Seat Insert	STANDARD SIZE INTAKE VALVE
8	R98335	4	Valve Seat Insert	OVERSIZE INTAKE VALVE
8	R85687	4	Valve Seat Insert	STANDARD SIZE EXHAUST VALVE
8	R93910	4	Valve Seat Insert	OVERSIZE EXHAUST VALVE
9	R43409	2	Plug	-
10	R97492	4	Exhaust Valve	.015" OVERSIZE
10	R97493	4	Exhaust Valve	.030" OVERSIZE
10	R90692	4	Exhaust Valve	STANDARD
11	R98062	4	Intake Valve	STANDARD
11	R97490	4	Intake Valve	.015" OVERSIZE
11	R97491	4	Intake Valve	.030" OVERSIZE
12	R125863	1	GASKET	(SUB FOR R92425)
13	R91903	1	STRAP	-
14	19H2472	2	Cap Screw	1/2" X 1"
15	RE48616	1	Cylinder Head	(SUB RE48615 ) (MARKED R111949) (SUB FOR RE36428, MARKED R47628)
16	R104592	1	Pipe Plug	(SUB FOR 15H558, THIS APPLICATION)
17	RE31617	8	Seal	-
18	RE48615	1	Cylinder Head	CONVENIENCE ASSEMBLY, (MARKED R112746, R111949 OR R97628)
18	SE501585	1	Cylinder Head	(MARKED R112746, R111949 OR R97628) (REMAN FOR RE48615)

Cylinder Head, Head Gasket And Valves (300000 - )
