Brake Valve Hydraulics (000817 - 001336)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T77814	4	O-Ring	(SUB FOR AT121261)
2	R26448	7	O-Ring	-
3	AT122905	1	Tee Fitting	-
4	19M8446	2	Screw	M8 X 20
5	AT143279	1	Manual Hydraulic Valve	(SUB FOR AT129604)
5	AT173073	1	Valve	(SUB FOR AT151825)
6	38H1023	1	Tee Fitting	(SUB FOR AT121362)
7	T77613	3	O-Ring	-
8	38H1160	1	Adapter Fitting	-
9	T77613	2	O-Ring	-
10	T77857	1	O-Ring	-
11	AT121419	1	Hose	-
12	T77814	2	O-Ring	(SUB FOR AT121261)
13	R77673	1	O-Ring	(SUB FOR AT121664)
14	38H1051	1	Elbow Fitting	(SUB FOR AT121364)
15	AT121662	1	O-Ring	-
16	38H1319	1	Elbow Fitting	(SUB FOR AT121466)
17	19M7402	2	Cap Screw	M10 X 25
18	12M7066	2	Lock Washer	10 mm
19	AT121340	1	Hydraulic Hose	-
19	AT159350	1	Hydraulic Hose	-
20	T77613	2	O-Ring	-
21	38H1435	1	Elbow Fitting	(SUB FOR AT121365)
22	H77698	10	Tie Band	-
23	-	5	Part 25	(MAKE FROM XHG-075 BULK MATERIAL, CUT TO LENGTH), (SUB FOR TH100996 OR AT138222)
24	AT121490	1	Hydraulic Hose	-
24	AT159351	1	Hydraulic Hose	-
25	38H1160	1	Adapter Fitting	(SUB FOR AT121305)
26	R26375	2	O-Ring	(SUB FOR U10778)
27	X8P5ON-S	1	Fitting Plug	(SUB FOR AT121268 OR X05CP-8)
28	AT123226	1	Hydraulic Hose	-
29	AT123223	1	Oil Line	-
30	AT121382	2	Clamp	-
31	RE29336	1	HYDRAULIC ACCUMULATOR	-
32	R77673	1	O-Ring	(SUB FOR AT121664)
33	38H1170	1	Adapter Fitting	(SUB FOR AT121366)
34	T77613	1	O-Ring	-
35	19M7721	3	Cap Screw	M6 X 65
36	24M7054	3	Washer	6.400 X 12 X 1.600 mm
37	AT81946	1	Self-Operating Valve	-
38	AT116111	1	Adapter Fitting	-
39	AT85009	1	Tee Fitting	-
40	T77613	2	O-Ring	-
41	AT123118	1	Hydraulic Hose	-
42	19M8334	4	Screw	M6 X 30
43	AT121200	1	Flange	-
44	19M8505	4	Screw	M6 X 25
45	TH103950	2	O-Ring	-
46	AT123224	1	Hose	-
47	AT122901	2	Clamp	-
48	38H1435	1	Elbow Fitting	-
49	R26448	1	O-Ring	-
50	T77613	1	O-Ring	-
51	AT123116	1	Hydraulic Hose	-
52	AT123225	1	Hydraulic Hose	-
53	R76729	3	O-Ring	-
54	-	2	Part 57	(WHEN AT121304 IS NO LONGER AVAILABLE, SUB 38H1159 AND R76729)
55	-	1	Part 58	4187189 NO LONGER AVAILABLE, (SUB 38H1003 AND R28782)
56	AT123120	1	Hydraulic Hose	-
57	AT123121	1	Tee Fitting	-
59	AT123119	1	Hydraulic Hose	-
60	R26448	1	O-Ring	-
58A	38H1160	1	Adapter Fitting	-
58B	38H1435	1	Elbow Fitting	-

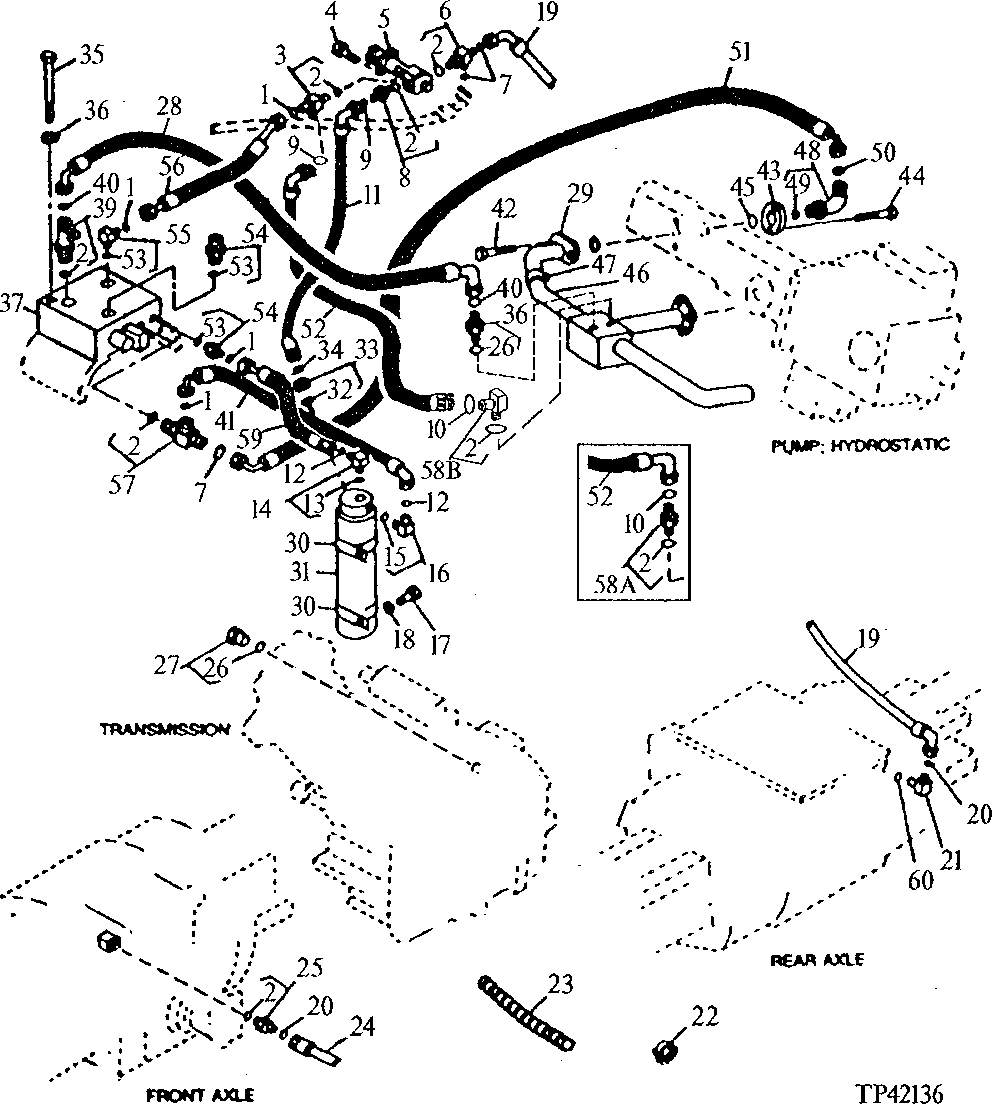

Brake Valve Hydraulics (000817 - 001336)
