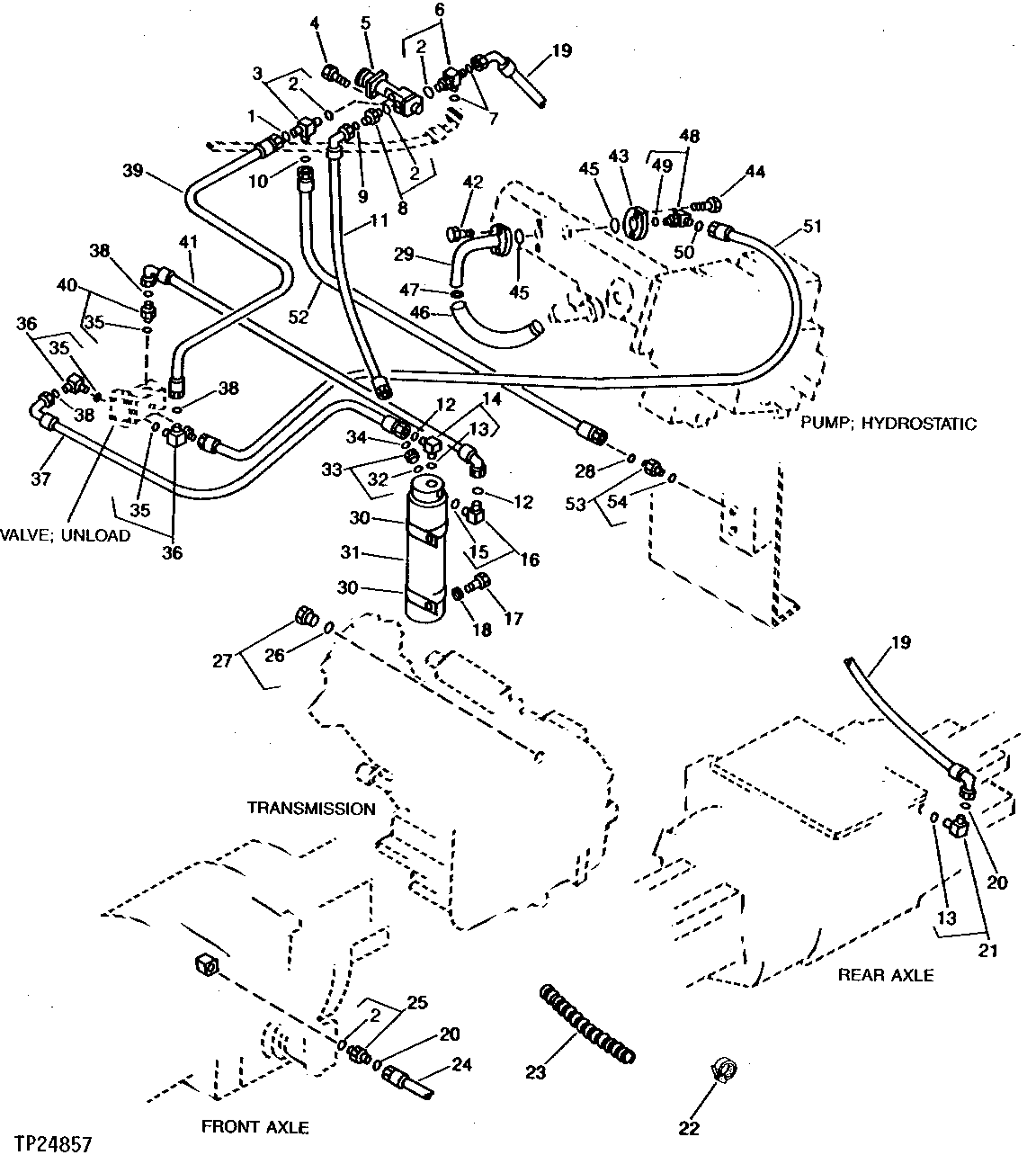

Brake Valve Hydraulics (000307 - 000626)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T77814	1	O-Ring	(SUB FOR AT121261)
2	R26448	4	O-Ring	-
3	AT122905	1	Tee Fitting	-
4	19M8446	2	Screw	M8 X 20
5	AT121214	1	Valve	(SUB AT143279, AT129614, AT129615 AND R51031)
6	38H1023	1	Tee Fitting	(SUB FOR AT121362)
7	T77613	2	O-Ring	(SUB FOR AT121256)
8	38H1160	1	Adapter Fitting	(SUB FOR AT121305)
9	T77613	1	O-Ring	(SUB FOR AT121256)
10	T77613	1	O-Ring	(SUB FOR AT121256)
11	AT121419	1	Hose	-
12	T77814	2	O-Ring	(SUB FOR AT121261)
13	R77673	2	O-Ring	(SUB FOR AT121664)
14	38H1051	1	Elbow Fitting	(SUB FOR AT121364)
15	AT121662	1	O-Ring	-
16	38H1319	1	Elbow Fitting	(SUB FOR AT121466)
17	19M7402	2	Cap Screw	M10 X 25
18	12M7066	2	Lock Washer	10 mm
19	AT121340	1	Hydraulic Hose	-
20	T77613	2	O-Ring	(SUB FOR AT121256)
21	38H1430	1	Elbow Fitting	(SUB FOR AT121365)
22	H77698	10	Tie Band	-
23	-	5	Part 23	(MAKE FROM XHG-075 BULK MATERIAL, CUT TO LENGTH), (SUB FOR AT138222)
24	AT121490	1	Hydraulic Hose	-
25	38H1435	1	Elbow Fitting	(SUB FOR AT121305)
26	R26375	1	O-Ring	(SUB FOR U10778)
27	X8P5ON-S	1	Fitting Plug	(SUB FOR AT121268 OR X05CP-8)
28	T77613	1	O-Ring	(SUB FOR AT121256)
29	AT122899	1	Brake Line	-
30	AT121382	2	Clamp	-
31	RE29336	1	HYDRAULIC ACCUMULATOR	-
32	R77673	1	O-Ring	(SUB FOR AT121664)
33	38H1170	1	Adapter Fitting	(SUB FOR AT121366)
34	T77613	1	O-Ring	(SUB FOR AT121256)
35	R76729	3	O-Ring	-
36	-	2	Part 36	4187189 NO LONGER AVAILABLE, (SUB 38H1003 AND R28782)
37	AT121473	1	Hydraulic Hose	-
38	T77814	3	O-Ring	(SUB FOR AT121261)
39	AT121434	1	Hydraulic Hose	-
40	-	1	Part 40	(WHEN AT121304 IS NO LONGER AVAILABLE, SUB 38H1159 AND R76729)
41	AT121635	1	Hydraulic Hose	-
42	19M8334	4	Screw	M6 X 30
43	AT121200	1	Flange	-
44	19M8505	4	Screw	M6 X 25
45	TH103950	2	O-Ring	-
46	AT123224	1	Hose	(CUT TO LENGTH), (SUB FOR AT122900)
47	TY22467	2	Clamp	(SUB FOR AT122901, OR AR21839THIS APPLICATION ) (SUB FOR AT145650)
48	38H1435	1	Elbow Fitting	-
49	R26448	1	O-Ring	-
50	T77613	1	O-Ring	(SUB FOR AT121256)
51	AT122902	1	Hydraulic Hose	-
52	AT122903	1	Hydraulic Hose	-
53	38H1309	4	Adapter Fitting	(SUB FOR (4) AT122904)
54	R76729	1	O-Ring	-

Brake Valve Hydraulics (000307 - 000626)
