Открытый узел

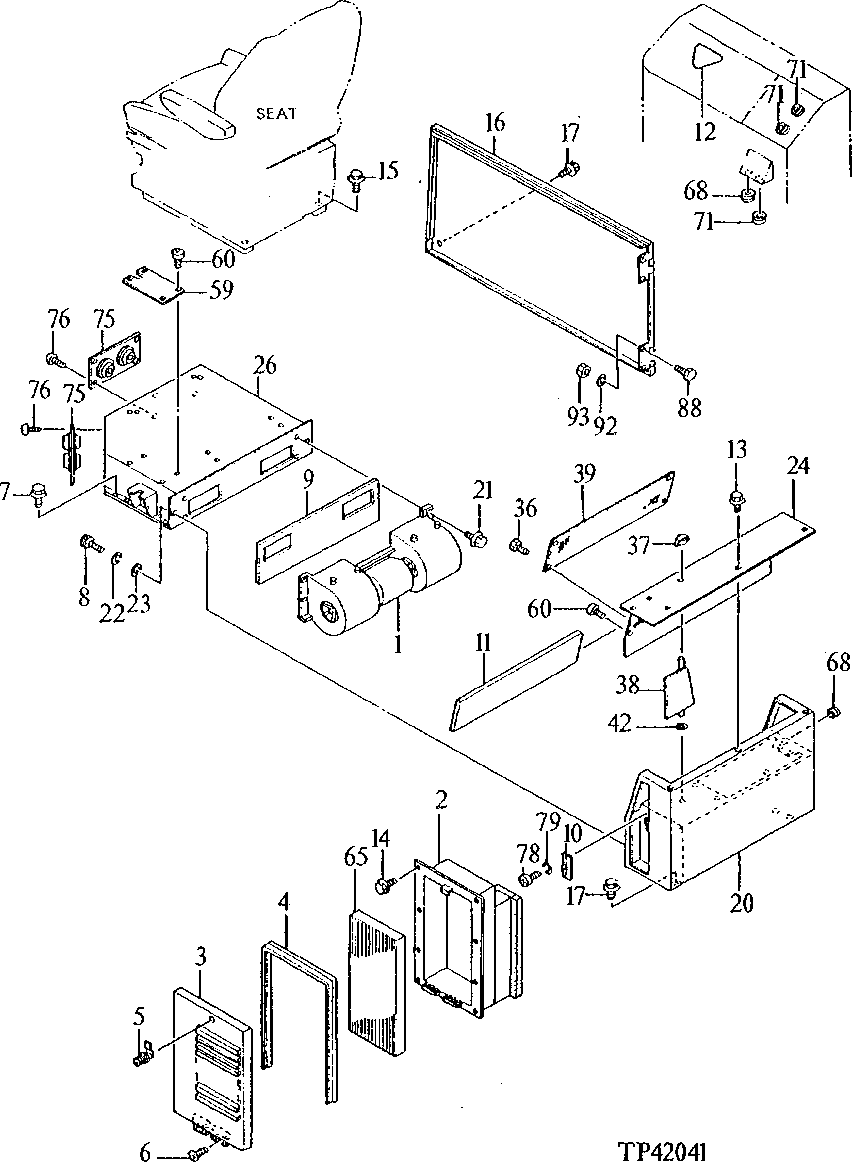

Blower and Filter (Heater Only) (000917 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT125170	1	Blower	(SUB FOR AT74426)
2	AT123424	1	Box	-
3	AT123425	1	Cover	-
4	AT123426	1	Isolator	-
5	4220782	1	Lock	(SUB FOR AT121988)
6	21M7249	6	Screw	M5 X 10
7	19M7163	6	Cap Screw	M8 X 25
8	19M8440	2	Screw	M10 X 25
9	T64604	1	Isolator	-
10	AR90771	1	Resistor	-
11	T102193	1	Air Filter	-
12	AT122207	1	Decals	-
13	19M8425	3	Cap Screw	M6 X 16, (SUB FOR 4181729, ALONG WITH 12M7006 AND 24M7054)
14	19M7162	8	Cap Screw	M8 X 16
15	19M7163	4	Cap Screw	M8 X 25
16	AT122138	1	Cover	-
17	19M7162	6	Cap Screw	M8 X 16
20	AT123416	1	Box	-
21	19M7560	4	Cap Screw	M6 X 16
22	12M7066	2	Lock Washer	10 mm
23	24M7028	2	Washer	10.500 X 20 X 2 mm
24	AT123417	1	Cover	-
26	AT123418	1	Base	-
36	AT123419	4	Bolt	-
37	AT123420	1	Knob	-
38	AT123421	1	Plate	-
39	AT123422	1	Plate	-
42	24M7054	1	Washer	6.400 X 12 X 1.600 mm
59	AT121993	1	Cover	-
60	T108221	8	Screw	-
65	AT116077	1	Air Filter	-
68	AT121399	2	Bushing	-
71	AT121326	3	Bushing	-
75	AT121352	2	Louver	-
76	21M7254	8	Screw	M6 X 16, (SUB FOR AT121858)
78	21M7265	2	Screw	M5 X 12
79	12M7064	2	Lock Washer	5 mm
88	19M7162	4	Cap Screw	M8 X 16
92	12M7065	4	Lock Washer	8 mm
93	14M7273	4	Nut	M8

Blower and Filter (Heater Only) (000917 - )

Нет текстового описания
