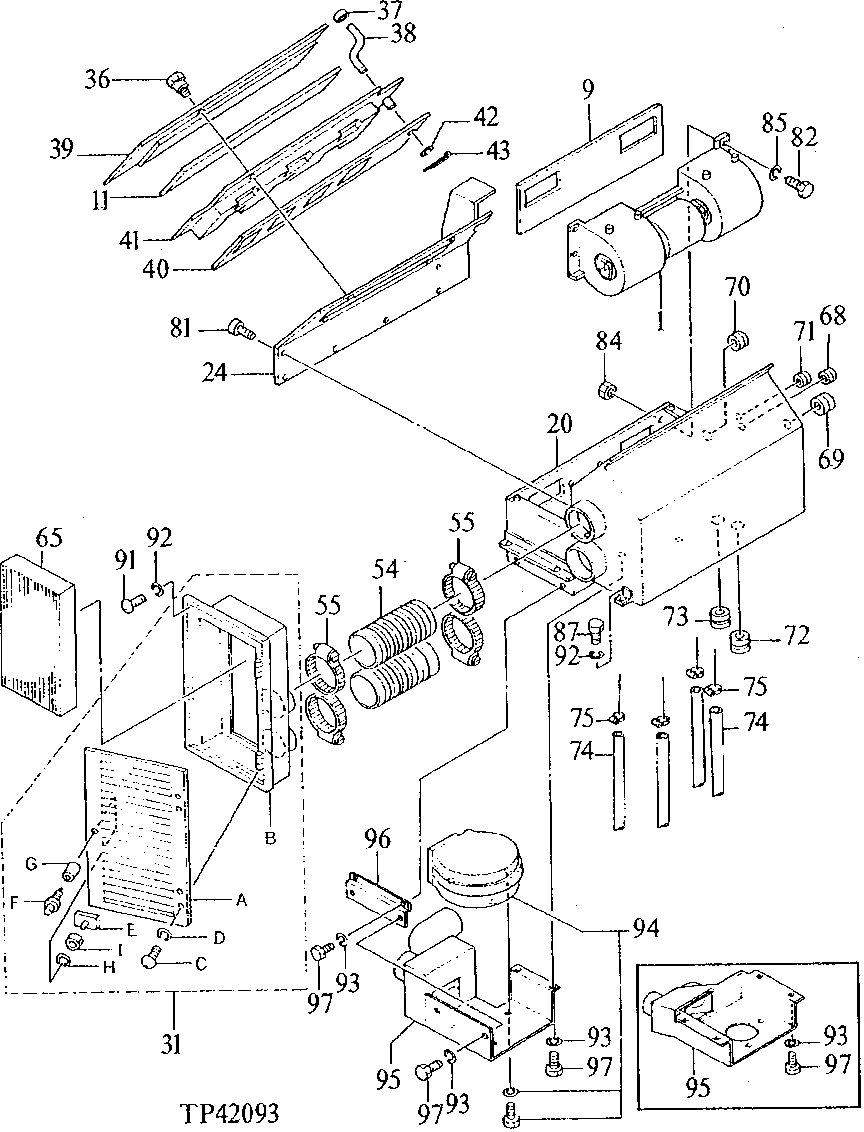

Blower and Filter (Air Conditioning)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT125170	1	Blower	(SUB FOR AT74426)
9	T64604	1	Isolator	-
11	T102193	1	Air Filter	-
20	AT121671	1	Box	-
20	AT122401	1	Box	-
24	AT121721	1	Cover	-
31	AT122148	1	Box	-
36	AT121456	4	Knob	-
37	AT121630	1	Knob	-
38	AT121633	1	Pin	-
39	AT121745	1	Cover	-
40	AT121219	1	Plate	-
41	AT121691	1	Box	-
42	24M7054	1	Washer	6.400 X 12 X 1.600 mm
43	11M7099	1	Cotter Pin	2 X 12 mm
54	AT121454	2	Conduit	-
55	AH103182	4	Hose Clamp	-
65	AT116077	1	Air Filter	-
68	AT121399	1	Bushing	-
69	AT121760	1	Grommet	-
70	AT121758	1	Grommet	-
71	AT121326	1	Bushing	-
72	AT121398	1	Grommet	-
73	AT121759	1	Grommet	-
74	-	4	Part 34	( T115300 NO LONGER AVAILABLE) (CUT TO LENGTH FROM TY22326 BULK MATERIAL)
75	AA34965	4	Hose Clamp	-
81	T108221	12	Screw	M6 X 14
82	19M7560	4	Cap Screw	M6 X 16
84	14M7272	4	Nut	M6
85	12M7006	4	Lock Washer	6 mm
87	19M7162	4	Cap Screw	M8 X 16
91	21M7291	8	Screw	M8 X 20
92	12M7065	12	Lock Washer	8 mm
93	12M7065	4	Lock Washer	8 mm
93	12M7065	6	Lock Washer	8 mm
94	AT122311	1	Blower	-
95	AT122444	1	Bracket	-
95	AT122414	1	Air Duct	-
96	AT122484	1	Bracket	-
97	19M7162	4	Cap Screw	M8 X 16
97	19M7162	6	Cap Screw	M8 X 16
31A	AT121697	1	Cover	-
31B	AT121674	1	Box	-
31C	21M7285	4	Screw	M6 X 12
31D	12M7006	4	Lock Washer	6 mm
31E	AT122814	1	Plate	-
31F	AT206102	1	Lock	(SUB FOR TH110128)
31G	TH110129	1	Case	-
31H	4355979	1	Ring	(SUB FOR 4134322, TH102237)
31I	4355980	1	Nut	(SUB FOR 4134323, TH102238)

Blower and Filter (Air Conditioning)

Нет текстового описания
