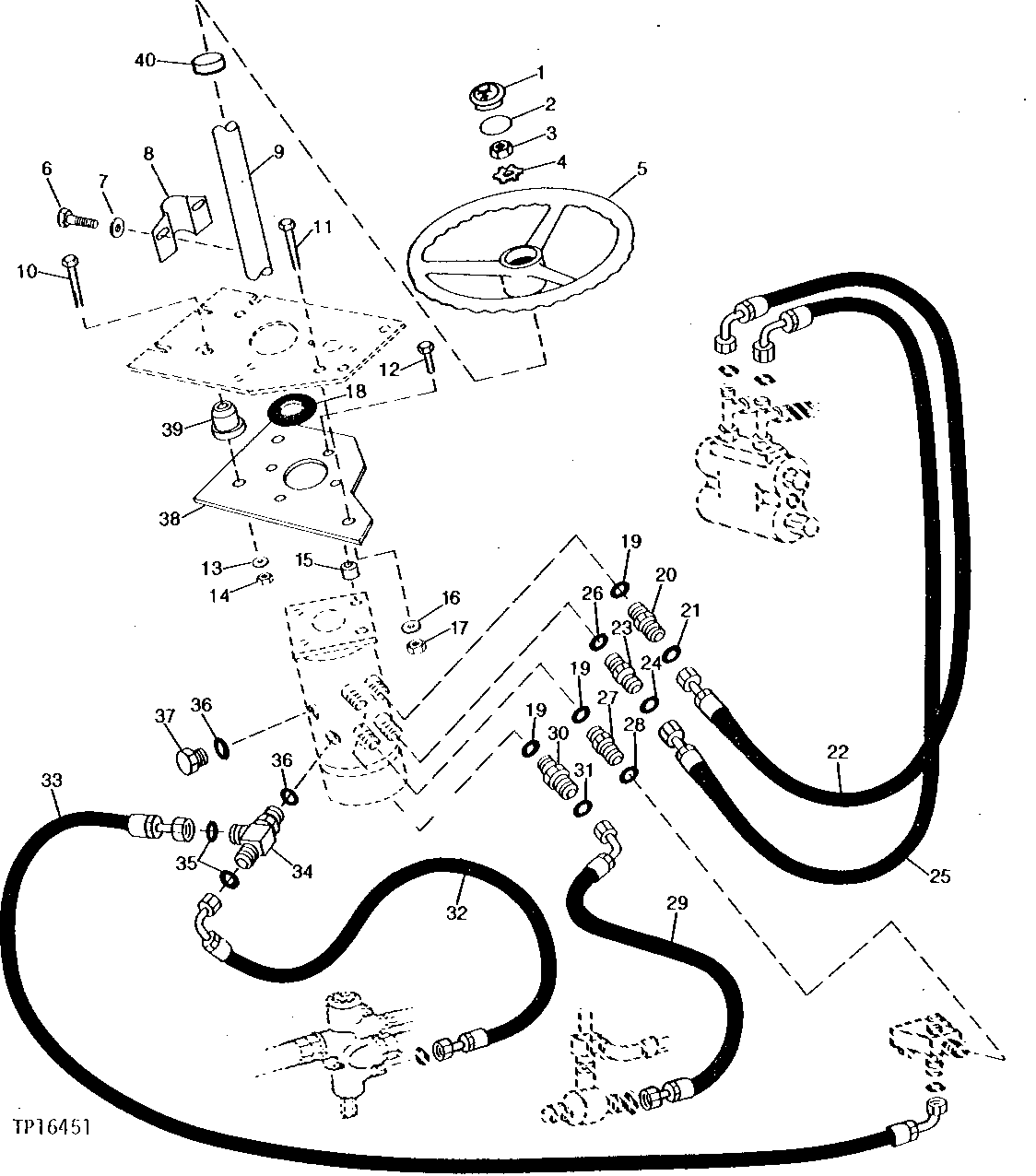

SECONDARY STEERING VALVE HYDRAULICS [01I14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL155227	1	Cover	(SUB FOR AL118173 OR R47998)
2	B3690R	1	O-Ring	-
3	T13630	1	Nut	-
4	T17148	1	Lock Washer	-
5	AR78405	1	Steering Wheel	(SUB FOR T22875, THIS APPLICATION)
6	19H2284	2	Cap Screw	3/8" X 7/8"
7	24H1305	2	Washer	13/32" X 13/16" X 0.065"
8	T81020	1	CLAMP	-
9	AT81878	1	STEERING COLUMN	-
10	19H3031	2	Cap Screw	3/8" X 2-1/2"
11	19H3065	1	Cap Screw	3/8" X 2"
12	19H3385	4	Cap Screw	1/2" X 1-1/8"
13	24M7296	3	Washer	10.500 X 30 X 2.500 MM
14	14H1076	2	Nut	3/8"
15	28H860	4	Washer	0.423" X 0.675" X 3/8"
16	24H1176	1	Washer	13/32" X 1-1/4" X 0.100"
17	14H1076	1	Nut	3/8"
18	T101496	1	GROMMET	-
19	U12547	3	O-Ring	-
20	38H1329	1	Adapter Fitting	-
21	T77932	1	O-Ring	-
22	AT103512	1	HYDRAULIC HOSE - FABRICATE	(SUB FOR AT102320)
23	38H1329	1	Adapter Fitting	-
24	T77932	1	O-Ring	-
25	AT103512	3	HYDRAULIC HOSE - FABRICATE	(SUB FOR AT102320)
26	T77857	1	O-Ring	-
27	AT83306	1	Adapter Fitting	-
28	R29936	1	O-Ring	-
29	AT81993	1	HYDRAULIC HOSE - FABRICATE	1-3/16" X 1 708 MM (67-1/4") X 1-3/16"
30	38H1163	1	Adapter Fitting	-
31	T77858	1	O-Ring	-
32	AT103283	1	HYDRAULIC HOSE - FABRICATE	(SUB FOR AT102544)
33	AT102545	1	HYDRAULIC HOSE - FABRICATE	11/16" X 385 MM (15-1/4") X 11/16"
34	38H1434	1	Tee Fitting	-
35	T77613	2	O-Ring	-
36	R28782	2	O-Ring	-
37	R51031	1	Fitting	-
38	T81019	1	PLATE	-
39	AT116162	3	Isolator	(SUB FOR AT64733)
40	T64315	1	Cap	(SUB FOR T101615)

SECONDARY STEERING VALVE HYDRAULICS [01I14]
