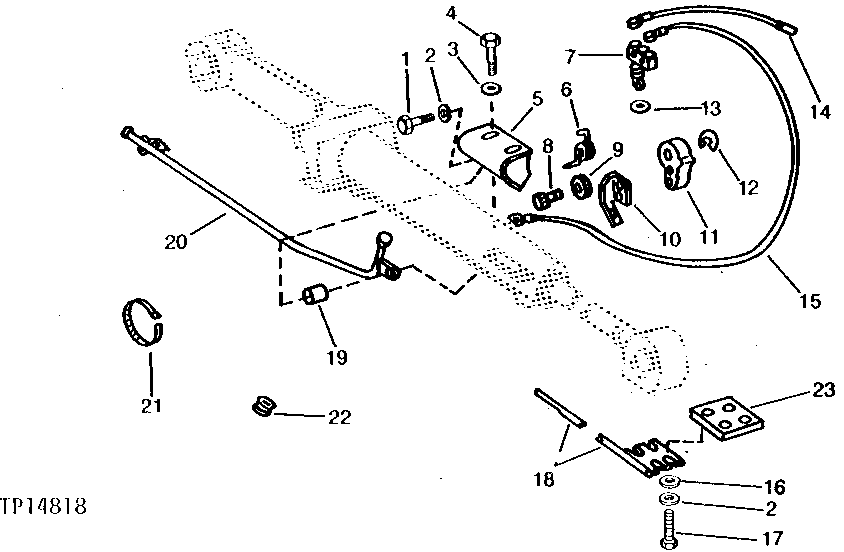

RETURN-TO-DIG ACTUATOR, CAM AND SWITCH (WITH REGULAR BUCKETS OR LUMBER FORK) [02K22]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H3031	1	Cap Screw	3/8" X 2-1/2"
2	12H304	5	Lock Washer	3/8"
3	12H304	2	Lock Washer	3/8"
4	19H1648	2	Cap Screw	3/8" X 3/4"
5	AT54076	1	HOUSING	-
6	T41367	1	TORSION SPRING	-
7	AT52530	1	SWITCH	-
8	19H1919	2	Cap Screw	1/4" X 5/8"
9	12H302	2	Lock Washer	1/4"
10	T56283	1	SUPPORT	-
11	AT40341	1	CAM	-
12	R26871	1	Snap Ring	-
13	24H1272	1	Washer	9/16" X 1-1/4" X 1/4"
14	AT40344	1	WIRING LEAD	-
15	AT70413	1	WIRING LEAD	-
16	24H1308	4	Washer	13/32" X 1" X 0.134"
17	19H2633	4	Cap Screw	HS, SAE 8, 3/8" X 1-1/4"
18	AT61381	1	ACTUATOR	(SUB FOR AT40345)
19	28H3380	1	Spacer	0.493" X 0.675" X 1-5/8" 3/8" X 1-5/8"
20	AT103345	1	TUBE	(SUB FOR AT40345)
21	R44302	1	Tie Band	-
22	R28193	1	Grommet	(SUB FOR M42869)
23	T49530	1	PLATE	-

RETURN-TO-DIG ACTUATOR, CAM AND SWITCH (WITH REGULAR BUCKETS OR LUMBER FORK) [02K22]
