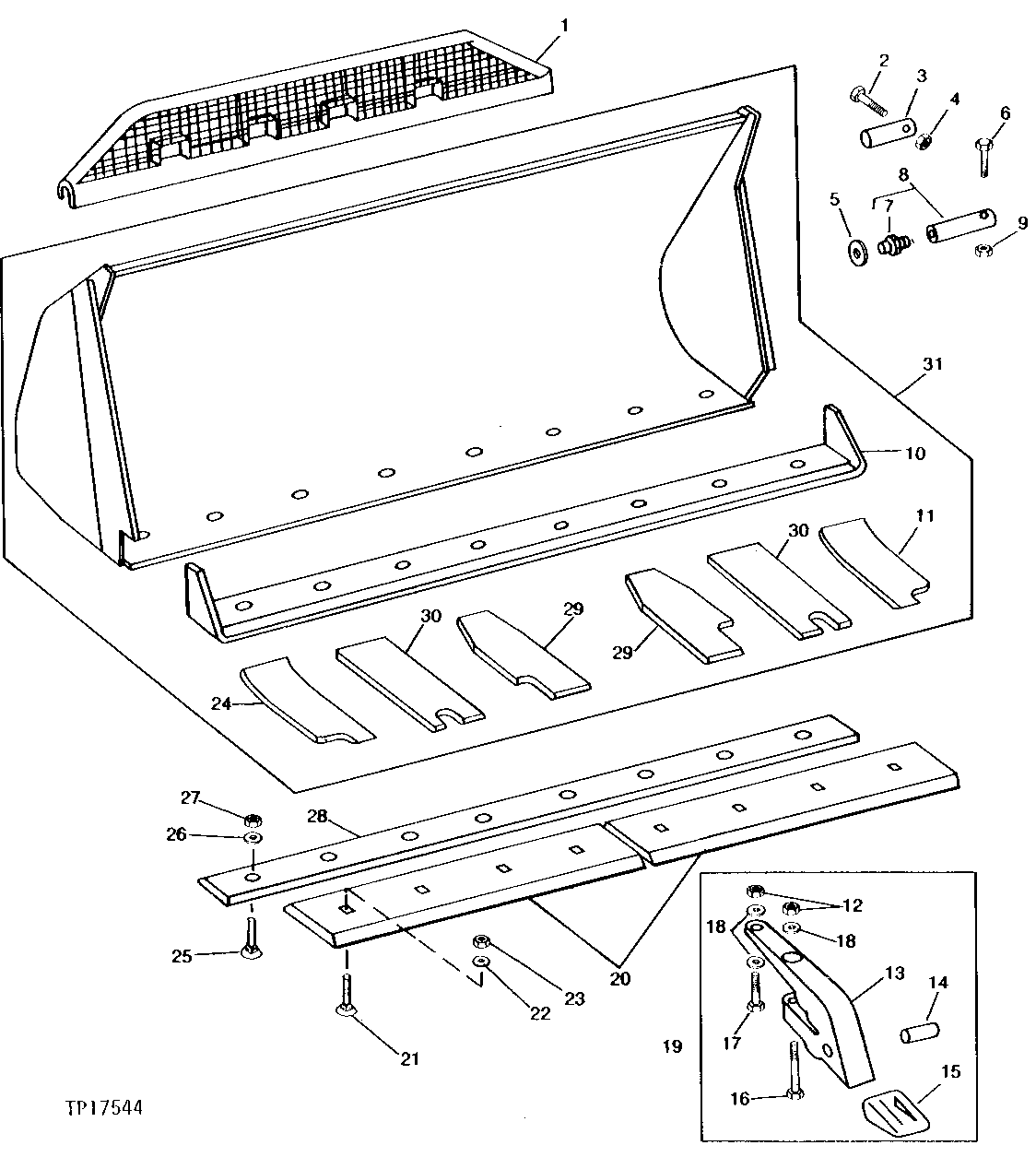

LOADER BUCKETS (FOR USE WITH TOOL CARRIER) [02J09]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT62105	1	GUARD	(FOR USE WITH 1.6 M3 (2 CU. YARD) GENERAL PURPOSE BUCKET) (SUB FOR AT62104)
1	AT40271	1	GUARD	(FOR USE WITH 1.2 M3 (1-1/2 CU. YARD AND 1.3 M3 (1-3/4 CU. YARD) BUCKET) (SUB FOR AT40270)
2	19H3170	1	Cap Screw	5/8" X 4-1/2"
3	T39930	1	PIN FASTENER	(BUCKET LINK TO BUCKET)
4	K40015	1	Lock Nut	-
5	24H1566	1	Washer	1-49/64" X 2-1/2" X 0.075"
6	19H3550	2	Cap Screw	1/2" X 4"
7	T162396	2	Lubrication Fitting	STRAIGHT, 1/8", (SUB FOR JD7759 OR JD7798)
8	AT23836	2	PIN FASTENER	(BOOM TO BUCKET PIVOT)
9	K40014	2	Lock Nut	-
10	T35567	1	DURA-MAX TM CUTTING EDGE	1.2 M3 (1-1/2 CU. YARD) GENERAL PURPOSE BUCKET
10	T35361	1	DURA-MAX TM CUTTING EDGE	1.3 M3 (1-3/4 CU. YARD BUCKET)
10	T65443	1	DURA-MAX TM CUTTING EDGE	1.6 M3 (2 CU. YARD) BUCKET
11	T65446	2	SHOE	(FOR USE WITH 1.6 M3 (2 CU. YARD) BUCKET)
12	K40015	2	Lock Nut	-
13	-	1	Part 16	(SUB AT65137)
14	TP160	1	Pin	(SUB FOR T25101)
15	T29887	1	TOOTH	(SUB FOR U16086)
16	10H1157	1	BOLT	PLOW, 5/8" X 3-1/4", 1.2 M3 (1-1/2 CU. YARD)
16	19H2641	1	Cap Screw	5/8" X 3-1/4" 1-3 M3 (1-3/4 CU. YARD)
17	19H2008	1	Cap Screw	5/8" X 1-5/8", 1.2 3M (1-1/2 CU. YARD)
17	19H2706	1	Cap Screw	5/8" X 2", 1.3 3M (1-3/4 CU. YARD)
18	24H1367	3	Washer	21/32" X 1-1/4" X 1/4"
19	-	1	Part 24	(AT65137 NO LONGER AVAILABLE) (FOR USE WITH 1-1/2 CU. YARD (1.2 M3) GENERAL PURPOSE BUCKET AND 1-1/2 CU. YARD (1.2 M3) MULTI-PURPOSE BUCKET)
19	-	1	Part 25	( AT65136 NO LONGER AVAILABLE) (FOR USE WITH 1-3/4 CU. YARD (1.3 M3) BUCKET)
20	T76968	2	CUTTING EDGE	(WITH 3/4" HOLES) (USE WITH T76969) (1-3/4 CU. YD. (1.3 M3) BUCKET)
20	T145946	1	DURA-MAX CUTTING EDGE	(PLAIN CARBON STEEL) (SUB FOR T76973) (WITH 3/4" HOLES) (USE WITH T76969) (2 CU. YD. (1.6 M3) BUCKET) (NOT ILLUSTRATED)
20	T145946	1	DURA-MAX CUTTING EDGE	(BORON STEEL)
21	T76969	8	BOLT	3/4" X 3" (USED WITH T76968)
21	T76969	7	BOLT	3/4" X 3", (USE WITH T145946)
22	N231749	8	Washer	(SUB FOR T33089) (USE WITH T76968)
22	N231749	7	Washer	(SUB FOR T33089) (USE WITH T145946)
23	K40016	8	Lock Nut	(USE WITH T76968)
23	K40016	7	Lock Nut	(USE WITH T145946)
24	T65444	1	SHOE	(FOR USE WITH 1.6 M3 (2 CU. YARD) BUCKET)
25	09H1759	8	Bolt	HS SAE 8, 5/8" X 2-1/4"
26	24M7241	8	Washer	17 X 34 X 4 MM, (SUB FOR T19584 AND T40728)
27	K40015	8	Lock Nut	-
28	T64320	1	DURA-MAX CUTTING EDGE	(FOR USE WITH 1.2 M3 (1-1/2 CU. YARD) BUCKET)
29	T102562	2	SHOE	(FOR USE WITH 1.2 M3 (1-1/2 CU. YARD) BUCKET) (SUB FOR T101827, THIS APPLICATION)
29	T102560	2	SHOE	(FOR USE WITH 1.3 M3 (1-3/4 CU. YARD) BUCKET) (SUB FOR T102007, THIS APPLICATION)
30	T102008	2	SHOE	(FOR USE WITH 1.3 M3 (1-3/4 CU. YARD) BUCKET)
30	T102561	2	SHOE	(FOR USE WITH 1.6 M3 (2 CU. YARD) BUCKET) (SUB FOR T101824, THIS APPLICATION)
31	AT103064	1	LOADER BUCKET	1.2 M3 (1-1/2 CU. YARD) (INCLUDES T35567 AND T101827)
31	AT103095	1	LOADER BUCKET	1.3 M3 (1-3/4 CU. YARD) (INCLUDES T35361, T102007 AND T102008)
31	-	1	Part 46	(INCLUDES T65443, T65444, T65446 AND T101824) ( AT103056 NO LONGER AVAILABLE)

LOADER BUCKETS (FOR USE WITH TOOL CARRIER) [02J09]
