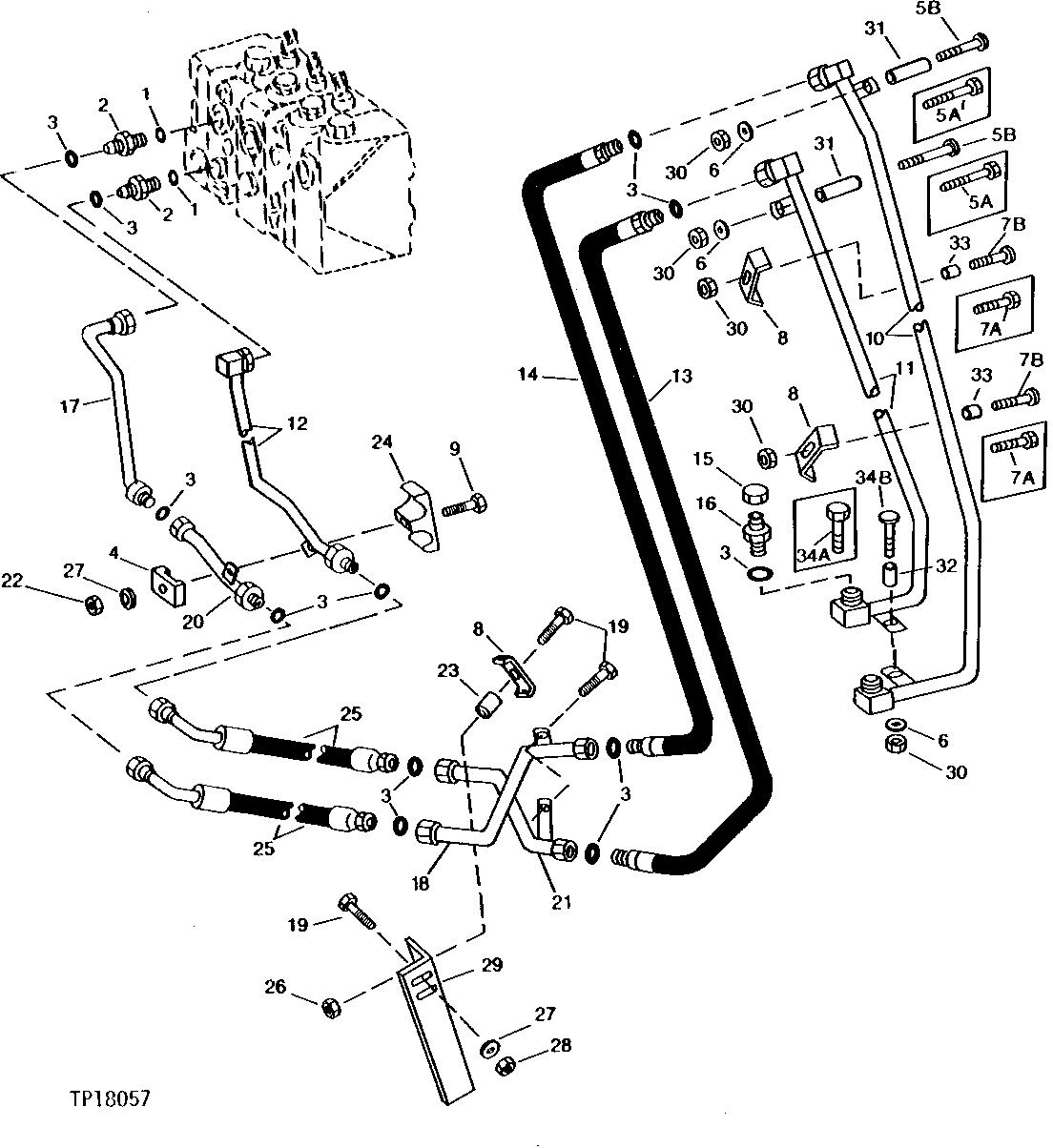

LOADER AUXILIARY CONTROL VALVE HYDRAULICS [02K17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R29936	2	O-Ring	-
2	38H1194	2	Adapter Fitting	-
3	T77858	13	O-Ring	-
4	T71348	1	CLAMP	(NO LONGER REQUIRED)
6	24H1850	3	Washer	17/32" X 1-1/4" X 0.180"
8	T32707	3	CLAMP	-
8	C11812	2	Clamp	(SUB FOR C19333)
9	19H2732	1	Cap Screw	3/8" X 2-3/4"
10	AT81494	1	TUBE	-
11	AT81495	1	TUBE	-
12	AT80031	1	OIL LINE	-
13	AT81486	1	HYDRAULIC HOSE	1-3/16" X 1 320 MM (52") X 1-3/16"
14	AT81485	1	HYDRAULIC HOSE - FABRICATE	1-3/16" X 1 168 MM (46") X 1-3/16"
15	38H1356	2	Tube Nut	(SUB FOR 38H1121)
16	38H1418	2	Fitting	(SUB FOR 38H1142)
17	AT84413	1	OIL LINE	-
18	AT81497	1	TUBE	-
19	19H3267	3	Cap Screw	3/8" X 1-5/8"
20	AT84414	1	OIL LINE	-
21	AT81496	1	TUBE	-
22	T54568	1	Lock Nut	-
23	M16521	1	BUSHING	-
24	T52978	1	Clamp	-
25	AT80033	2	HYDRAULIC HOSE - FABRICATE	1-3/16" X 902 MM (35-1/2") X 1-3/16"
26	T11234	1	Lock Nut	-
27	24H1308	1	Washer	13/32" X 1" X 0.134"
28	T54568	2	Lock Nut	-
29	T64513	1	BRACKET	-
30	14H1040	5	Nut	1/2"
31	28H1583	2	BUSHING	0.824" X 1.050" X 2-7/8"
32	28H2553	1	BUSHING	0.742" X 1.050" X 1-1/8"
33	28H1892	2	Bushing	0.622" X 0.840" X 5/8"
5A	19H3579	2	Cap Screw	1/2" X 1-3/8"
5B	AT103546	2	WELD STUD	(SUB FOR AT85066)
7A	19H1648	2	Cap Screw	3/8" X 3/4"
7B	AT85059	2	WELD STUD	-
34A	19H2508	1	CAP SCREW	1/2" X 1-3/8"
34B	AT85065	1	WELD STUD	-
