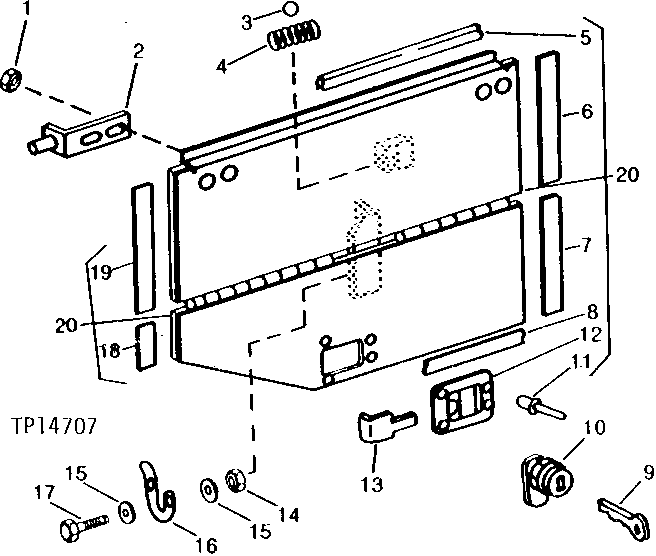

ENGINE SIDE SHIELDS (USE WITH HIGH FLOTATION TIRES) (23.1 X 26 AND 23.5 X 25) [02I04]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H1076	8	Nut	3/8"
2	AT62587	4	BRACKET	-
3	D2361R	2	Ball	-
4	R33174	2	SPRING	-
5	-	2	Part 5	(MAKE FROM T66161 BULK MATERIAL, CUT TO LENGTH)
6	-	2	Part 6	(MAKE FROM T66161 BULK MATERIAL, CUT TO LENGTH)
7	-	2	Part 7	(MAKE FROM T66161 BULK MATERIAL, CUT TO LENGTH)
8	-	2	Part 8	(MAKE FROM T66162 BULK MATERIAL, CUT TO LENGTH)
9	AT195302	1	Key	(SUB FOR AR51481 AND AT145929)
10	AT55844	2	LOCK	(SUB FOR AT62581)
11	H85233	8	Rivet	-
12	AT55843	2	HANDLE	-
13	T63640	2	LOCK	-
14	K40003	2	Lock Nut	-
15	24H1219	4	Washer	7/16" X 1" X 0.083"
16	T73129	2	LATCH	-
17	19H3239	2	Cap Screw	3/8" X 1-1/4"
18	-	1	Part 18	(MAKE FROM T66161 BULK MATERIAL, CUT TO LENGTH)
19	-	1	Part 19	(MAKE FROM T66161 BULK MATERIAL, CUT TO LENGTH)
20	AT70227	1	SHIELD	LEFT (ILLUSTRATED) (USE IF AVAILABLE) (SUB AT70228)
20	AT70228	1	SHIELD	LEFT (ILLUSTRATED) (DOES NOT CONTAIN ISOLATORS)
20	AT70225	1	SHIELD	RIGHT (USE IF AVAILABLE) (SUB. AT70226)
20	AT70226	1	SHIELD	RIGHT (DOES NOT CONTAIN ISOLATORS)

ENGINE SIDE SHIELDS (USE WITH HIGH FLOTATION TIRES) (23.1 X 26 AND 23.5 X 25) [02I04]
