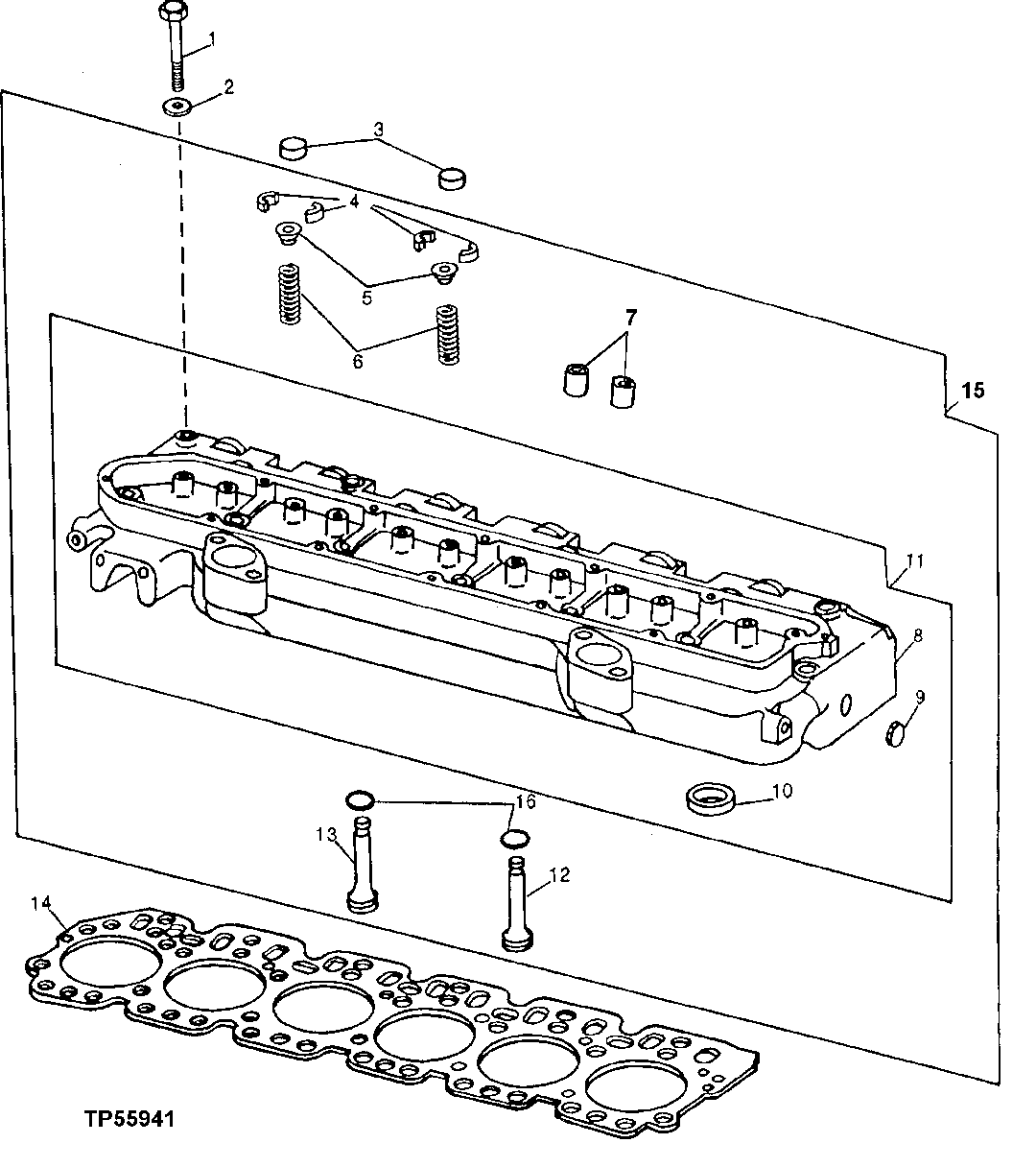

CYLINDER HEAD, HEAD GASKET AND VALVES (WITHOUT TURBOCHARGER) [01F12]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R85363	26	Cap Screw	1/2" X 4-1/4", (SUB FOR R78558)
2	T20168	26	Washer	(DO NOT USE WITH R85363)
3	T20129	12	Cap	-
4	T20077	24	Retainer	-
5	RE11410	12	Rotator	(SUB FOR R41412)
6	R26125	12	Spring	-
7	R110524	12	Seal	(USE WITH RE56304)
8	-	1	Part 8	AR76241 NO LONGER AVAILABLE, (MARKED R62143) (SUB RE56304)
9	A3910R	1	PLUG	-
9	CD16284	1	Plug	-
10	R51734	6	VALVE SEAT INSERT	EXHAUST
11	AR76242	1	CYLINDER HEAD	(MARKED R62143) (SUB RE56304)
12	R79624	6	EXHAUST VALVE	STANDARD
12	R79625	6	EXHAUST VALVE	0.08 MM (.003") OVERSIZE, (SUB FOR R57333)
12	R79626	6	EXHAUST VALVE	0.38 MM (.015") OVERSIZE, (SUB FOR R57335)
12	-	6	Part 16	( R79627 NO LONGER AVAILABLE) 0.76 MM (.030") OVERSIZE, (SUB FOR R57337)
13	R79623	6	Intake Valve	STANDARD
13	R79628	6	INTAKE VALVE	0.08 MM (.003") OVERSIZE, (SUB FOR R75332)
13	R79629	6	INTAKE VALVE	0.38 MM (.015") OVERSIZE, (SUB FOR R57334)
13	-	6	Part 20	( R79630 NO LONGER AVAILABLE) 0.76 MM (.030") OVERSIZE, (SUB FOR R57336)
14	R91880	1	GASKET	(SUB FOR R59449 AND R80243)
15	RE56304	1	Cylinder Head	(MARKED R62143)
16	R87627	6	O-RING	(SUB FOR R27976, THIS APPLICATION) (USE WITH AR76241)

CYLINDER HEAD, HEAD GASKET AND VALVES (WITHOUT TURBOCHARGER) [01F12]
