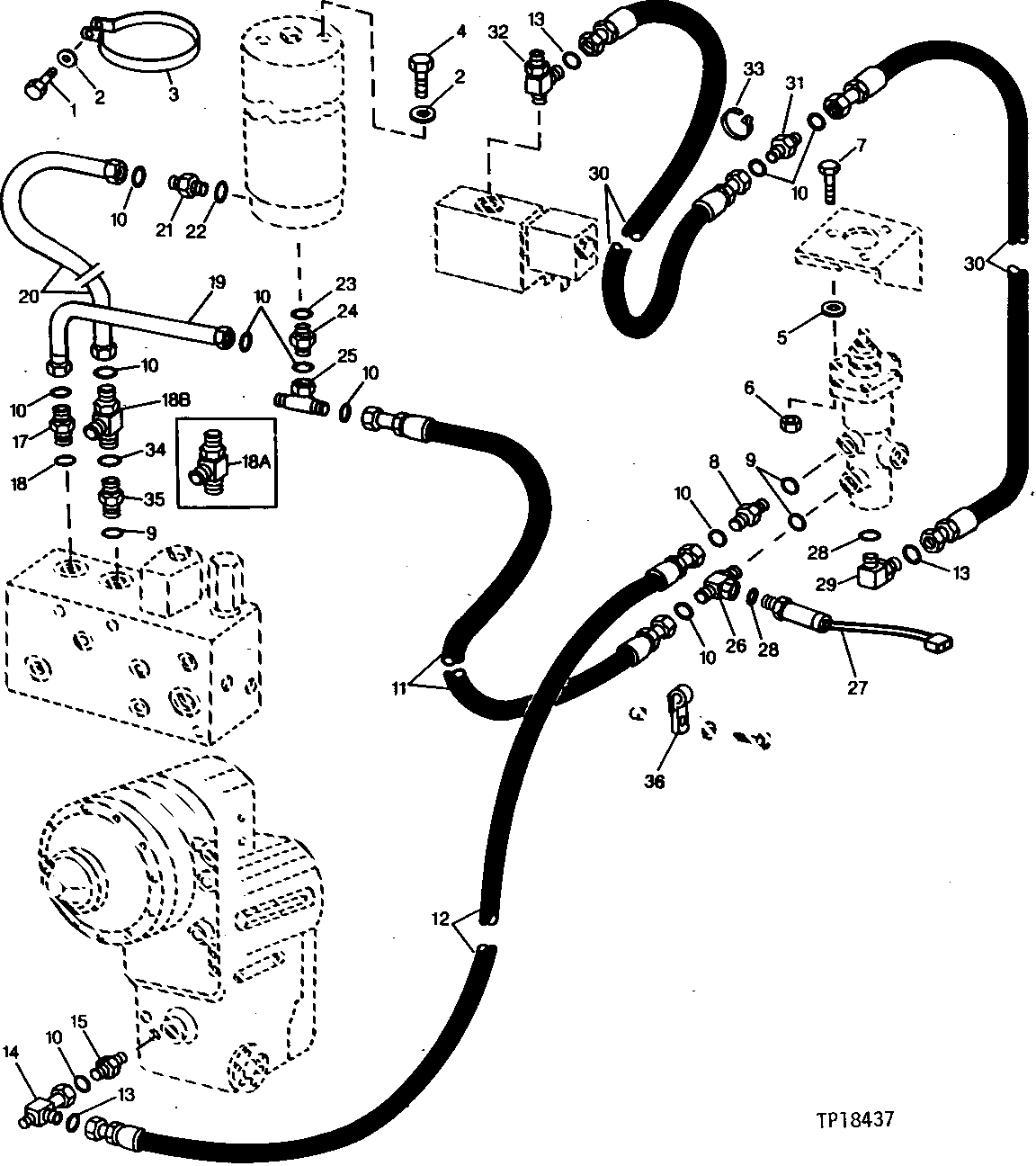

BRAKE VALVE PRESSURE AND RETURN HYDRAULICS [01J22]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2284	1	Cap Screw	3/8" X 7/8"
2	24H1884	3	Washer	13/32" X 13/16" X 0.120"
3	R35794	1	Clamp	-
4	19H2284	2	Cap Screw	3/8" X 7/8"
5	24H1682	3	Washer	13/32" X 7/8" X 0.120"
6	14H1076	3	Nut	3/8"
7	19H3239	3	Cap Screw	3/8" X 1-1/4"
8	38H1160	1	Adapter Fitting	-
9	R26448	3	O-Ring	-
10	T77613	10	O-Ring	-
11	AT103271	1	HYDRAULIC HOSE - FABRICATE	11/16" X 1 854 MM (73") X 11/16", (SUB FOR AT82269)
12	AT79762	1	HYDRAULIC HOSE - FABRICATE	11/16" X 1 518 MM (59-3/4") X 11/16"
13	T77814	3	O-Ring	-
14	38H1030	1	Tee Fitting	-
15	M87733	1	Adapter Fitting	-
16	R28782	1	O-Ring	-
17	38H1309	1	Adapter Fitting	-
19	AT103260	1	OIL LINE	(SUB FOR AT82268)
20	AT82267	1	OIL LINE	-
20	AT103259	1	OIL LINE	(SUB FOR AT102918)
21	38H1169	1	Adapter Fitting	-
22	R26287	1	O-Ring	-
23	R26286	1	O-Ring	-
24	38H1170	1	Adapter Fitting	-
25	38H1038	1	Tee Fitting	-
26	AT102367	1	TEE FITTING	-
27	RE15466	1	Pressure Switch	-
28	R26287	1	O-Ring	-
29	38H1319	1	Elbow Fitting	-
30	AT78160	2	HYDRAULIC HOSE - FABRICATE	9/16" X 533 MM (21") X 11/16"
31	AT84495	1	Check Valve	-
32	38H1425	1	Tee Fitting	-
33	R44302	1	Tie Band	-
34	T77613	1	O-Ring	-
35	38H1160	1	Adapter Fitting	-
36	R72659	1	Clamp	-
18A	38H1023	1	Tee Fitting	-
18B	38H1030	1	Tee Fitting	-

BRAKE VALVE PRESSURE AND RETURN HYDRAULICS [01J22]
