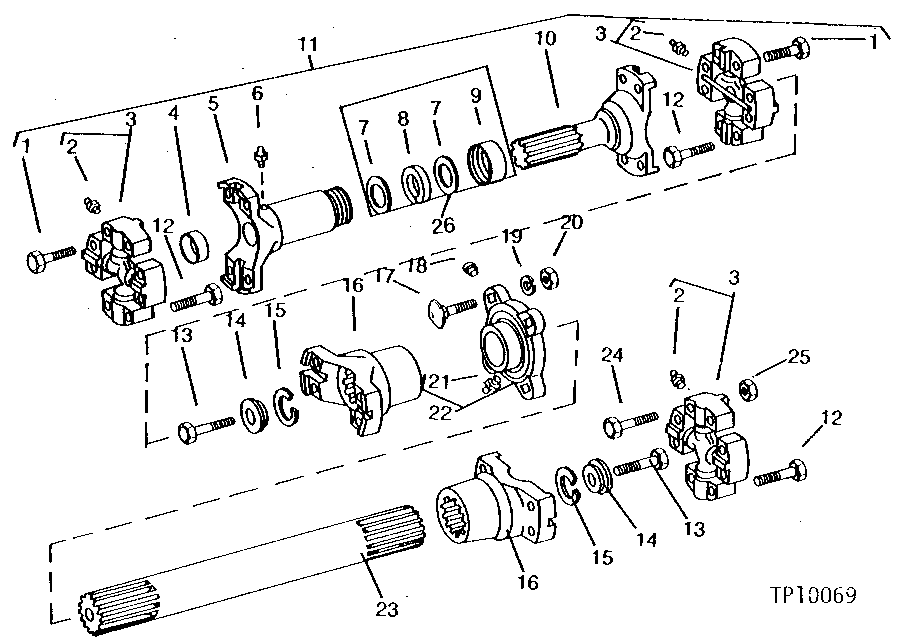

TRANSMISSION-TO-FRONT DIFFERENTIAL UNIVERSAL JOINT [01C03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2960	8	Cap Screw	HS, SAE 8, 3/8" X 1-3/4"
2	JD7842	3	Lubrication Fitting	1/4"
3	AT199701	3	Cross And Bearing Assembly	(SUB FOR AT73775)
4	T28386	1	PLUG	-
5	AT27358	1	UNIVERSAL JOINT YOKE	(SUB AT102660 AND AT76670) SLIP
5	AT102660	1	UNIVERSAL JOINT YOKE	(USE IF AVAILABLE) (SUB FOR AT76669)
6	JD7759	1	Lubrication Fitting	1/8"
7	T28387	2	WASHER	FELT RETAINER (SUB AT76671)
8	T28389	1	ISOLATOR	FELT RETAINER (SUB AT76671)
9	T28388	1	RETAINER	FELT (SUB AT76671)
10	T29338	1	UNIVERSAL JOINT YOKE	(SUB AT76669 AND AT76670)
10	AT76670	1	UNIVERSAL JOINT YOKE	(USE IF AVAILABLE)
11	AT27357	1	UNIVERSAL JOINT	(SUB AT102655)
11	AT102655	1	UNIVERSAL JOINT	(SUB FOR AT76668)
12	19H2960	12	Cap Screw	HS, SAE 8, 3/8" X 1-3/4"
13	19H1356	2	CAP SCREW	5/8" X 1-3/4"
14	T27134	2	WASHER	-
15	T27132	2	SNAP RING	-
16	T29337	2	UNIVERSAL JOINT YOKE	-
17	03H1764	4	Bolt	RD. HD. 1/2" X 1-3/4"
18	T27135	1	PIN	-
19	12H301	4	Lock Washer	1/2"
20	14H1040	4	Nut	1/2"
21	JD7842	1	Lubrication Fitting	1/4"
22	AT167717	1	BEARING WITH HOUSING	(SUB FOR AT25143 OR AT150856) (ALSO ORDER T149265 NO GREASE TAG (NOT ILLUSTRATED)
23	T29813	1	SHAFT	-
24	19H3251	4	Cap Screw	3/8" X 2-1/4"
25	T27945	4	LOCK NUT	-
26	AT76671	1	KIT	SEAL

TRANSMISSION-TO-FRONT DIFFERENTIAL UNIVERSAL JOINT [01C03]
