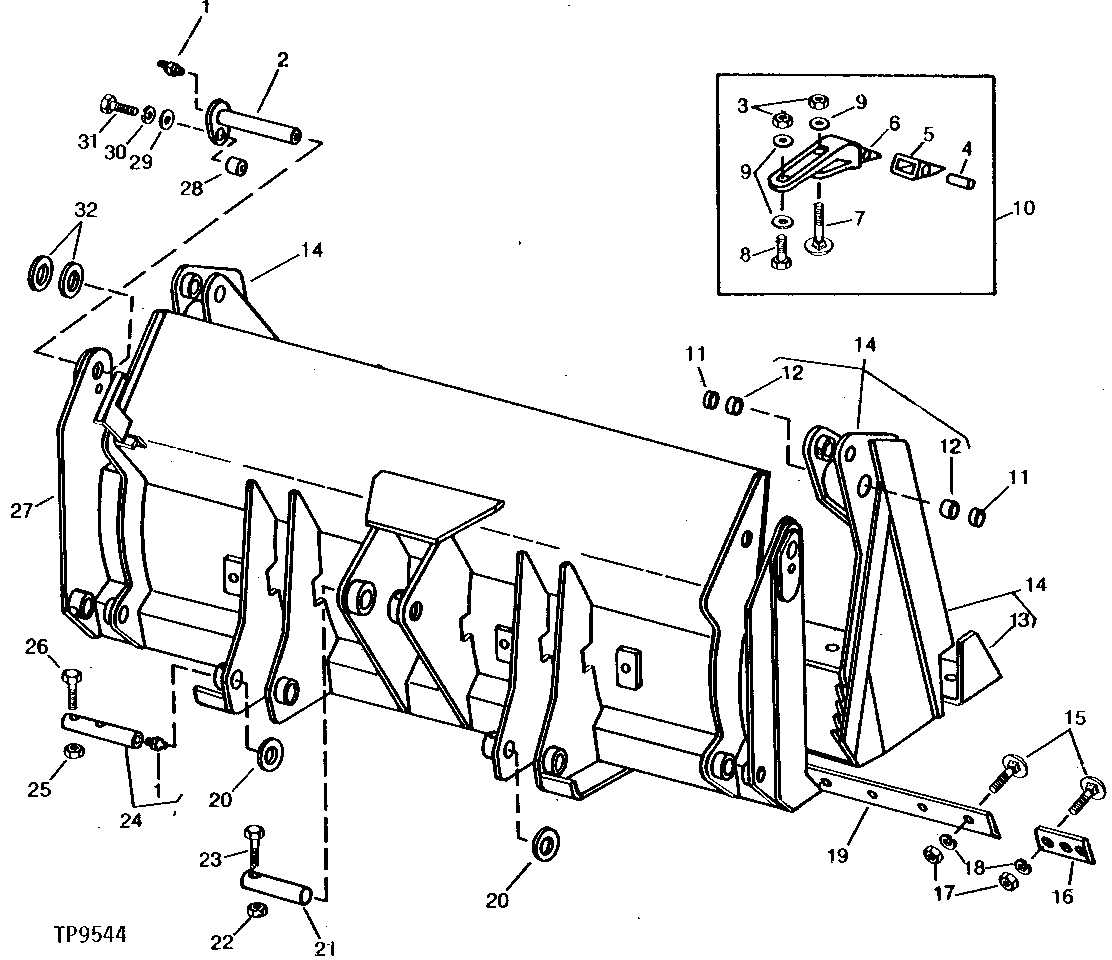

MULTI-PURPOSE BUCKET 1.2 M3 (1-1/2 CU. YD.) [03B08]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T162396	3	Lubrication Fitting	STRAIGHT, 1/8", (SUB FOR JD7759 OR JD7798)
2	AT60867	2	PIN FASTENER	-
3	K40015	2	Lock Nut	-
4	TP160	1	Pin	(SUB FOR T25101)
5	T29887	1	TOOTH	(SUB FOR U16086)
6	-	1	Part 6	(SUB AT65137 OR AT25485)
7	10H1157	1	BOLT	NO. 3, 5/8" X 3-1/4"
8	19H2008	1	Cap Screw	5/8" X 1-5/8"
9	24M7241	3	Washer	17 X 34 X 4 MM, (SUB FOR T19584 AND T40728)
10	-	1	Part 10	(AT65137 NO LONGER AVAILABLE) FOR USE WITH 1-1/2 CU. YARD (1.2 M3) MULTI-PURPOSE BUCKET AND 1-1/2 CU. YARD (1.2 M3) GENERAL PURPOSE BUCKET)
10	-	1	Part 11	(AT65137 NO LONGER AVAILABLE) (FOR USE WITH 1-1/2 CU. YARD (1.2 M3) MULTI-PURPOSE BUCKET AND 1-1/2 CU. YARD (1.2 M3) GENERAL PURPOSE BUCKET) (SUB FOR AT25485)
11	T63053	8	SEAL	-
12	T63051	4	BUSHING	-
13	T35567	1	DURA-MAX TM CUTTING EDGE	CLAM
14	AT61848	1	CLAMSHELL BUCKET	-
15	10H1047	13	Bolt	3/4" X 2-1/4"
16	T31148	2	CUTTING EDGE	-
17	14H794	13	Nut	3/4"
18	12H236	13	Lock Washer	3/4"
19	T57501	1	CUTTING EDGE	-
20	24H1566	1	Washer	1-49/64" X 2-1/2" X 0.075"
21	T39930	1	PIN FASTENER	-
22	U44915	1	Lock Nut	(SUB FOR BP14495)
23	19H3170	1	Cap Screw	5/8" X 4-1/2"
24	AT23836	2	PIN FASTENER	-
25	BP12214	2	Lock Nut	-
26	19H1868	2	CAP SCREW	1/2" X 3-3/4"
27	AT61842	1	MULTI-PURPOSE BUCKET	-
28	28H1596	2	WASHER	-
29	24H1162	2	Washer	17/32" X 1-1/4" X 0.060"
30	12H301	2	Lock Washer	1/2"
31	19H2472	2	Cap Screw	1/2" X 1"
32	24H1595	4	Washer	2-1/16" X 3" X 0.075"
..	AT61840	1	MULTI-PURPOSE BUCKET	1.2 M3 (1-1/2 CU. YARD) (INCLUDES BLADE (CLAM, CUTTING EDGES, CLAM CYLINDERS, PINS, CLAM CYLINDER HYDRAULICS AND MISCELLANEOUS HARDWARE)

MULTI-PURPOSE BUCKET 1.2 M3 (1-1/2 CU. YD.) [03B08]
