Открытый узел

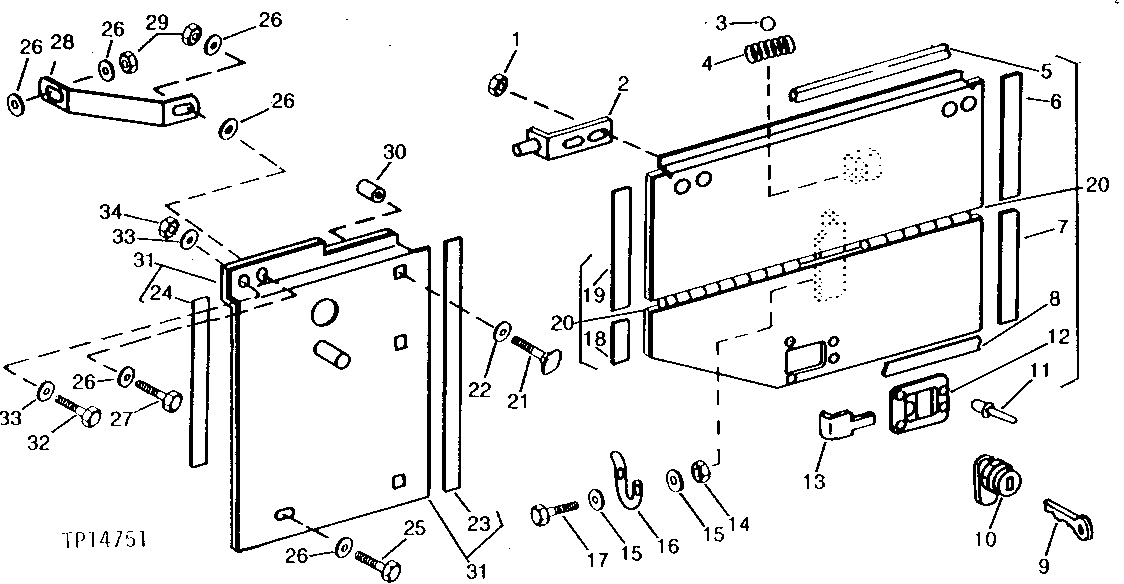

ENGINE SIDE SHIELDS (USE WITH HIGH FLOTATION TIRES) (23.1 X 26 AND 23.5 X 25) (444CH) [02I08]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H812	8	NUT	3/8"
2	AT62587	4	BRACKET	-
3	D2361R	2	Ball	-
4	R33174	2	SPRING	-
5	-	2	Part 5	(MAKE FROM T66161 BULK MATERIAL, CUT TO LENGTH)
6	-	2	Part 6	(MAKE FROM T66161 BULK MATERIAL, CUT TO LENGTH)
7	-	2	Part 7	(MAKE FROM T66161 BULK MATERIAL, CUT TO LENGTH)
8	-	2	Part 8	(MAKE FROM T66162 BULK MATERIAL, CUT TO LENGTH)
9	AT195302	1	Key	(SUB FOR AR51481 AND AT145929)
10	AT55844	2	LOCK	(SUB FOR AT62581)
11	H85233	8	Rivet	-
12	AT55843	2	HANDLE	-
13	T63640	2	LOCK	-
14	K40003	2	Lock Nut	-
15	24H1219	4	Washer	7/16" X 1" X 0.083"
16	T73129	2	LATCH	-
17	19H3239	2	Cap Screw	3/8" X 1-1/4"
18	-	1	Part 18	(MAKE FROM T66161 BULK MATERIAL, CUT TO LENGTH)
19	-	1	Part 19	(MAKE FROM T66161 BULK MATERIAL, CUT TO LENGTH)
20	AT70226	1	SHIELD	RIGHT (DOES NOT CONTAIN ISOLATORS)
20	AT70228	1	SHIELD	LEFT (ILLUSTRATED) (DOES NOT CONTAIN ISOLATORS)
20	AT70227	1	SHIELD	LEFT (ILLUSTRATED) (USE IF AVAILABLE) (SUB AT70228)
20	AT70225	1	SHIELD	RIGHT (USE IF AVAILABLE) (SUB. AT70226)
21	03H1557	6	Bolt	-
22	N160437	6	Washer	(NO LONGER REQUIRED, THIS APPLICATION)
23	-	2	Part 26	(MAKE FROM T66161 BULK MATERIAL, CUT TO LENGTH)
24	T80600	1	ISOLATOR	-
25	19H1648	2	Cap Screw	3/8" X 3/4"
26	24H1308	20	Washer	13/32" X 1" X 0.134"
27	19H2284	2	Cap Screw	3/8" X 7/8"
28	T66154	2	BRACKET	-
29	14H812	8	NUT	3/8"
30	T149003	2	Spacer	(SUB FOR R48792)
31	AT74379	1	SHIELD	FRONT LEFT, (SUB AT81124)
31	AT81124	1	SHIELD	FRONT LEFT (ILLUSTRATED) (USE IF AVAIALABLE) (SUB AT81125)
31	AT81125	1	SHIELD	FRONT LEFT (ILLUSTRATED) (DOES NOT INCLUDE ISOLATORS) (SUB FOR AT81124)
31	AT69834	1	SHIELD	FRONT RIGHT, (SUB AT81123)
31	AT81123	1	SHIELD	FRONT RIGHT (DOES NOT INCLUDE ISOLATORS) (SUB FOR AT81122)
32	19H2664	2	Cap Screw	5/16" X 3/4"
33	24H1136	4	Washer	11/32" X 11/16" X 0.065"
34	14H785	2	Nut	5/16"

ENGINE SIDE SHIELDS (USE WITH HIGH FLOTATION TIRES) (23.1 X 26 AND 23.5 X 25) (444CH) [02I08]

Нет текстового описания
