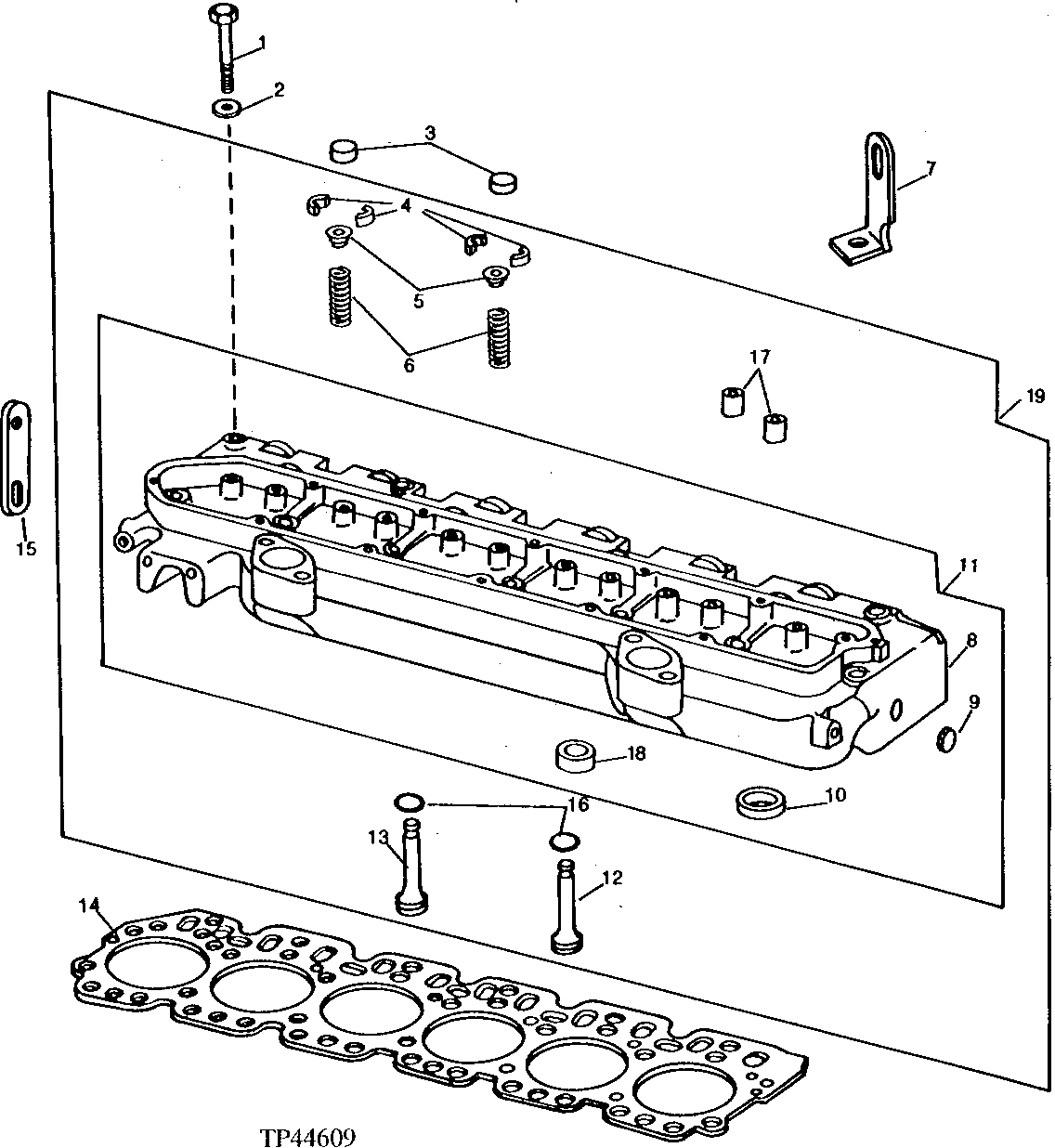

CYLINDER HEAD, HEAD GASKET AND VALVES [01F14]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R53223	26	CAP SCREW	1/2" X 4-1/4"
2	T20168	26	Washer	-
3	T20129	12	Cap	-
4	T20077	24	Retainer	-
5	R41412	12	CAP	(SUB FOR T20176)
6	R26125	12	Spring	-
7	-	1	Part 7	-
8	-	1	Part 8	(SUB RE56304)
8	-	1	Part 9	(SUB RE56544) (444CH)
9	A3910R	1	PLUG	-
9	CD16284	1	Plug	-
10	R51734	6	VALVE SEAT INSERT	EXHAUST
10	R73064	6	VALVE SEAT INSERT	INTAKE (444CH)
11	AR76242	1	CYLINDER HEAD	(MARKED R62143) (SUB RE56304)
11	AR103292	1	CYLINDER HEAD	(SUB RE56304) (MARKED R61035) (444CH)
12	R87627	6	O-RING	EXHAUST, (SUB FOR R27976, THIS APPLICATION) (USE WITH R79624, R79625, R79626 AND R79627) (NOT ILLUSTRATED)
12	-	6	Part 19	( R79627 NO LONGER AVAILABLE) 0.76 MM (.030") OVERSIZE, (SUB FOR R57337)
12	R79626	6	EXHAUST VALVE	0.38 MM (.015") OVERSIZE, (SUB FOR R57335)
12	R79624	6	EXHAUST VALVE	STANDARD, (SUB FOR R52252)
12	R79625	6	EXHAUST VALVE	0.08 MM (.003") OVERSIZE, (SUB FOR R57333)
13	-	6	Part 27	( R79630 NO LONGER AVAILABLE) 0.76 MM (.030") OVERSIZE, (SUB FOR R57336)
13	-	6	Part 28	( R89225 NO LONGER AVAILABLE) 0.76 MM (.030") OVERSIZE (444CH) (SUB FOR R76542 AND R88176) (ALSO ORDER R87627)
13	R89224	6	INTAKE VALVE	0.38 MM (.015") OVERSIZE (444CH) (SUB FOR R76540 AND R88175) (ALSO ORDER R87627)
13	R79629	6	INTAKE VALVE	0.38 MM (.015") OVERSIZE, (SUB FOR R57334)
13	R89223	6	INTAKE VALVE	0.08 MM (.003") OVERSIZE (444CH) (SUB FOR R76538 AND R88174) (ALSO ORDER R87627)
13	R79628	6	INTAKE VALVE	0.08 MM (.003") OVERSIZE, (SUB FOR R57332)
13	R83071	6	INTAKE VALVE	STANDARD (444CH) (SUB FOR R72611)
13	R79623	6	Intake Valve	STANDARD, (SUB FOR R52251)
14	R91880	1	GASKET	(SUB FOR R59449 AND R80243)
15	-	1	Part 30	-
16	R87627	12	O-RING	(SUB FOR R27976)
17	R110524	12	Seal	-
18	R73065	6	INSERT	-
19	RE56304	1	Cylinder Head	(MARKED R61035) (SUB FOR AR76241) (MARKED R62143) (SUB FOR RE36344) (MARKED R61035)
19	RE56544	1	CYLINDER HEAD	(MARKED R61035) (SUB FOR AR103291)

CYLINDER HEAD, HEAD GASKET AND VALVES [01F14]
