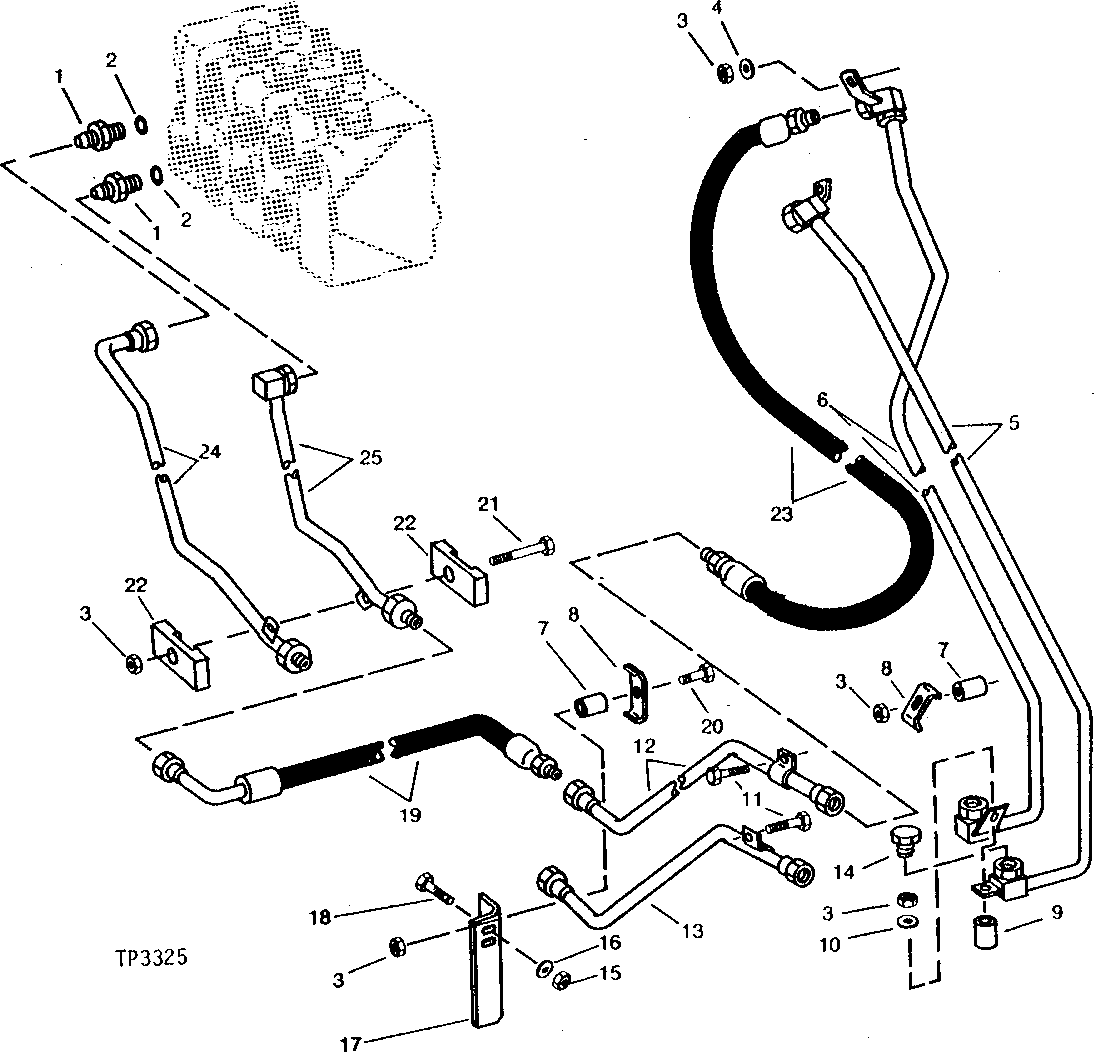

AUXILIARY CONTROL VALVE HYDRAULICS (SERIAL NO. -507140) (FOR USE WITH BOX SECTION BOOM) [03D02]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T30933	2	ADAPTER FITTING	-
2	R29936	2	O-Ring	-
3	T54568	8	Lock Nut	(SUB FOR T11234, THIS APPLICATION)
4	24H1682	2	Washer	13/32" X 7/8" X 0.120"
5	AT39308	1	OIL LINE	-
6	AT61919	1	TUBE	-
7	28H1909	3	SPACER	1/2" X 13/16"
8	T27022	3	Clamp	-
9	28H1521	1	Spacer	3/8" X 9/16"
10	24H1304	1	WASHER	13/32" X 23/32" X 0.120"
11	19H1648	2	Cap Screw	3/8" X 3/4"
12	AT61917	1	TUBE	-
13	AT61918	1	TUBE	-
14	T40710	2	FITTING	-
15	14H1076	2	Nut	3/8"
16	24H1308	2	Washer	13/32" X 1" X 0.134", (NOT REQUIRED THIS APPLICATION)
17	T64513	1	BRACKET	-
18	19H2633	2	Cap Screw	3/8" X 1-1/2"
19	AT63318	2	HYDRAULIC HOSE	-
20	19H2549	1	Cap Screw	3/8" X 1-7/8"
21	19H2732	1	Cap Screw	3/8" X 2-3/4"
22	T71348	2	CLAMP	-
23	AT39306	2	HYDRAULIC HOSE - FABRICATE	1 105 MM LONG (3/4" X 43-1/2")
24	AT61281	1	LINE	(SUB AT68177)
24	AT68177	1	TUBE	-
25	AT61279	1	LINE	(SUB AT68176)
25	AT68176	1	OIL LINE	-

AUXILIARY CONTROL VALVE HYDRAULICS (SERIAL NO. -507140) (FOR USE WITH BOX SECTION BOOM) [03D02]

Нет текстового описания
