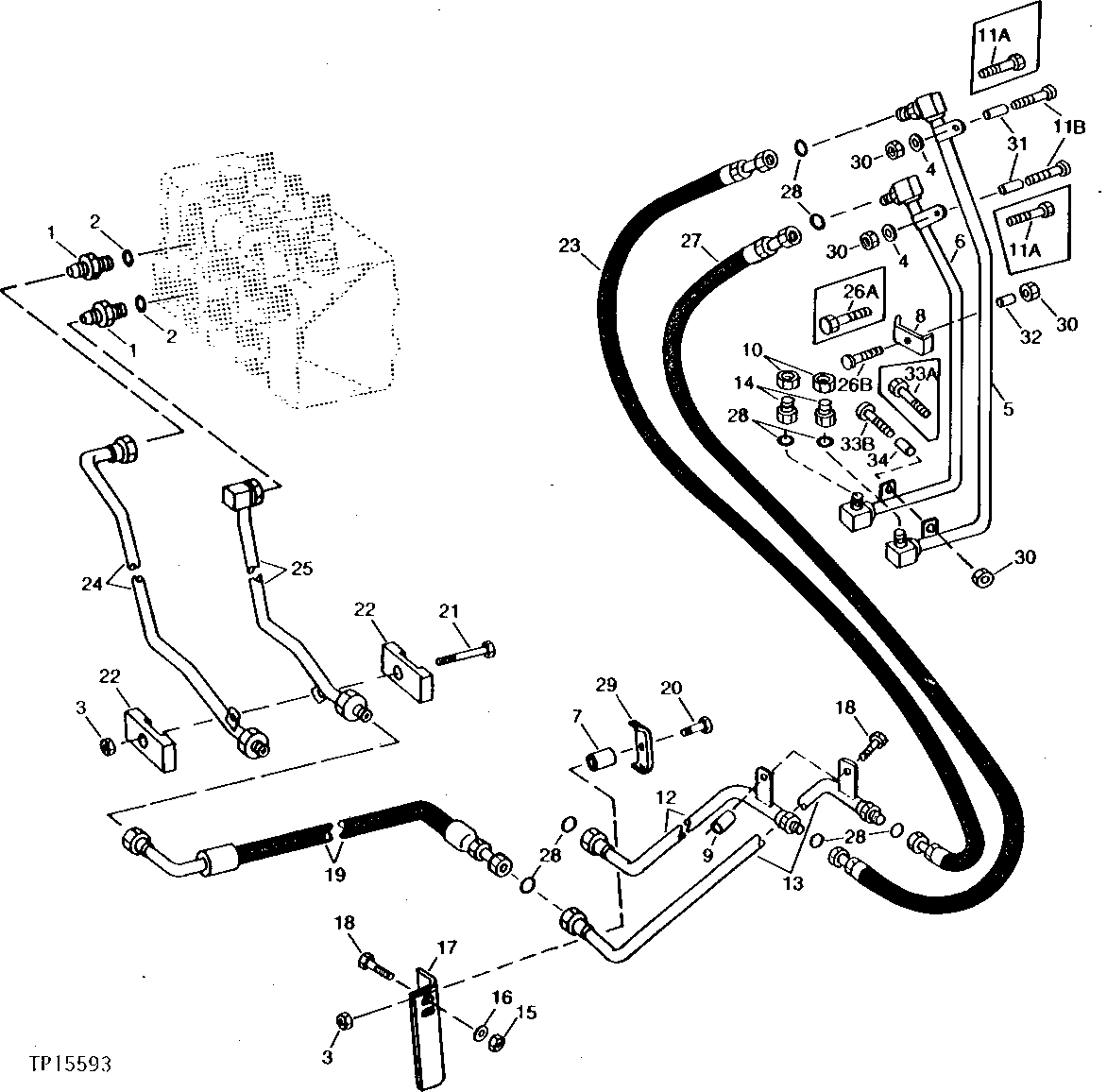

AUXILIARY CONTROL VALVE HYDRAULICS (FOR USE WITH FLAME CUT STYLE BOOM) (SERIAL NO. 507141- ) [03D04]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T30933	2	ADAPTER FITTING	-
2	R29936	2	O-Ring	-
3	T54568	8	Lock Nut	-
4	24H1850	3	Washer	17/32" X 1-1/4" X 0.180"
5	AT81494	1	TUBE	-
6	AT81495	1	TUBE	-
7	M16521	1	BUSHING	-
8	T32707	2	CLAMP	-
8	C11812	1	Clamp	(USE WITH AT85059) (SUB FOR C19333)
9	28H2481	1	Spacer	0.423" X 0.675" X 1/2"
9	M16521	1	BUSHING	-
10	38H1356	2	Tube Nut	-
12	AT81496	1	TUBE	-
13	AT81497	1	TUBE	-
14	38H1418	2	Fitting	(SUB FOR 38H1142)
15	14H1076	2	Nut	3/8"
16	24H1308	2	Washer	13/32" X 1" X 0.134"
17	T64513	1	BRACKET	-
18	19H2633	1	Cap Screw	3/8" X 1-1/2"
19	AT81491	2	HYDRAULIC HOSE	1-1/16" X 876 MM (34-1/2") X 1-3/16"
20	19H2549	1	Cap Screw	3/8" X 1-7/8"
21	19H2732	1	Cap Screw	3/8" X 2-3/4"
22	T71348	2	CLAMP	-
23	AT81485	1	HYDRAULIC HOSE - FABRICATE	1-3/16" X 1 168 MM (46") X 1-3/16"
24	AT68177	1	TUBE	-
25	AT68176	1	OIL LINE	-
27	AT81486	1	HYDRAULIC HOSE	1-3/16" X 1 320 MM (52") X 1-3/16"
28	T77858	8	O-Ring	-
29	A33911	1	HOSE CLAMP	-
30	14H1040	5	Nut	1/2", (USE WITH AT103546, AT85065 AND AT85059)
31	28H1583	2	BUSHING	0.824" X 1.050" X 2-7/8", (USE WITH AT103546)
32	28H1892	2	Bushing	0.622" X 0.840" X 5/8", (USE WITH C11812 AND AT85059)
34	28H2553	1	BUSHING	0.742" X 1.050" X 1-1/8", (USE WITH AT85065)
11A	19H3579	2	Cap Screw	1/2" X 1-3/8"
11B	AT103546	2	WELD STUD	(SUB FOR AT85066)
26A	19H1648	2	Cap Screw	3/8" X 3/4"
26B	AT85059	2	WELD STUD	(USE WITH C11812)
33A	19H2508	1	CAP SCREW	1/2" X 1-3/8"
33B	AT85065	1	WELD STUD	(USE WITH 28H2553)

AUXILIARY CONTROL VALVE HYDRAULICS (FOR USE WITH FLAME CUT STYLE BOOM) (SERIAL NO. 507141- ) [03D04]
