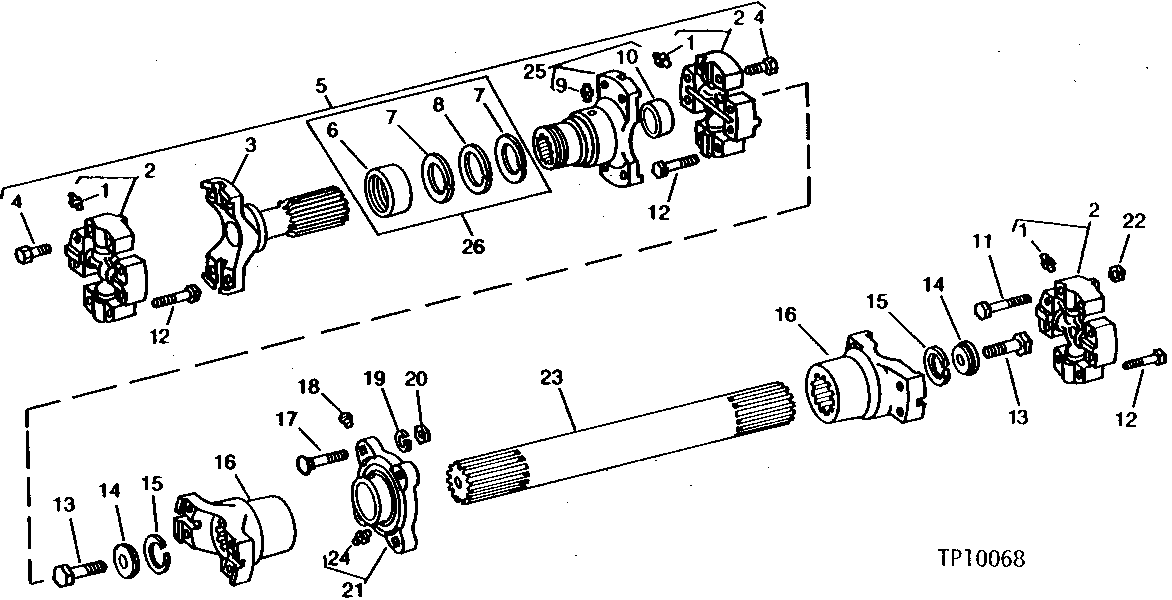

TRANSMISSION-TO-FRONT DIFFERENTIAL UNIVERSAL JOINT [01B17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	JD7842	3	Lubrication Fitting	-
2	AT25144	3	CROSS AND BEARING ASSEMBLY	-
3	T29338	1	UNIVERSAL JOINT YOKE	(SUB AT76670)
3	AT76670	1	UNIVERSAL JOINT YOKE	(USE IF AVAILABLE)
4	19H2960	8	Cap Screw	3/8" X 1-3/4"
5	AT27357	1	UNIVERSAL JOINT	(SUB AT76668)
5	AT76668	1	UNIVERSAL JOINT	-
6	T28388	1	RETAINER	FELT (SUB AT76671)
7	T28387	2	WASHER	FELT (SUB AT76671)
8	T28389	1	ISOLATOR	FELT (SUB AT76671)
9	JD7759	1	Lubrication Fitting	-
10	T28386	1	PLUG	-
11	19H3251	4	Cap Screw	3/8" X 2-1/4"
12	19H2960	12	Cap Screw	3/8" X 1-3/4"
13	19H1356	2	CAP SCREW	5/8" X 1-3/4"
14	T27134	2	WASHER	-
15	T27132	2	SNAP RING	-
16	T29337	2	UNIVERSAL JOINT YOKE	-
17	03H1764	4	Bolt	RD. HD., 1/2" X 1-3/4"
18	T27135	1	PIN	-
19	12H301	4	Lock Washer	1/2"
20	14H1040	4	Nut	1/2", (SUB FOR 14H809)
21	AT167717	1	BEARING WITH HOUSING	(SUB FOR AT25143 OR AT150856) (ALSO ORDER T149265 NO GREASE TAG (NOT ILLUSTRATED)
22	T27945	4	LOCK NUT	-
23	T29813	1	SHAFT	UNIVERSAL JOINT DRIVE
24	JD7842	1	Lubrication Fitting	-
25	AT27358	1	UNIVERSAL JOINT YOKE	(SUB AT76669)
25	AT76669	1	UNIVERSAL JOINT YOKE	-
26	AT76671	1	KIT	SEAL

TRANSMISSION-TO-FRONT DIFFERENTIAL UNIVERSAL JOINT [01B17]
