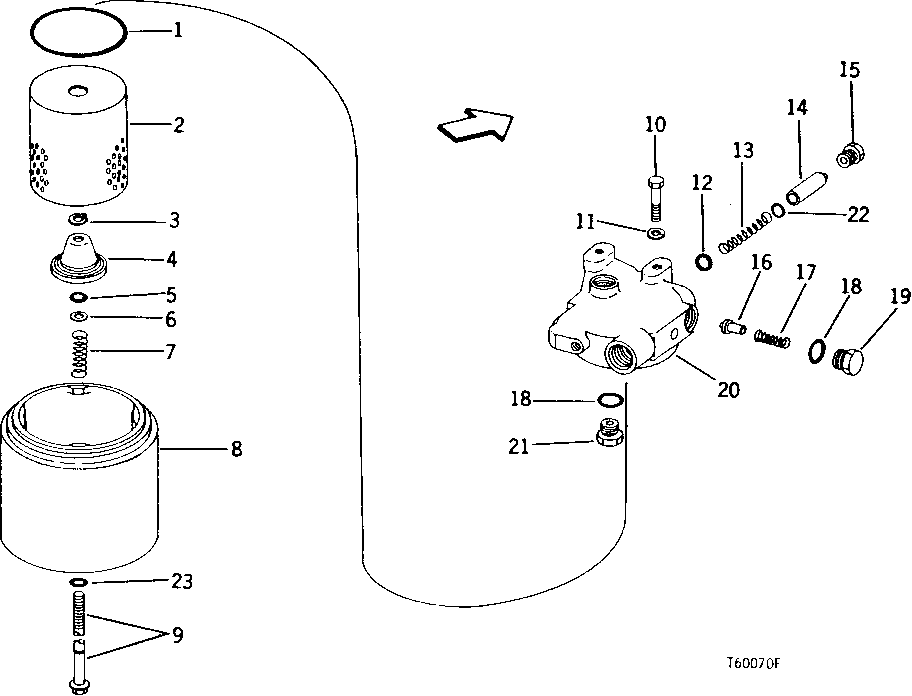

SUPPLEMENTARY HYDRAULIC OIL FILTER AND RELIEF VALVES (9450 BACKHOE) [02K19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R34733	1	WASHER	-
2	AR75603	1	FILTER ELEMENT	(SUB FOR AR75601)
3	R32507	1	Snap Ring	-
4	R28593	1	RETAINER	(USE WITH R394R ROUND CROSS-SECTION O-RING) (SUB R65892 AND F2741R)
4	R65892	1	RETAINER	(USE WITH F2741R SQUARE CROSS-SECTION O-RING)
5	R394R	1	O-Ring	(USE WITH R28593)
5	F2741R	1	Packing	(USE WITH R65892)
6	24H1227	1	Washer	17/32" X 13/16" X 0.060"
7	R66064	1	SPRING	(SUB FOR R1769R)
8	R51654	1	COVER	-
9	R82731	1	SCREW	(SUB FOR R54753)
10	19H2633	1	Cap Screw	3/8" X 1-1/2"
11	12H304	2	Lock Washer	3/8"
12	R26906	1	O-Ring	-
13	T27992	1	SPRING	-
14	R57559	1	VALVE	(ALSO ORDER R33259)
15	AT26172	1	PLUG	(NO LONGER AVAILABLE, ORDER R27474 AND T22850)
16	R40976	1	VALVE	-
17	R30776	1	SPRING	-
18	U12547	2	O-Ring	(SUB FOR (2) F3171R)
19	AT26171	1	PLUG	-
20	AT27078	1	HOUSING	WITH STEEL BALLS, (MARKED T27991)
21	R27175	1	Drain Plug	-
22	R33259	1	O-Ring	-
23	R394R	1	O-Ring	-

SUPPLEMENTARY HYDRAULIC OIL FILTER AND RELIEF VALVES (9450 BACKHOE) [02K19]
