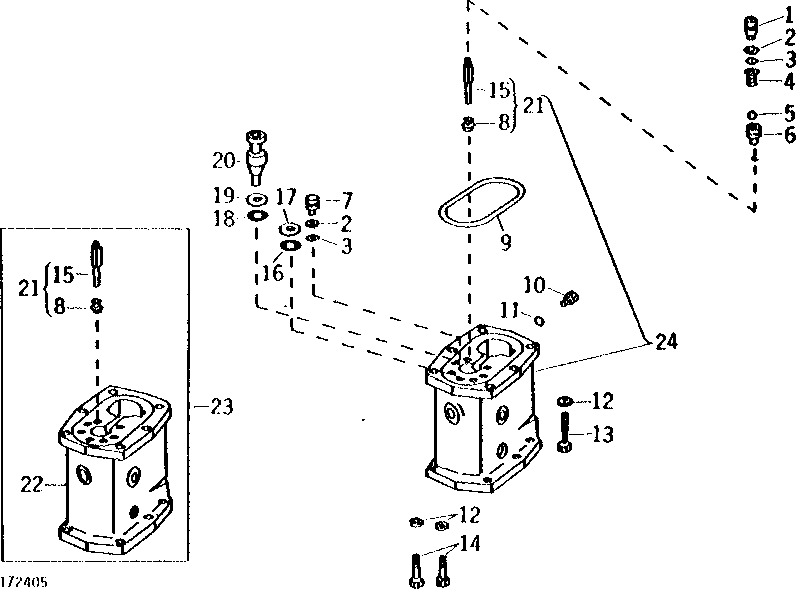

STEERING VALVE HOUSING (UPPER HALF) [01I01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R41724	4	PLUG	-
2	R32588	6	Back-Up Ring	(A)
3	R56464	6	O-Ring	(A)
4	R26565	4	COMPRESSION SPRING	-
5	400R	4	Ball	-
6	R59083	4	VALVE	(SUB FOR R28124)
6	R66635	4	VALVE	-
7	R34131	2	Plug	-
8	AR78483	4	GUIDE	-
9	R34733	1	WASHER	(A)
10	R27216	2	DRAIN PLUG	-
11	R26287	1	O-Ring	(A)
12	12H301	6	Lock Washer	1/2"
13	19H1990	4	Cap Screw	HS, SAE 8, 1/2" X 2-1/4" (SUB FOR R48784)
14	19H2993	2	Cap Screw	1/2" X 1-1/2", (SUB FOR R48785)
15	-	2	Part 16	(SUB AR49535 OR AR49536)
16	A4365R	1	O-Ring	(A)
17	R34129	1	Back-Up Ring	(A)
18	R56462	1	O-Ring	(A)
19	R26546	1	BACK-UP RING	(A)
20	R59663	1	PLUG	-
21	AR49535	2	SHAFT	76 MM (3") METERING, UPPER WITH GUIDE
21	AR49536	2	SHAFT	38 MM (1-1/2") METERING, LOWER WITH GUIDE
22	R42115	1	HOUSING	STEERING VALVE
23	AT66849	1	HOUSING	STEERING GUIDE W/GUIDES AND METERING SHAFTS
24	AR101691	1	HOUSING	(MARKED R37425) (SUB FOR AR37080 AND AR101690) (ALSO ORDER (2) R40359 AND (2) R40460)
..	AR63142	1	VALVE	(A) (SUB AR86940) STEERING ASSEMBLY
..	AR86940	1	VALVE	(A) STEERING ASSEMBLY
..	AT59906	1	KIT	STEERING VALVE REPLACEMENT

STEERING VALVE HOUSING (UPPER HALF) [01I01]
