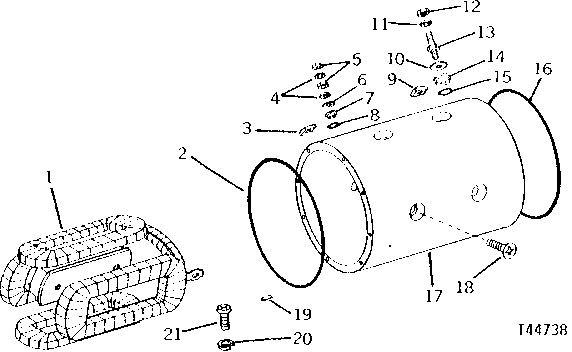

STARTING MOTOR MAIN FRAME AND COIL (JOHN DEERE) [01G01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE13731	1	FIELD WINDING COIL	-
1	AR54996	1	FIELD WINDING COIL	(A)
2	R50913	1	O-RING	-
3	R50916	1	WASHER	(A)
4	12H246	2	LOCK WASHER	(A) 0.190"
5	R50907	2	NUT	(A)
6	24H1283	1	Washer	(A) 7/32" X 1/2" X 0.049"
7	R50914	1	WASHER	(A)
8	R50915	1	O-RING	(A)
9	R50920	1	BUSHING	(A)
10	R50917	1	WASHER	(A)
11	R50899	1	LOCK WASHER	-
12	R50909	1	NUT	-
13	R56802	1	STUD	(A) (SUB FOR R52386)
14	R50918	1	WASHER	(A)
15	R50919	1	O-Ring	(A)
16	R50922	1	O-RING	-
17	-	1	Part 18	(SUB AR68732)
18	R50921	8	SCREW	(A)
19	R51664	1	DOWEL PIN	(A)
20	12H246	1	LOCK WASHER	0.190"
21	R50931	1	SCREW	-
..	AR77254	1	STARTER MOTOR	(12-VOLT) (JOHN DEERE) (SUB RE41875, THIS APPLICATION)
..	RE13722	1	STARTER MOTOR	(12-VOLT) (NEW) (JOHN DEERE) (SUB RE41875 OR TY6701 OR TY6713, THIS APPLICATION)
..	TY6710	1	STARTER MOTOR	(12-VOLT) (REMANUFACTURED) (DELCO-REMY) (INCLUDES SOLENOID COVER KIT) (SUB FOR TY6667)
..	TY6701	1	STARTER MOTOR	(12-VOLT) (REMANUFACTURED) (DELCO-REMY) (INCLUDES SOLENOID COVER KIT)
..	TY6713	1	STARTER MOTOR	(12-VOLT) (REMANUFACTURED) (JOHN DEERE) (INCLUDES SOLENOID COVER KIT)
..	RE41875	1	Starter Motor	(12-VOLT) (NEW) (JOHN DEERE) (INCLUDES STARTER AND COVER KIT)
..	AR68732	1	FIELD WINDING COIL	-

STARTING MOTOR MAIN FRAME AND COIL (JOHN DEERE) [01G01]
