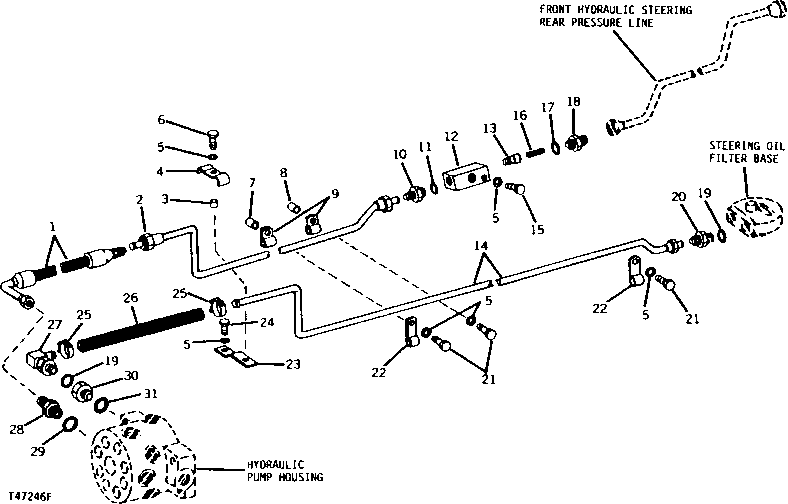

REAR HYDRAULIC STEERING LINES [01I08]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT25596	1	HOSE	STEERING, PRESSURE LINE TO STEERING PUMP
2	AT26363	1	LINE	STEERING PRESSURE
3	28H1518	1	Washer	0.493" X 0.675" X 5/16"
4	T27282	1	CLAMP	-
5	12H304	5	Lock Washer	3/8"
6	19H2676	1	Cap Screw	3/8" X 1"
7	28H1495	1	Spacer	3/8" X 1"
8	28H2522	1	Spacer	3/8" X 13/16"
9	T24958	2	Clip	COATED, STEERING PRESSURE LINE
10	R27237	1	Fitting	-
11	R26375	1	O-Ring	-
12	T28260	1	HOUSING	CHECK VALVE
13	T29512	1	CHECK VALVE	-
14	AT26174	1	LINE	(REAR) STEERING
15	19H2021	1	Cap Screw	3/8" X 5/8"
16	F3322R	1	SPRING	-
17	R26906	1	O-Ring	-
18	R31665	1	Fitting	-
19	U12547	1	O-Ring	(SUB FOR F3171R)
20	R27267	1	Fitting	-
21	19H3217	2	Cap Screw	3/8" X 1-3/4"
22	T27523	4	Clamp	STEERING RETURN LINE
23	AT25321	1	BRACKET	-
24	19H2676	1	Cap Screw	3/8" X 1"
25	AR21839	2	Clamp	-
26	T22957	1	HOSE	19 MM X 368 MM (3/4" X 14-1/2") STEERING RETURN
27	AT21574	1	Fitting	90° ADJUSTABLE
28	R27270	1	Fitting	-
29	R26906	1	O-Ring	-
30	T27517	1	Adapter Fitting	-
31	U13639	1	O-Ring	-

REAR HYDRAULIC STEERING LINES [01I08]

Нет текстового описания
