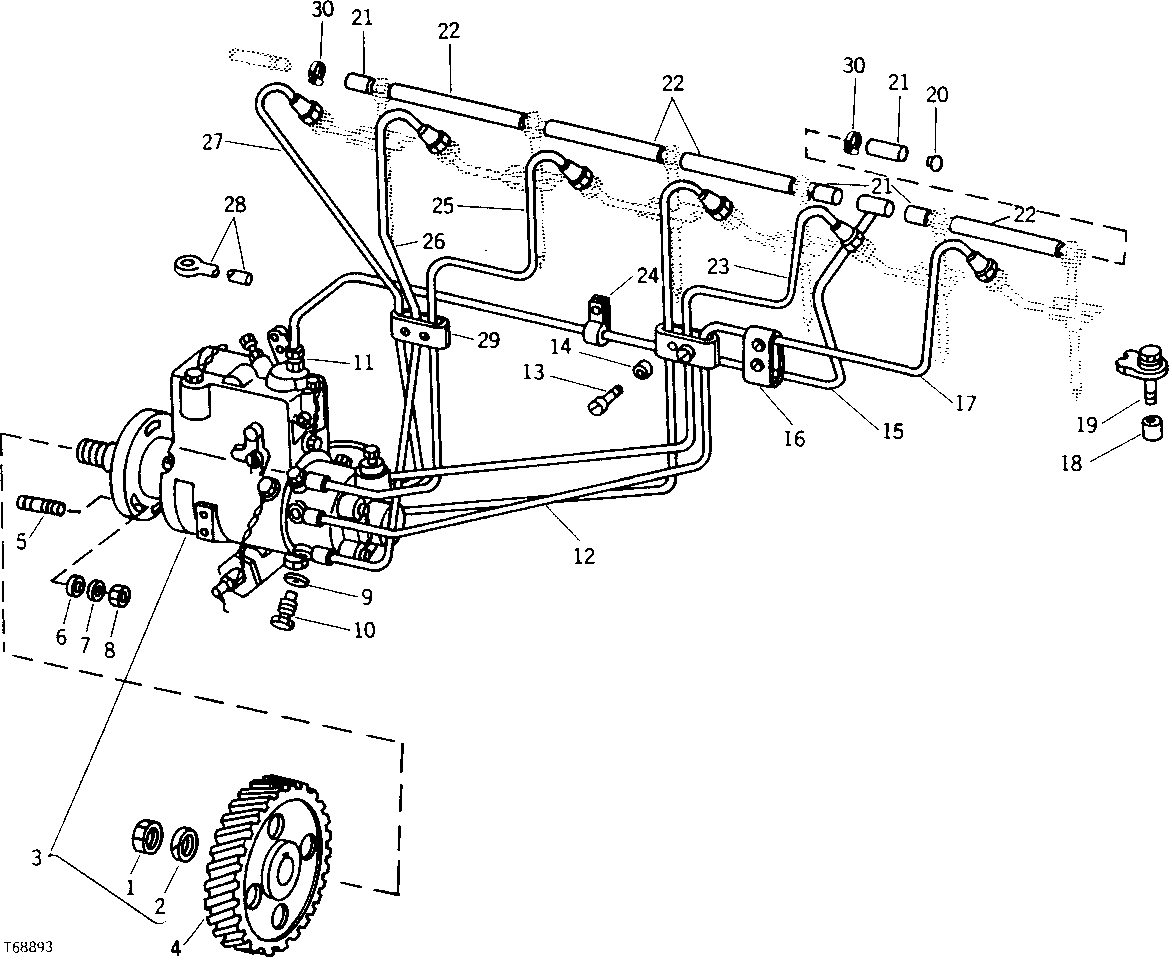

FUEL INJECTION SYSTEM (ENGINE SERIAL NO. -514597) [01E17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R48599	1	NUT	-
2	R132874	1	Washer	(SUB FOR R48600)
3	SE500562	1	FUEL INJECTION PUMP	(REMANUFACTURED)
3	AR55147	1	FUEL INJECTION PUMP	(ROOSA-MASTER NO. JDB635MD-2804)
4	R84663	1	GEAR	(SUB FOR T20165) (48 TEETH)
5	T20052	2	STUD	-
6	24M7096	2	Washer	0.413" X 0.709" X 0.063"
7	12H304	2	Lock Washer	3/8"
8	14H812	2	NUT	3/8"
9	T20055	12	WASHER	-
10	R26726	6	HOLLOW SCREW	-
11	R48008	1	ELBOW FITTING	-
12	AR68965	1	FUEL LINE	-
13	21H1317	6	SCREW	0.190" X 5/8", (USE WITH T23460 AND T23461)
13	AR76704	6	SCREW	-
14	12H246	6	LOCK WASHER	0.190", (USE WITH T23460 AND T23461)
15	AR49918	1	LINE	-
16	R61145	3	Strap	-
16	R59297	3	Half Clamp	-
16	T23461	1	HALF CLAMP	(SUB R59298, R61145, (2) R59297 AND (2) AR76704)
17	AR68967	1	FUEL LINE	-
18	R34761	6	SPACER	(K1) (SUB (6) RE13887, THIS APPLICATION) (SUB RE32011)
18	R60745	6	SPACER	(K) (USE AFTER RE13887 HAS BEEN INSTALLED)
19	R34760	6	CLAMP	-
20	16H246	1	Rivet	3/16" X 3/8"
21	-	4	Part 26	(MAKE FROM R68281) (SUB FOR AT32064)
22	-	4	Part 27	(MAKE FROM R68281) (SUB FOR AT32064)
23	AR68966	1	FUEL LINE	-
24	T29969	2	Clamp	-
25	AR68964	1	FUEL LINE	-
26	AR68963	1	FUEL LINE	-
27	AR68962	1	FUEL LINE	-
28	AR49907	1	WIRING LEAD	-
29	T23460	3	HALF CLAMP	(SUB R59298, R61145, (2) R59297 AND (2) AR76704)
29	R59297	3	Half Clamp	-
29	R59298	3	Strap	-
30	TY22462	2	Clamp	(SUB FOR AR48236)
