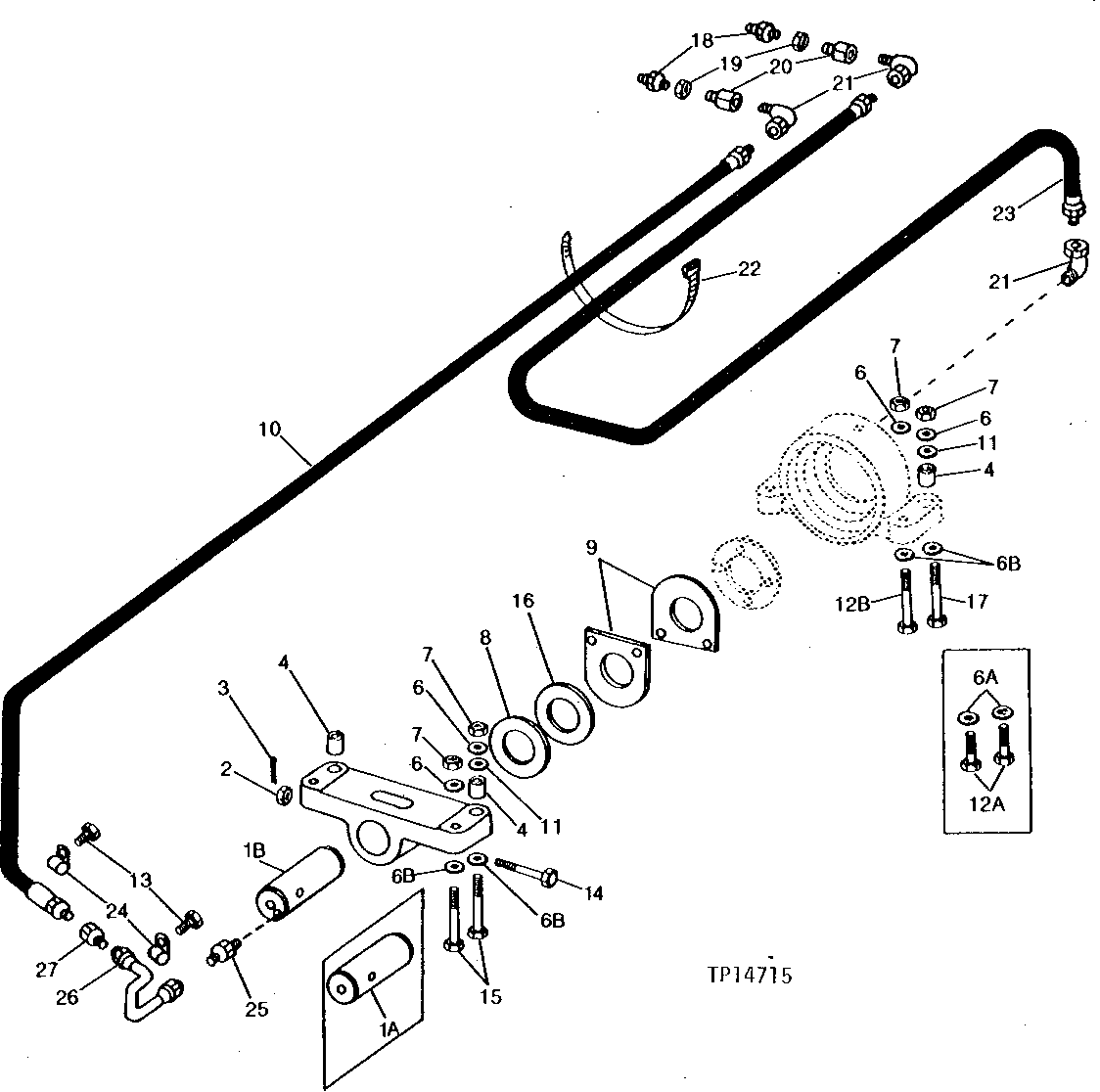

DIFFERENTIAL SUPPORTS AND LUBRICATING LINES [01B06]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
2	14H994	1	NUT	1/2"
3	11M7015	1	Cotter Pin	3.200 X 25 MM
4	T20431	4	BUSHING	-
5	T27122	1	SUPPORT	(SUB T68599, (2) T68617 AND A5598R)
5	T68599	1	SUPPORT	-
7	K40015	8	Lock Nut	-
8	T27125	1	WASHER	-
9	T64255	2	PLATE	(SUB FOR T40420)
9	T68617	2	PLATE	-
10	AT64884	1	Hydraulic Hose	1/8" X 2 000 MM (78-3/4") X 1/8"
11	-	4	Part 15	( T24463 NO LONGER AVAILABLE)
13	19H2021	2	Cap Screw	3/8" X 5/8"
13	AR92435	1	SUPPORT	(MARKED R70450) (SUB AR105477) (ALSO ORDER (4) 19M7831, (4) 14M7300, (2) 30251 AND (2) T30009)
14	T27515	1	BOLT	-
15	19H2726	4	Cap Screw	5/8" X 4"
16	T57548	1	SHIM	-
17	19H2969	2	Cap Screw	HS, SAE 8, 5/8" X 3-1/2"
18	JD7797	2	Lubrication Fitting	-
19	E12379	2	Nut	-
20	R36311	2	Fitting	-
21	T56112	3	Elbow Fitting	-
22	R44302	4	Tie Band	-
23	AT53541	1	Hydraulic Hose	1/8" X 1 490 MM (58-3/4") X 1/8"
24	T74410	2	Clamp	(SUB FOR T14264, THIS APPLICATION)
25	R27346	1	Fitting	-
26	AT64883	1	LINE	-
27	T68040	1	ADAPTER FITTING	-
1A	T27123	1	PIN	-
1B	AT86424	1	PIN FASTENER	(SUB FOR T65337)
6A	R1836R	16	Washer	-
6B	24M7241	16	Washer	17 X 34 X 4 MM, (SUB FOR T19584 AND T40728)
12A	19H2641	4	Cap Screw	5/8" X 3-1/4"
12B	19H2641	2	Cap Screw	5/8" X 3-1/4"

DIFFERENTIAL SUPPORTS AND LUBRICATING LINES [01B06]

Нет текстового описания
