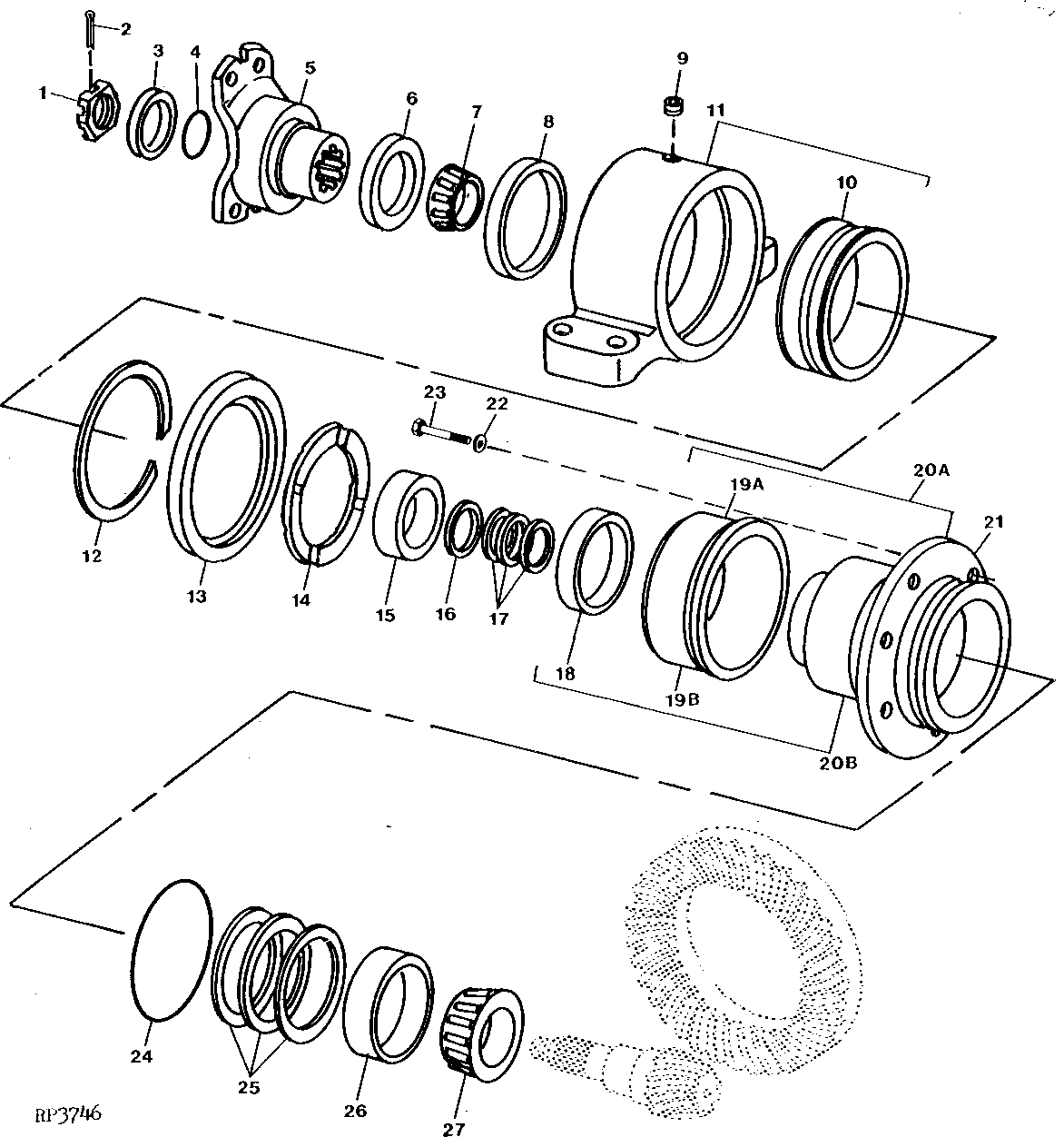

DIFFERENTIAL OSCILLATING SUPPORT AND UNIVERSAL YOKE WITH QUILL [01B10]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R48776	1	Nut	-
2	11M7032	1	Cotter Pin	5 X 50 MM
3	R48734	1	Washer	6.30 MM (.248")
3	R48735	1	Washer	6.22MM (.245")
3	R48733	1	Washer	6.35 MM (.250")
4	U10289	1	O-Ring	-
5	R98660	1	UNIVERSAL JOINT YOKE	(SUB FOR R42050) (SUB RE45314) (ALSO ORDER (4) 19H2957)
6	R37410	1	Seal	(SUB RE45312)
7	JD8974	1	Bearing Cone	-
8	AR69355	1	SEAL	(REAR) (SUB FOR AR52259)
8	AR92437	1	Seal	(REAR)
9	15H558	1	Pipe Plug	1/8"
10	R55522	1	Bushing	-
10	R70454	1	Bushing	-
11	AR87839	1	SUPPORT	(MARKED R67429) (SUB FOR AR64844) (MARKED R48579)
11	AR105477	1	SUPPORT	(MARKED R76813 OR R70450) (SUB FOR AR92435) (ALSO ORDER (4) 19M7831, (4) 14M7300, (2) 30251 AND (2) T30009)
12	R42227	1	Snap Ring	(REAR)
13	AR52258	1	SEAL	(REAR)
13	AR94169	1	Seal	(REAR)
14	R56298	1	Thrust Washer	(REAR)
15	JD8240	1	Bearing Cup	-
16	R135535	1	Spacer	(SUB FOR R45201)
17	R45197	1	Shim	0.18 MM (.007")
17	R45198	1	Shim	0.25 MM (.010")
17	R45199	1	Shim	0.30 MM (.012")
17	R45200	1	Shim	0.38 MM (.015")
18	R70453	1	Sleeve	WEAR
21	RE35234	1	BEARING HOUSING W/O BEARING	(FRONT) (MARKED R92815) (SUB FOR R41924 AND R92176)
22	R47172	6	Washer	-
23	R48783	6	CAP SCREW	-
24	R27796	1	O-Ring	-
25	-	1	Part 37	(A) ( R26228 NO LONGER AVAILABLE) 0.18 MM (.005")
25	-	1	Part 36	(A) ( R26227 NO LONGER AVAILABLE) 0.08 MM (.003")
26	JD8264	1	Bearing Cup	-
27	JD8970	1	Bearing Cone	-
19A	R48583	1	SLEEVE	(REAR)
19B	R70452	1	Sleeve	-
20A	AR51808	1	BEARING HOUSING W/O BEARING	(REAR)
20B	RE35234	1	BEARING HOUSING W/O BEARING	(REAR) (MARKED R70448 OR R92815)

DIFFERENTIAL OSCILLATING SUPPORT AND UNIVERSAL YOKE WITH QUILL [01B10]
