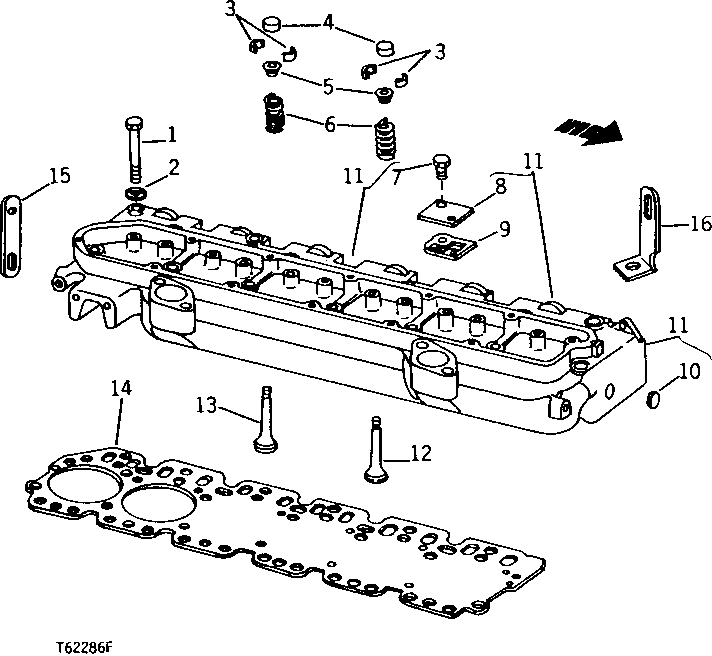

CYLINDER HEAD, HEAD GASKET AND VALVES [01E09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R53223	23	CAP SCREW	1/2" X 4-1/4"
2	T20168	23	Washer	-
3	T20077	24	Retainer	-
4	T20129	12	Cap	-
5	R41412	12	CAP	(SUB FOR T20176)
6	R26125	12	Spring	-
7	19H1648	2	Cap Screw	3/8" X 3/4"
8	R56725	1	COVER	-
9	R54641	1	Gasket	-
10	A3910R	2	PLUG	-
11	AR65596	1	CYLINDER HEAD	(MARKED R55950)
12	R79625	6	EXHAUST VALVE	0.08 MM (.003") OVERSIZE STEM, (SUB FOR R57333)
12	R87627	6	O-RING	EXHAUST, (SUB FOR R27976, THIS APPLICATION) (USE WITH R79624, R79625, R79626 AND R79627) (NOT ILLUSTRATED)
12	-	6	Part 15	( R79627 NO LONGER AVAILABLE) 0.76 MM (.030") OVERSIZE STEM, (SUB FOR R57337)
12	R79626	6	EXHAUST VALVE	0.38 MM (.015") OVERSIZE STEM, (SUB FOR R57335)
12	R79624	6	EXHAUST VALVE	(SUB FOR R52252)
13	R79623	6	Intake Valve	(SUB FOR R52251)
13	R79628	6	INTAKE VALVE	0.08 MM (.003") OVERSIZE STEM, (SUB FOR R57332)
13	R79629	6	INTAKE VALVE	0.38 MM (.015") OVERSIZE STEM, (SUB FOR R57334)
13	-	6	Part 20	( R79630 NO LONGER AVAILABLE) 0.76 MM (.030") OVERSIZE STEM, (SUB FOR R57336)
13	R87627	6	O-RING	INTAKE, (SUB FOR R27976, THIS APPLICATION) (USE WITH R79623, R79628, R79629 AND R79630) (NOT ILLUSTRATED)
14	R91880	1	GASKET	(SUB FOR R59449 AND R80243)
15	-	1	Part 23	-
16	-	1	Part 24	-

CYLINDER HEAD, HEAD GASKET AND VALVES [01E09]
