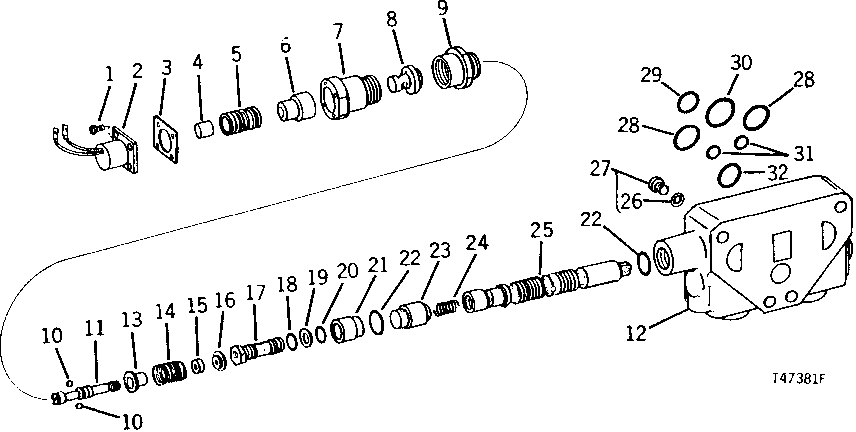

CONTROL VALVE (BUCKET SECTION WITH SPOOL ASSEMBLY) [02H17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	21H1307	4	SCREW	0.164" X 7/16"
2	AT52533	1	SOLENOID	-
3	T42791	1	SHIM	0.13 MM(.005")
3	T42792	1	SHIM	0.25 MM (.010")
3	T42790	1	SHIM	0.08 MM (.003")
4	-	1	Part 6	(SUB AT52533)
5	T42785	1	SPRING	-
6	T54570	1	DETENT	(SUB T62469)
6	T62469	1	DETENT	(ALSO ORDER AT59798)
7	AT41714	1	CAP	(SUB T62469 AND AT59798, THIS APPLICATION)
7	AT59798	1	CAP	-
8	T66588	1	RETAINER	(SUB FOR T42784)
9	T42781	1	CAP	-
10	T42787	4	BALL	-
11	T42783	1	SCREW	-
12	-	1	Part 16	(SUB AT59804)
13	H26238	1	GUIDE	-
14	U11336	1	SPRING	-
15	U41302	1	WASHER	-
16	U15959	1	WASHER	-
17	T27623	1	PLUG	-
18	R375R	1	O-Ring	(SUB FOR T42786)
19	T27624	1	BACK-UP RING	-
20	P51212	1	O-Ring	-
21	U15966	1	BUSHING	-
22	T27619	2	O-RING	-
23	T27622	1	CHECK VALVE	-
24	U41170	1	SPRING	-
25	-	1	Part 29	(SUB AT59804)
26	T42789	2	O-Ring	-
27	AT41716	2	Plug	-
28	U15973	2	O-Ring	-
29	L34378	4	O-Ring	(SUB FOR T42793 AND T36492)
30	U15975	1	O-Ring	-
31	L34378	2	O-Ring	(SUB FOR T36492)
32	U15974	1	O-Ring	-
..	AT54181	1	VALVE	(SUB AT59804)
..	AT59804	1	SPOOL VALVE	-
..	AT41720	1	KIT	VALVE REPAIR (BUCKET SECTION)
..	AT41723	1	SEAL KIT	MAJOR REPAIR (THREE-SPOOL)

CONTROL VALVE (BUCKET SECTION WITH SPOOL ASSEMBLY) [02H17]
