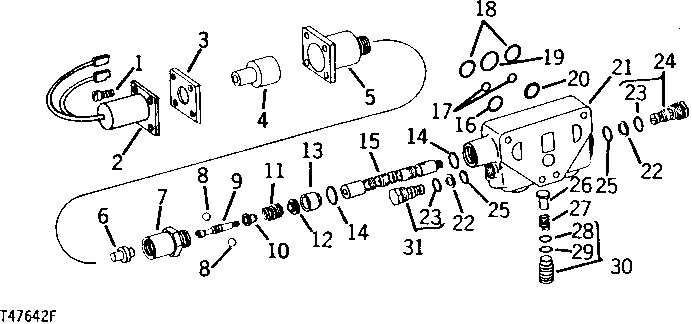

CONTROL VALVE (BOOM SECTION) (WITH BOOM RAISE DETENT) [02H15]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	21H1307	4	SCREW	(B) 0.164" X 7/16"
2	AT52533	1	SOLENOID	(B)
3	T42791	1	SHIM	(B) 0.13 MM (.005")
3	T42792	1	SHIM	(B) 0.25 MM (.010")
3	T42790	1	SHIM	(B) 0.08 MM (.003")
4	T54570	1	DETENT	(B) (SUB T62469)
4	T62469	1	DETENT	(ALSO ORDER AT59798)
5	AT41714	1	CAP	(B) (SUB T62469 AND AT59798, THIS APPLICATION)
5	AT59798	1	CAP	-
6	T66588	1	RETAINER	(SUB FOR T42784)
7	T42781	1	CAP	(B)
8	T42787	4	BALL	(B)
9	T49507	1	SCREW	(B) (SUB T62471)
9	T62471	1	SCREW	-
10	H26238	1	GUIDE	-
11	U11336	1	SPRING	-
12	U15959	1	WASHER	-
13	U15966	1	BUSHING	-
14	T27619	2	O-RING	-
15	-	1	Part 20	(SUB AT35431)
16	U15974	1	O-Ring	-
17	L34378	2	O-Ring	(SUB FOR T36492)
18	U15973	2	O-Ring	-
19	U15975	1	O-Ring	-
20	L34378	1	O-Ring	(SUB FOR T42793 AND T36492)
21	-	1	Part 26	(SUB AT35431)
22	U40727	2	BACK-UP RING	-
23	32240	2	O-Ring	-
24	AT54363	1	PRESSURE RELIEF VALVE	189 BAR (2750 PSI)
25	P47908	2	O-Ring	-
26	T27618	1	PLUNGER	-
27	U15961	1	SPRING	-
28	U15980	1	O-Ring	-
29	U15981	1	BACK-UP RING	-
30	AU13386	1	HOUSING	-
31	AT25845	1	CHECK VALVE	-
..	AT35431	1	SPOOL VALVE	-
..	AT41717	1	KIT	PORT PLATE REPAIR, (SUB T42800 O-RING, P51079 O-RING AND H21957 O-RING)
..	AT41722	1	KIT	BETWEEN SECTION, (SUB FOR AT41718)
..	AT41719	1	KIT	VALVE REPAIR (BOOM SECTION)
..	AT41721	1	SEAL KIT	MAJOR REPAIR (TWO-SPOOL) (SUB AT41721)
..	AT41723	1	SEAL KIT	MAJOR REPAIR (THREE-SPOOL)
..	AT52534	1	KIT	SOLENOID DETENT RELEASE (WITH BOOM RAISE DETENT RELEASE)
..	AT59802	1	KIT	SOLENOID DETENT RELEASE (WITH BOOM RAISE DETENT RELEASE)
