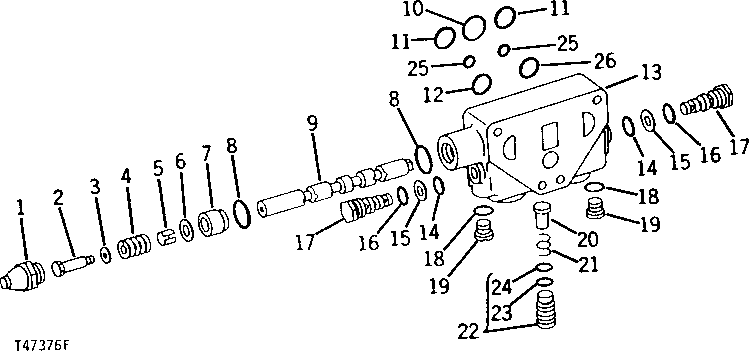

CONTROL VALVE (AUXILIARY VALVE SECTION) [02H19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	U15960	1	CAP	(A)
2	U15967	1	SCREW	(A)
3	H35233	1	Washer	(A)
4	U11336	1	SPRING	(A)
5	-	1	Part 5	(A) ( N31761 NO LONGER AVAILABLE)
6	U15968	1	WASHER	(A)
7	T27628	1	BUSHING	(A)
8	R375R	2	O-Ring	(A) (SUB FOR T42786)
9	-	1	Part 9	(SUB AT35433)
10	U15975	1	O-Ring	(A)
11	U15973	2	O-Ring	(A)
12	U15974	1	O-Ring	(A)
13	-	1	Part 13	(SUB AT35433)
14	P47908	2	O-Ring	(A)
15	U40727	2	BACK-UP RING	(A)
16	32240	2	O-Ring	(A)
17	AT26445	2	PRESSURE RELIEF VALVE	(A) 172 BAR (2500 PSI)
18	R375R	2	O-Ring	(A)
19	AT25853	2	PLUG	(A)
20	T27618	1	PLUNGER	(A)
21	U15961	1	SPRING	(A)
22	AU13386	1	HOUSING	(A)
23	U15981	1	BACK-UP RING	(A)
24	U15980	1	O-Ring	(A)
25	L34378	2	O-Ring	(A) (SUB FOR T36492)
26	L34378	1	O-Ring	(A) (SUB FOR T42793 AND T36492)
..	AT35433	1	SPOOL VALVE	(A) (INCLUDES KEYS 1,2,3,4,5,6,7,14,15,16, 19,20,21 AND 22)
..	AT41723	1	SEAL KIT	MAJOR REPAIR (THREE-SPOOL)
..	AT41724	1	KIT	(A) REPAIR VALVE (AUXILIARY SECTION) (INCLUDES KEYS 8,14,15,16,23 AND 24)
..	-	1	Part 30	THIRD FUNCTION HYDRAULIC ( AT45551 NO LONGER AVAILABLE)

CONTROL VALVE (AUXILIARY VALVE SECTION) [02H19]
