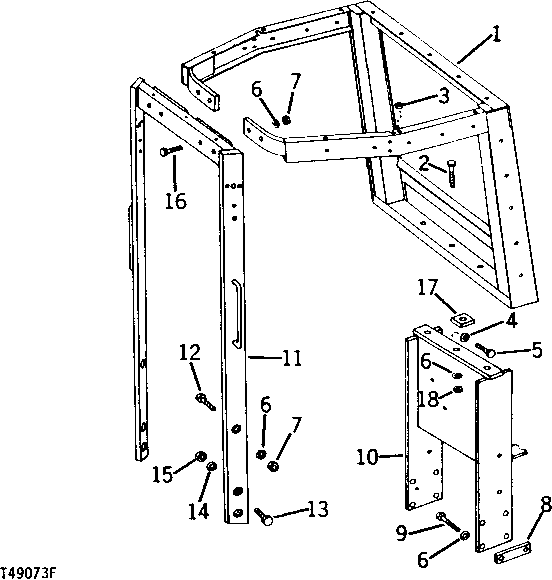

CAB AND CANOPY FRAME ASSEMBLY [02D16]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT58538	1	FRAME	REAR
1	AT26229	1	FRAME	(SUB AT58538) REAR
2	19H2728	3	Cap Screw	3/4" X 3"
3	-	2	Part 4	(CANOPY) HOLE ( T30017 USE IF AVAILABLE)
4	12H301	2	Lock Washer	1/2"
5	19H2993	2	Cap Screw	1/2" X 1-1/2"
6	12H236	17	Lock Washer	3/4"
7	14H794	6	Nut	3/4"
8	-	4	Part 9	( T28085 USE IF AVAILABLE)
9	19H1685	8	CAP SCREW	3/4" X 2-1/4"
10	-	1	Part 11	REAR ( AT39418 USE IF AVAILABLE)
11	AT39011	1	FRAME	(CANOPY) FRONT WITH HANDLES AND ROLL-OVER PROTECTIVE STRUCTURE LABELS
11	AT39010	1	FRAME	(CAB) FRONT, WITH ROLL-OVER PROTECTIVE STRUCTURE LABELS WITHOUT HANDLES
12	03H2234	2	Bolt	3/4" X 2", C6E.
13	19H2089	4	CAP SCREW	7/8" X 2-3/4"
14	12H245	4	Lock Washer	7/8"
15	14H836	4	NUT	7/8"
16	19H2431	4	CAP SCREW	3/4" X 2-1/4", (SUB FOR 19H1782)
17	T28086	3	STRAP	-
18	14H1058	3	Nut	3/4", (SUB FOR 14H400)
..	-	1	Part 21	ATTACHING PARTS AND HARDWARE ( AT39471)
..	-	1	Part 22	CANOPY, (INCLUDES T57382) (ALSO OSHA ROPS LABEL AND T43705 CAUTION LABEL) ( AT39466)
..	-	1	Part 23	INSTALLATION, (INCLUDES AT39466 FRAME, T40841 ROOF, (14) T19179 CAP SCREWS, AND (14) 24H1306 WASHERS) (DOES NOT INCLUDE AT39418 REAR SUPPORT) ( AT39467)
