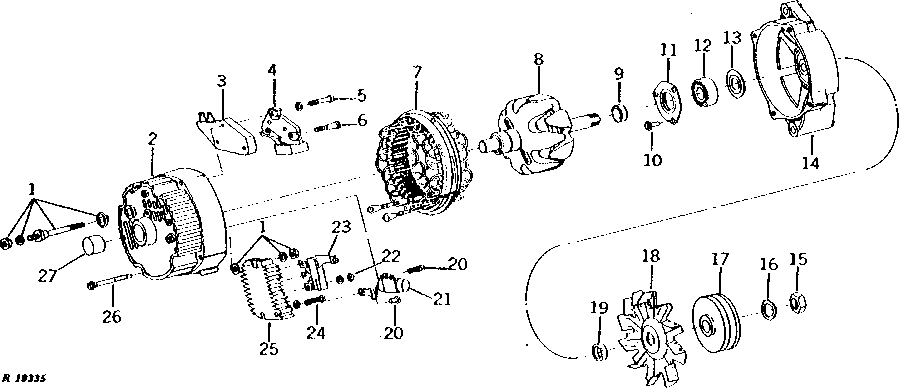

ALTERNATOR WITH REGULATOR (DELCO-REMY NOS. 1100491 AND 1100580) [02B08]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR93945	1	Elec. Connector Terminal	OUTPUT ASSEMBLY, (ALSO ORDER R71248) (SUB FOR AR55834)
2	R51529	1	HOUSING	REAR
3	AR55827	1	Voltage Regulator	(12-VOLT)
4	AR69269	1	BRUSH	-
5	R51531	1	SCREW	BRUSH HOLDER GROUND
5	12H290	1	Washer	0.164", INTERNAL TOOTH
6	R51530	2	Screw	BRUSH HOLDER, INSULATED
7	AR55837	1	STATOR	(SUB FOR AR55829 AND AR85940)
8	AR78093	1	ROTOR	-
9	R51532	1	ECCENTRIC LOCKING COLLAR	INNER
10	21H1301	3	SCREW	0.190" X 1/2", MACH., PAN HEAD
11	AR55836	1	RETAINER	BEARING
12	JD9449	1	Ball Bearing	(SUB FOR AT23188) FRONT
13	R51534	1	SHIM	-
14	R51528	1	HOUSING	(SUB R71399 AND R69645) FRONT
14	R71399	1	Housing	(SUB FOR R69644) FRONT
15	R11049	1	Nut	-
16	T10745	1	Washer	-
17	T42171	1	Pulley	-
18	R50659	1	Fan	-
19	R69645	1	Washer	(SUB FOR R51535, THIS APPLICATION) BEARING OUTER
20	37H1	2	SCREW	1/8" X 3/8", TAPPING, PAN HEAD
21	AR55835	1	Capacitor	-
22	14H605	3	Nut	0.164"
22	12H290	3	Washer	0.164", INTERNAL TOOTH
23	AR55831	1	DIODE	TRIO, NEGATIVE
24	21H1319	1	Screw	0.164" X 7/8", MACH. PAN HEAD
24	12M7084	1	Lock Washer	4.300 MM, INTERNAL TOOTH
25	AR55832	1	RECTIFIER	BRIDGE POSITIVE
26	R51535	4	Cap Screw	THROUGH
27	AR77851	1	Cylindrical Roller Bearing	WITH SEAL
..	AR54796	1	ALTERNATOR	(SUB AT58321) (12-VOLT) (61-AMPERE) (ALTERNATOR) WITH REGULATOR, LESS FAN AND PULLEY

ALTERNATOR WITH REGULATOR (DELCO-REMY NOS. 1100491 AND 1100580) [02B08]
