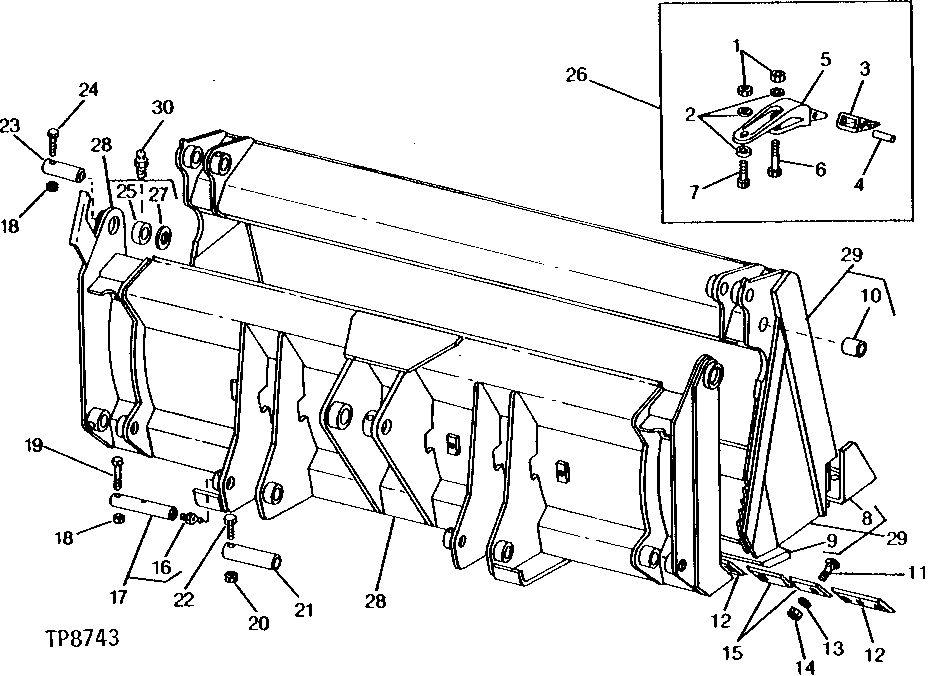

1-1/2 YARD (1.2 M3) MULTI-PURPOSE BUCKET [02G22]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	U14555	16	Lock Nut	(C) (USE WITH AU13811)
2	24M7241	24	Washer	(C) 17 X 34 X 4 MM, (SUB FOR T19584 AND T40728) (USE WITH AU13811)
3	T29887	8	TOOTH	(C) (SUB FOR U16086)
4	TP160	8	Pin	(C) (SUB FOR T25101)
5	-	8	Part 5	(C) (SUB AT65137)
6	10H1157	8	BOLT	(C) 5/8" X 3-1/4", (USE WITH AU13811)
7	19H3244	2	Cap Screw	(C) 5/8" X 2-1/4", (USE WITH AU13811)
7	19H2008	6	Cap Screw	(C) 5/8" X 1-5/8", (USE WITH AU13811)
8	T35567	1	DURA-MAX TM CUTTING EDGE	(A) 25.4 MM (1") THICK
9	T57499	1	CUTTING EDGE	(A)
10	U44332	2	BUSHING	(A)
11	10H1047	13	Bolt	(A) 3/4" X 2-1/4"
12	T31148	2	CUTTING EDGE	(A)
13	12H236	13	Lock Washer	(A) 3/4"
14	14H794	13	Nut	(A) 3/4"
15	T57501	1	CUTTING EDGE	(A)
16	T162396	2	Lubrication Fitting	(A) (SUB FOR JD7759 OR JD7798)
17	AT23836	2	PIN FASTENER	(A)
18	BP12214	4	Lock Nut	(A)
19	19H1868	2	CAP SCREW	(A) 1/2" X 3-3/4"
20	U44915	1	Lock Nut	(A) (SUB FOR BP14495)
21	T39930	1	PIN FASTENER	(A) (BUCKET LINK TO BUCKET)
22	19H3170	1	Cap Screw	(A) 5/8" X 4-1/2"
23	T43026	2	PIN	(A)
24	19H3586	2	Cap Screw	(A) 1/2" X 4-1/4"
25	T58510	2	Bushing	(A) (SUB FOR U44332, THIS APPLICATION)
26	-	1	Part 27	(AT65137 NO LONGER AVAILABLE)
27	24H1595	1	Washer	(A) 2-1/16" X 3" X 0.075"
28	AT55419	1	BLADE	(A)
29	AT57497	1	CLAMSHELL BUCKET	(A) WITH 25.4 MM (1") BUCKET CUTTING EDGE, (SUB AT58639) (SUB FOR AT55424)
29	AT58639	1	LOADER BUCKET	(A) WITH 25.4 MM (1") BUCKET CUTTING EDGE
30	JD7797	2	Lubrication Fitting	-
..	AT55417	1	LOADER BUCKET	(1.2 M3) MULTI-PURPOSE
..	AT65137	1	KIT	-
