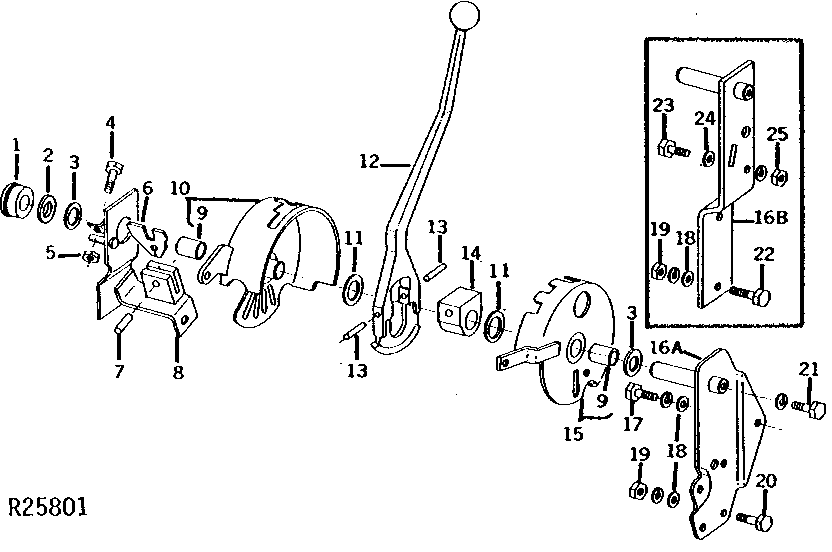

TRANSMISSION SHIFTER CONTROL SUPPORT, LEVER, AND LINKAGE (SYNCRO-RANGE) [03C23]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R62927	1	Spacer	(SUB FOR R50526 OR R56236) ALSO ORDER 24H1422
2	24H1422	1	Shim	0.018"
3	R42127	2	Washer	-
4	19H1849	1	Cap Screw	5/16" X 1-1/4"
5	14H611	1	Nut	5/16"
6	R52882	1	LATCH	-
7	34H348	1	Spring Pin	3/8" X 1"
8	AR62258	1	SUPPORT	(A)
8	AR62259	1	SUPPORT	(B)
8	R57449	1	Pin Fastener	-
9	R26182	1	Bushing	-
10	AR62069	1	QUADRANT	-
11	R26187	2	WASHER	-
12	R55553	1	LEVER	(SUB FOR R50523) (SUB R70535 AND R50864)
13	34H316	2	Spring Pin	1/4" X 1-1/2"
14	R53247	1	PIVOT	-
15	AR62066	1	QUADRANT	-
17	19H1731	2	Cap Screw	3/8" X 1"
17	12H304	2	Lock Washer	3/8"
18	24H1305	2	Washer	13/32" X 13/16" X 0.065"
19	14H1076	1	Nut	3/8"
19	12H304	1	Lock Washer	3/8"
20	19H2552	1	CAP SCREW	3/8" X 1-1/8"
21	19H1731	1	Cap Screw	3/8" X 1"
21	12H304	1	Lock Washer	3/8"
22	19H2128	2	CAP SCREW	3/8" X 3"
23	19H2552	1	CAP SCREW	3/8" X 1-1/8"
24	24H1305	1	Washer	13/32" X 13/16" X 0.065"
25	14H1076	1	Nut	3/8"
25	12H304	1	Lock Washer	3/8"
16A	AR56230	1	SUPPORT	(A)
16B	AR54659	1	SUPPORT	(B)

TRANSMISSION SHIFTER CONTROL SUPPORT, LEVER, AND LINKAGE (SYNCRO-RANGE) [03C23]
