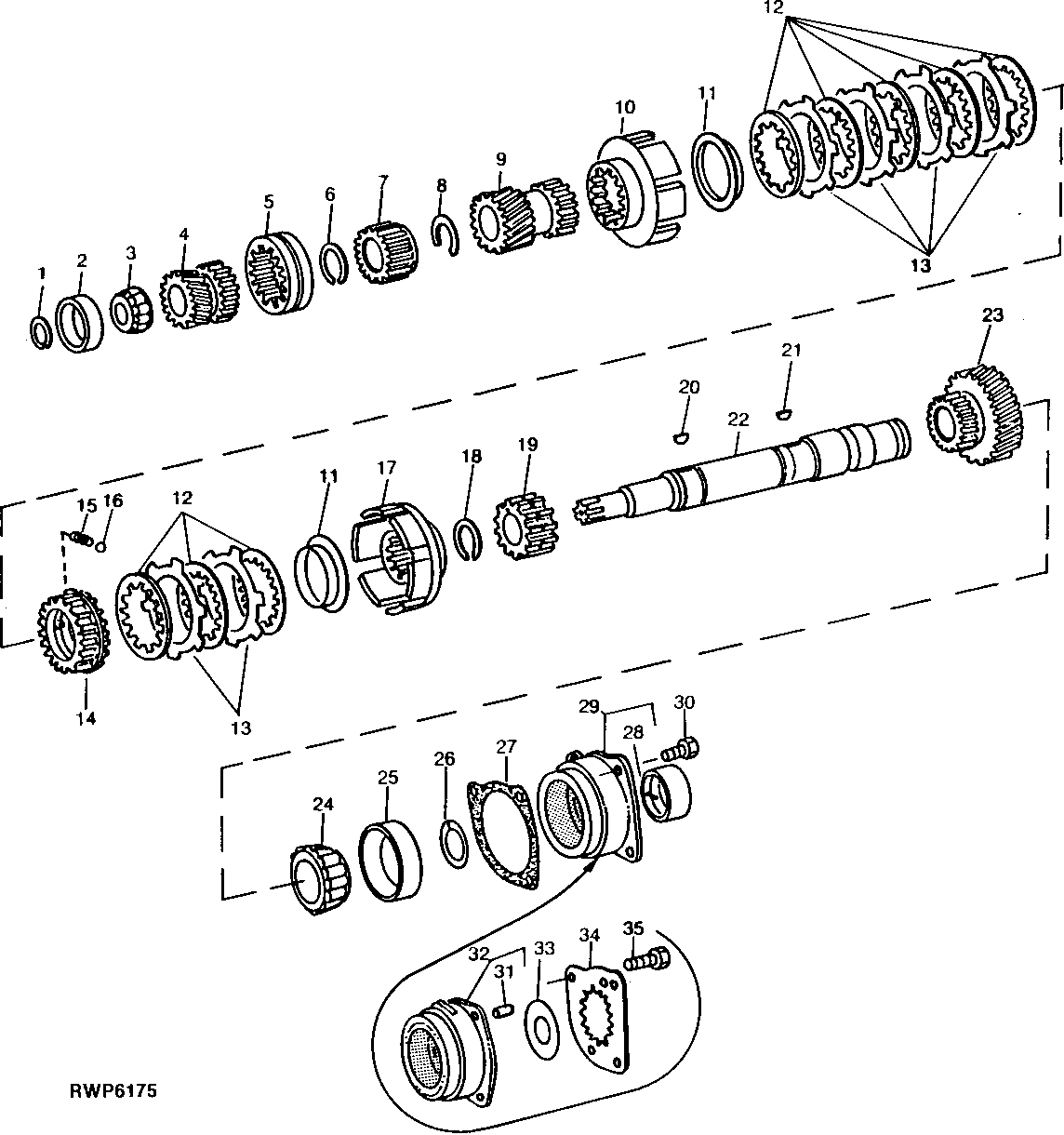

TRANSMISSION DRIVE SHAFT ASSEMBLY (QUAD-RANGE AND SYNCRO-RANGE) (TRACTOR SERIAL NO. 066738- ) [03C07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R35165	1	Snap Ring	2.01MM (.079")
1	R35164	1	SNAP RING	1.93MM (.076")
1	R35167	1	SNAP RING	2.16MM (.085")
1	R35166	1	SNAP RING	2.08MM (.082")
2	JD8291	1	BEARING CUP	-
3	JD7232	1	BEARING CONE	-
4	R63974	1	PINION	-
5	R62993	1	SHIFT COLLAR	-
6	R26218	1	Snap Ring	-
7	R50603	1	SHIFT COLLAR	-
8	R46405	1	SNAP RING	-
9	R59613	1	PINION	(A)
9	R59829	1	PINION	(B)
10	R63073	1	BRAKE DRUM	-
11	R63070	2	ROUND RETAINER	-
12	RE36170	8	Disk With Inner Spline	(SUB FOR AR77819)
13	R63069	6	CLUTCH PLATE	-
14	RE227962	1	Synchronizer	(SUB FOR AR77817)
15	R63074	4	SPRING	-
16	R63075	4	Ball	5.558 MM (7/32")
17	R63072	1	DRUM	-
18	R46404	1	SNAP RING	-
19	R62807	1	SHIFT COLLAR	-
20	26H74	2	Shaft Key	3/16" X 5/8"
21	26H77	2	Shaft Key	3/16" X 3/4"
22	R50843	1	SHAFT	-
23	R46119	1	PINION	-
24	JD9047	1	BEARING CONE	-
25	JD8236	1	Bearing Cup	-
26	R26214	1	SNAP RING	1.93MM (.076") (SUB R49430)
26	R26215	1	SNAP RING	2.01MM (.079") (SUB R49431)
26	R26216	1	SNAP RING	2.08MM (.082") (SUB R49432)
26	R26217	1	SNAP RING	2.16MM (.085") (SUB R49433)
27	R26234	1	SHIM	0.25MM (.010")
27	R26233	1	SHIM	0.15MM (.006")
28	R50222	1	Bushing	(B)
29	AR54442	1	HOUSING	(MARKED R53628 OR R50221)
30	R57725	3	Screw	-
31	R39253	2	DOWEL PIN	(C)
32	AR64941	1	HOUSING	(C) (MARKED R55548)
33	R55546	1	WASHER	(C)
34	R55658	1	PLATE	(C)
35	R41041	3	CAP SCREW	(C)
..	RE227977	1	SYNCHRONIZER	(SUB FOR AR77816) SYNCHRONIZER REPAIR
..	RE228724	1	Transmission	(D) (E) (SUB FOR AR77816)

TRANSMISSION DRIVE SHAFT ASSEMBLY (QUAD-RANGE AND SYNCRO-RANGE) (TRACTOR SERIAL NO. 066738- ) [03C07]
