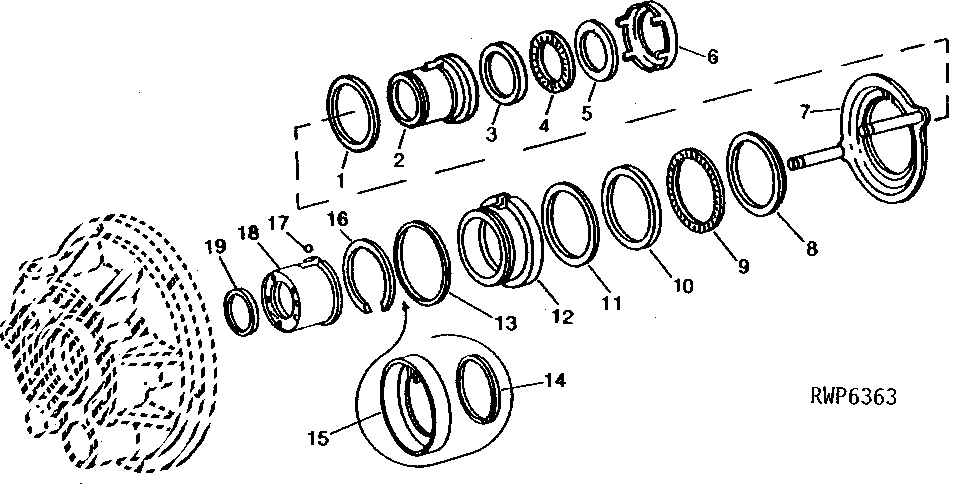

TRANSMISSION AND PTO CLUTCH OPERATING PISTON (QUAD-RANGE AND SYNCRO-RANGE) [03B14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R58588	1	WASHER	(SUB R65551)
1	R65551	1	PACKING	-
1	R52910	1	PACKING	(SUB R65549)
2	R50854	1	PISTON	-
2	R61400	1	PISTON	-
3	JD9916	1	Bearing Race	-
4	JD9918	1	Bearing	-
5	R51340	1	Bearing Race	-
6	R51365	1	Retainer	-
7	AR56116	1	RETAINER	(A)
8	R51341	1	BEARING RACE	(A) (SUB R61386) (ALSO ORDER R61386, (3) R57031 AND (3) R56960 WHEN R51341 IS ORDERED FOR PARTS FOR TRACTORS PRIOR TO SERIAL NO. 017810)
8	R61386	1	BEARING RACE	-
9	JD9919	1	Bearing	(A)
10	JD9917	1	Bearing Race	(A)
11	R51352	1	WASHER	(A)
12	R50852	1	PISTON	(A) (SUB R62535)
12	R61398	1	PISTON	(SUB R65431) (ALSO ORDER R65432)
13	R52909	1	PACKING	(A)
13	R67067	1	PACKING	(SUB FOR R58587)
13	R65432	1	PACKING	(USE WITH R65431 OR R61398)
14	-	1	Part 21	(NOT REQUIRED)
15	-	1	Part 22	(NOT REQUIRED)
16	R52912	1	SNAP RING	-
17	400R	1	Ball	6MM (1/4")
18	R50853	1	SUPPORT	(SUB R62832)
18	R61399	1	SLEEVE	(SUB R62833)
18	R62833	1	SLEEVE	-
19	R65550	1	Packing	(SUB FOR R52911)

TRANSMISSION AND PTO CLUTCH OPERATING PISTON (QUAD-RANGE AND SYNCRO-RANGE) [03B14]

Нет текстового описания
