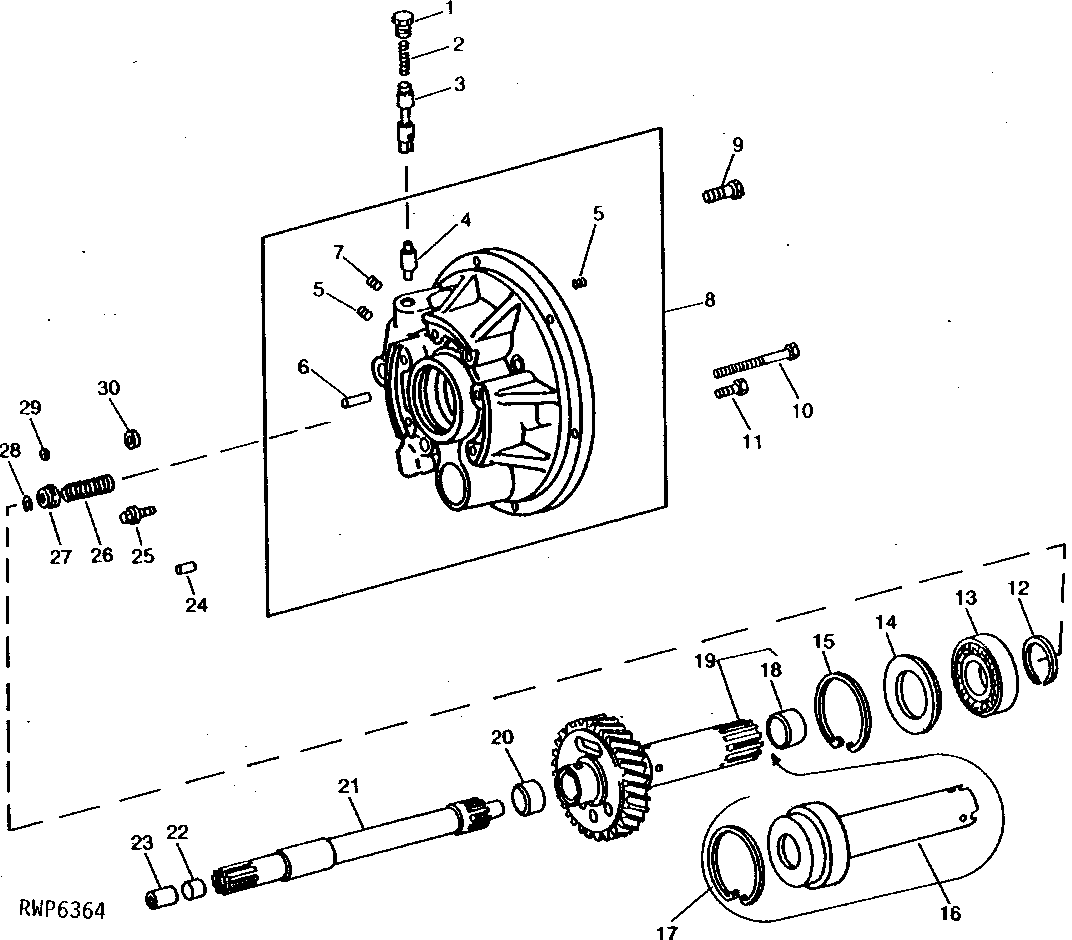

TRANSMISSION AND PTO CLUTCH OPERATING PISTON HOUSING (QUAD-RANGE AND SYNCRO-RANGE) [03B15]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R41155	1	Fitting Plug	-
2	R50259	1	Spring	-
3	R61659	1	Valve	(ALSO ORDER R61660) (SUB FOR R51351)
4	R61660	1	Pin Fastener	(ALSO ORDER R61659) (SUB FOR R53245)
5	15H558	1	Pipe Plug	1/8"
6	R57442	1	Needle Roller	(SUB FOR R27145, THIS APPLICATION)
7	15H559	1	Pipe Plug	1/4"
8	RE10530	1	HOUSING	(D) (MARKED R63744) (ALSO FURNISH RE20724, R63744, R1932R, (3) R42849, (5) 15H558, 15H559 AND R55425) (SUB FOR AR78059)
8	AR61917	1	HOUSING	(D) (MARKED R50301 OR R63742) (SUB AR78060 AND R61659, THIS APPLICATION)
8	R21629	1	PIPE PLUG	(B) (C) (SUB 15H560)
8	AR77396	1	HOUSING	(B) (C) (MARKED R62744 OR R61397) (SUB RE10531 AND RE20724) ( RE193239 USED PART)
8	AR61917	1	HOUSING	(B) (C) (MARKED R50301 OR R62742) (SUB AR77397 AND R61659, THIS APPLICATION) ( RE193236 USED PART)
9	R41041	4	CAP SCREW	-
10	R51383	5	SELF-LOCKING SCREW	(B)
10	R51383	3	SELF-LOCKING SCREW	(D)
11	R41041	2	CAP SCREW	-
12	R36295	1	Snap Ring	-
13	JD8735	1	Ball Bearing	(A)
14	R52988	1	Washer	(A)
15	R70607	1	Snap Ring	(LESS PTO) (SUB FOR R53107 OR R68956)
16	AR62064	1	ADAPTER FITTING	(LESS PTO) (NLA)
17	R70607	1	Snap Ring	(A) (SUB FOR R53107 OR R68956)
18	R50863	1	Bushing	(A)
19	AR54963	1	DRIVE SHAFT	(A) (B) (C) (MARKED R50861)
19	AR65131	1	DRIVE SHAFT	(A) (D) (MARKED R55655) (INCLUDES R34328 AND R50863)
20	R34328	1	Bushing	(A) (D)
21	R50154	1	SHAFT	(B) (SUB FOR R77309, THIS APPLICATION)
21	R50625	1	SHAFT	(C)
21	AR65533	1	SHAFT	(D) (INCLUDES R39276)
22	R39276	1	BUSHING	(D)
23	R50155	1	Bushing	-
24	R1932R	1	Dowel Pin	-
25	AR61146	5	Screw	-
26	R50258	2	SPRING	(A)
27	R62955	2	Retainer	(A)
28	R26548	2	SNAP RING	(A)
29	R60038	1	Packing	-
30	R26919	1	WASHER	-

TRANSMISSION AND PTO CLUTCH OPERATING PISTON HOUSING (QUAD-RANGE AND SYNCRO-RANGE) [03B15]
