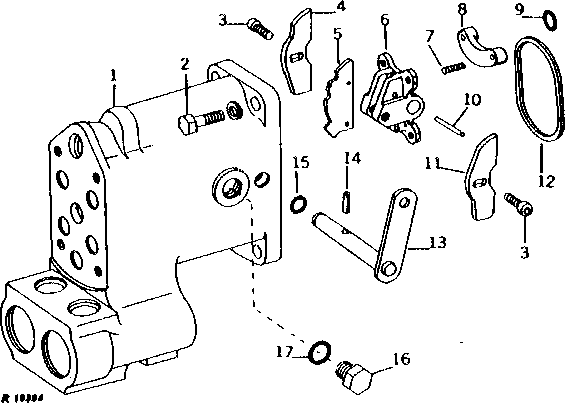

SELECTIVE CONTROL VALVE HOUSING, ROCKER, AND OPERATING CAMS (SERIAL NO. -072343) [04F16]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR82572	1	HOUSING	(MARKED R65284)
1	AR40827	1	HOUSING	(MARKED R40499) (SUB AR82572, R59629, R66916, R49187, R27166, R41057, (2) R65501 AND (2) R65502)
2	19H2500	1	CAP SCREW	7/16" X 1-3/8", (4 USED SINGLE) (7 USED DUAL) (11 USED TRIPLE)
2	19H2500	1	CAP SCREW	7/16" X 1-3/8", (3 USED SINGLE) (7 USED DUAL) (11 USED TRIPLE)
2	19H2055	1	CAP SCREW	7/16" X 2-1/4", (DUAL AND TRIPLE)
2	19H2253	1	Cap Screw	7/16" X 3-1/2", (SINGLE AND TRIPLE)
2	19H339	3	CAP SCREW	11.125 X 34.925 MM, (USE WITH AR76006) (DUAL)
2	19H1092	1	CAP SCREW	11.125 X 57.150 MM, (USE WITH AR76006) (DUAL)
2	12H293	1	Lock Washer	7/16", (4 USED SINGLE) (8 USED DUAL) (12 USED TRIPLE)
2	12H293	4	Lock Washer	11.113 MM, (USE WITH AR76006) (DUAL)
3	R27233	2	SCREW	-
4	R51414	1	CAM	(SUB AR253731)
5	R51413	1	CAM	(SUB AR253730)
6	R51412	1	ROCKER	-
7	22H1025	4	Set Screw	1/4" X 7/8"
8	R49221	2	RETAINER	-
9	F2741R	1	Packing	-
10	R28744	2	Pin	-
11	R51415	1	CAM	(SUB AR253733)
12	R40922	1	Back-Up Ring	-
13	AR54252	1	ARM	(SINGLE AND DUAL)
13	AR54253	1	ARM	(TRIPLE)
14	34H297	1	Spring Pin	7/32" X 1"
15	R65287	2	O-RING	-
16	R41155	2	Fitting Plug	-
17	R26375	2	O-Ring	-

SELECTIVE CONTROL VALVE HOUSING, ROCKER, AND OPERATING CAMS (SERIAL NO. -072343) [04F16]

Нет текстового описания
