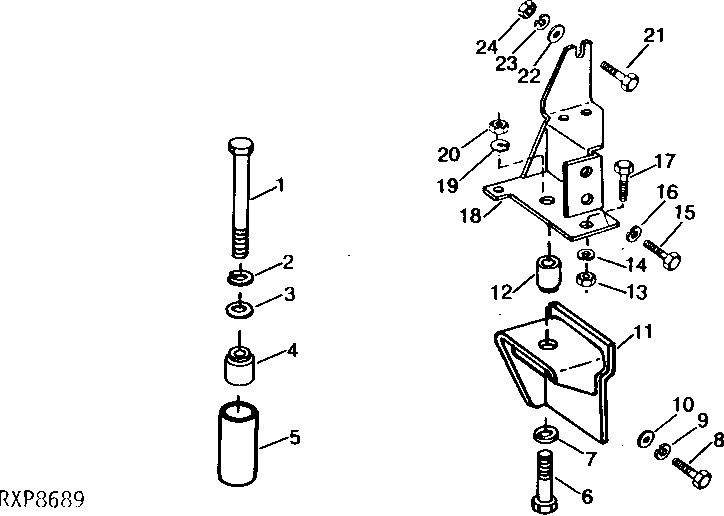

ROLL-GARD MOUNTING (FOUR-POST) [05C23]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R77720	4	Self-Locking Screw	(SUB FOR R50439 OR R54744)
2	12H236	4	Lock Washer	3/4"
3	R54124	4	Washer	-
4	R50246	4	ADAPTER FITTING	-
5	R50465	4	BUSHING	-
6	19H2725	2	Cap Screw	3/4" X 3-3/4"
7	R54124	2	Washer	-
8	R52524	4	SCREW	(SUB 19H3299, 12H301 AND R42408)
8	19H3299	4	CAP SCREW	1/2" X 1-1/4"
9	12H301	4	Lock Washer	1/2"
10	R42408	4	Washer	-
11	AR70854	1	BRACKET	R.H. (TRACTORS PRIOR TO SERIAL NO. 021982 ALSO ORDER (2) 19H3299, (2) 12H301 AND (2) R42408)
11	AR70853	1	BRACKET	L.H. (ALSO ORDER (2) 19H3299, (2) 12H301 AND (2) R42408) (SUB FOR AR54420)
12	R53711	2	SPACER	-
13	14H1040	2	Nut	1/2"
14	12H301	2	Lock Washer	1/2"
15	19H1815	4	Cap Screw	1/2" X 1-1/4"
16	12H301	4	Lock Washer	1/2"
17	19H1815	2	Cap Screw	1/2" X 1-1/4"
18	AR84566	1	BRACKET	R.H. (SUB FOR AR55331 OR AR72480)
18	AR84567	1	BRACKET	L.H. (SUB FOR AR55332 OR AR72479) (SUB RE37512)
19	12H236	2	Lock Washer	3/4"
20	14H794	2	Nut	3/4"
21	03H2070	2	Bolt	3/8" X 1-1/8"
22	24H1305	2	Washer	13/32" X 13/16" X 0.065"
23	12H304	2	Lock Washer	3/8"
24	14H1076	2	Nut	3/8"

ROLL-GARD MOUNTING (FOUR-POST) [05C23]
