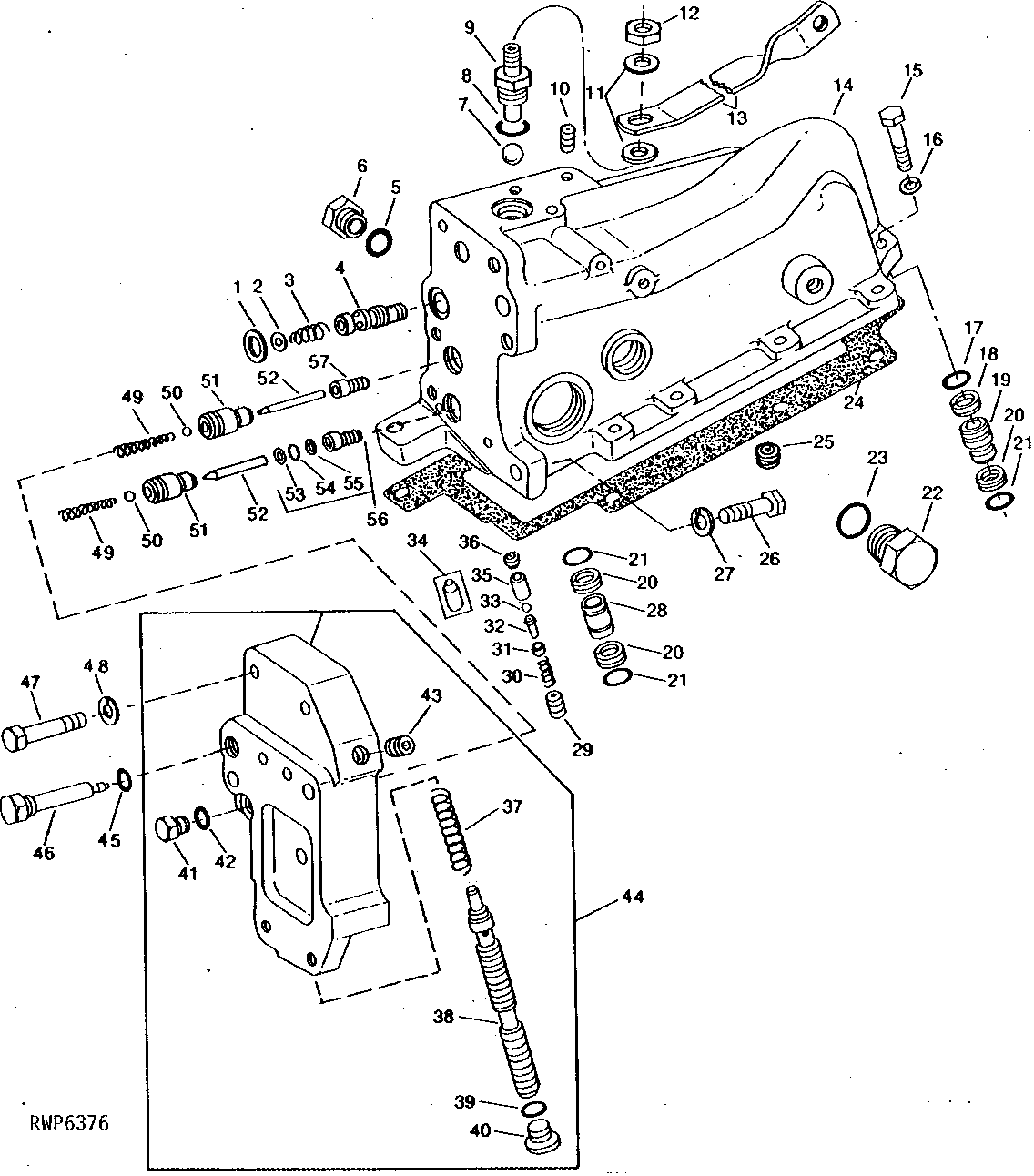

ROCKSHAFT CONTROL VALVE HOUSING (MODEL NO. 16RS-1) (TRACTOR SERIAL NO. 044905-052148) [04C24]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R26149	5	PACKING	-
2	B1664R	1	SHIM	-
3	R26566	1	SPRING	-
4	R51342	1	CONTROL VALVE	-
4	R43791	1	CONTROL VALVE	(LIFT ASSIST CYLINDER)
5	R26375	1	O-Ring	-
6	R39112	1	Fitting	-
7	M886T	1	Ball	16 MM (5/8")
8	R26906	1	O-Ring	-
9	R56916	1	PLUG	-
10	15H558	4	Pipe Plug	1/8"
11	R58230	2	LOCK WASHER	(A)
12	14H1040	1	Nut	(A) 1/2"
13	R58232	1	LINK	(A)
14	AR76340	1	HOUSING	(MARKED AR76277 OR AR94165)
15	19H1732	9	Cap Screw	3/8" X 1-1/4"
16	12H304	9	Lock Washer	3/8"
17	R27564	1	O-Ring	-
18	R45925	1	Back-Up Ring	-
19	R45924	1	BUSHING	-
20	R41057	3	BACK-UP RING	-
21	R27166	3	O-Ring	-
22	R27175	1	Drain Plug	-
23	F3171R	1	O-Ring	-
24	R40896	1	GASKET	-
25	R66895	1	Orifice	(USE WITH AR94165)
26	19H2500	1	CAP SCREW	7/16" X 1-3/8"
27	12H293	1	Lock Washer	7/16"
28	R40945	1	VALVE	-
29	R40894	1	ORIFICE	-
30	R59766	1	SPRING	-
31	R40895	1	SHIM	0.25 MM (.010")
32	R41777	1	PIN	-
33	R41776	1	BALL	2 MM (3/32")
34	R40893	1	VALVE SEAT INSERT	(SUB R61349 AND R61350)
35	R61350	1	BUSHING	-
36	R61349	1	VALVE SEAT INSERT	-
37	R28914	1	SPRING	-
38	R60096	1	VALVE	-
39	R26375	1	O-Ring	-
40	R33138	1	Fitting	-
41	R27094	1	Drain Plug	-
42	R26286	1	O-Ring	-
43	15H558	1	Pipe Plug	1/8"
44	AR73899	1	COVER	(MARKED R60081 OR R60334)
45	R26448	1	O-Ring	-
46	R60420	1	PLUG	(USE WITH AR94165)
47	19H1899	2	Cap Screw	7/16" X 2"
47	19H2227	2	CAP SCREW	7/16" X 2-1/2"
47	19H2500	2	CAP SCREW	7/16" X 1-3/8"
48	12H293	4	Lock Washer	7/16"
49	R59082	2	SPRING	-
50	400R	2	Ball	6 MM (1/4")
51	R59083	2	VALVE	-
52	R62336	2	SHAFT	(SUB FOR R59111)
53	R26976	1	O-Ring	-
54	R26977	1	BACK-UP RING	-
55	R41337	1	WASHER	-
56	AR78483	1	GUIDE	(PRESSURE) (SUB FOR AR31703)
57	R31024	1	GUIDE	(RETURN)

ROCKSHAFT CONTROL VALVE HOUSING (MODEL NO. 16RS-1) (TRACTOR SERIAL NO. 044905-052148) [04C24]
